What Will New York Look Like in 2040?

The first hint doesn’t come from a skyscraper. It comes from the sound beneath the pavement.

Long before another tower reshapes the skyline, before another observation deck opens or another neighborhood appears on postcards, New York is changing in places most people never see.

Deep beneath crowded sidewalks, tunnel-boring machines chew through ancient bedrock. Beneath rivers, engineers prepare routes that commuters may one day cross without giving them a second thought.

Across rail yards, enormous steel platforms quietly rise where trains continue rolling below. Along the waterfront, entire landscapes are being lifted higher, not to impress anyone, but to prepare for storms that haven’t arrived yet.

Then your eyes finally rise above the streets. Glass catches the morning sun where empty lots once lingered.

Cranes stand over Midtown like mechanical forests. Downtown’s skyline gains another chapter decades after many believed the story had already ended.

Airports, rail stations, parks, neighborhoods, and office towers are all being rewritten simultaneously. Individually they are ambitious projects.

Together they represent something much larger: a city attempting to reinvent itself without ever pressing pause.

If these plans succeed, New York in 2040 may feel remarkably familiar while functioning in ways that today’s visitors can barely imagine.

The transformation is already underway. Perhaps nowhere captures that idea more clearly than Lower Manhattan.

For years, visitors arriving at the World Trade Center encountered a curious absence. Around it stood gleaming towers, a transportation hub unlike any other in America, memorial pools visited by millions, and office buildings that restored much of the skyline.

Yet one corner of the redevelopment remained strangely unfinished. Instead of another soaring skyscraper, there sat a temporary structure occupying a site that had waited through multiple architectural visions, changing economic conditions, and years of uncertainty.

That final missing piece is now expected to become 2 World Trade Center. Designed by Norman Foster, the proposed tower will rise approximately 374 meters above Manhattan.

Unlike many older office buildings that emphasized sheer height, this design incorporates outdoor terraces and greenery into the upper sections, softening its appearance while creating usable outdoor space high above the city.

Yet before construction can truly race skyward, engineers face a challenge hidden underground. The foundation supporting the future skyscraper was not poured yesterday.

It dates back to 2010 and was originally intended for an entirely different building design.

While architectural concepts evolved over the following decade, the massive concrete structure below street level remained in place, quietly waiting beneath temporary buildings and public spaces.

Now every section must be carefully inspected. Engineers have to confirm that years of exposure have not compromised critical components before integrating new steel framing into a footprint established long ago.

Rather than beginning with a blank canvas, designers must respect decisions made over a decade earlier, creating a modern skyscraper that literally grows from plans conceived in another era.

If construction proceeds as expected, completion is targeted for 2031, bringing the lengthy redevelopment of the World Trade Center site closer to the vision imagined after September 11.

Travel north into Midtown, however, and New York’s future begins telling an entirely different story.

Some projects seek closure. Others seek attention. Among the most talked-about proposals is a tower known simply as The Torch.

Standing approximately 314 meters tall in the Theater District, the building immediately separates public opinion.

Its uppermost feature was originally envisioned as a glowing architectural crown inspired by the flame held high atop the Statue of Liberty.

Later revisions simplified parts of the design, replacing portions of the original concept with a more restrained vertical element, but the project’s ambition remained unmistakable.

Inside the upper section lies perhaps its boldest attraction. Rather than another observation deck alone, visitors would experience a nearly 90-meter enclosed freefall ride descending through glass walls with Manhattan stretching below.

It blends architecture with entertainment in a way rarely attempted at this scale. Supporters argue that cities evolve by embracing bold ideas.

Critics wonder whether a thrill ride belongs atop one of Manhattan’s prominent skyscrapers. The debate extends beyond aesthetics.

Construction itself experienced significant turbulence after progress slowed dramatically during 2024 amid legal disputes and contractor-related challenges.

For a time, the future of the project appeared uncertain. Work resumed during 2025, restoring momentum and allowing the tower once again to rise above surrounding streets.

Whether New Yorkers ultimately embrace it remains another question entirely. Only a short walk away, another skyscraper approaches the future from the opposite direction.

Instead of attracting attention through spectacle, it demonstrates what modern structural engineering can accomplish when nearly every traditional assumption is reconsidered.

175 Park Avenue will climb to roughly 482 meters, placing it among the tallest buildings in the city.

Yet its greatest achievement may not be its height at all. Most skyscrapers conceal their structural skeleton behind glass.

This one proudly displays it. An intricate network of exterior steel columns wraps around the building’s façade.

Near street level the structural members cluster tightly together before gradually spreading apart as the tower ascends, then drawing inward again near the summit.

The arrangement is visually dramatic, but it also serves a practical purpose. Because much of the structural load shifts outward, interior office floors remain largely free of columns, creating expansive open spaces that tenants can configure with remarkable flexibility.

Beneath the surface, however, lies the true engineering puzzle. Directly below the site sits one of the busiest transportation corridors anywhere in North America.

Subway lines intersect with Metro-North rail infrastructure, much of it operating continuously throughout the day and night.

Those tunnels cannot simply be relocated. Instead, engineers must position deep foundations within narrow gaps between existing infrastructure while enormous steel transfer systems distribute the building’s weight across carefully selected support points.

In effect, the skyscraper functions almost like an enormous bridge spanning invisible obstacles below. Nearby, another project intends to stretch even higher.

350 Park Avenue is planned to reach approximately 488 meters, surpassing the height of the Empire State Building itself.

Achieving that elevation required developers to acquire unused air rights from neighboring landmark churches, allowing the project to legally occupy vertical space that otherwise would have remained unavailable.

Estimated at around $4.8 billion, it represents one of the most expensive office developments ever proposed in Midtown Manhattan.

Yet New York’s ambitions are no longer measured solely by individual towers. Increasingly, the city is experimenting with developments that reshape entire districts rather than single blocks.

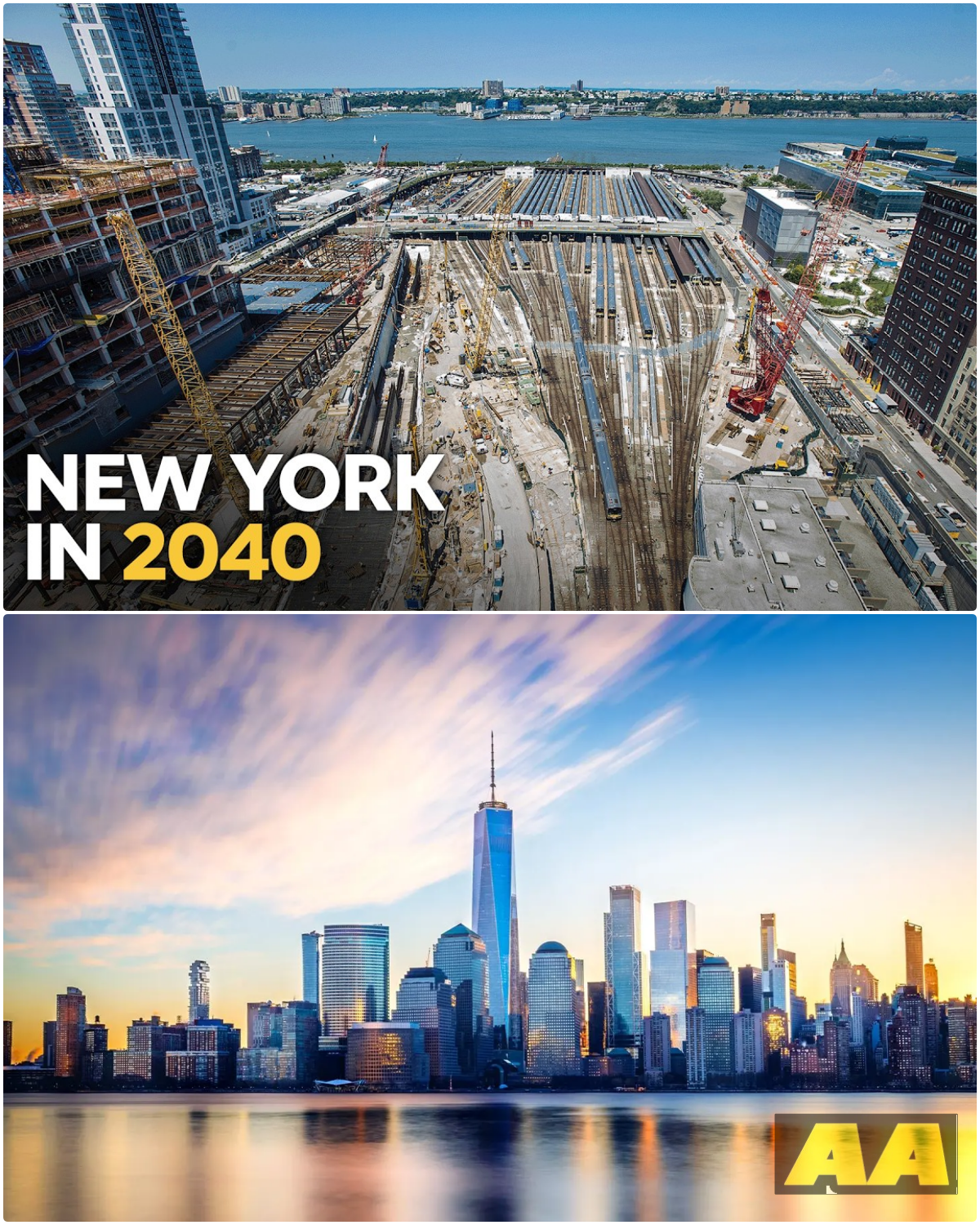

On Manhattan’s West Side, Hudson Yards Phase 2 continues one of the largest urban redevelopment efforts in American history.

The challenge begins with a simple reality. There is almost no conventional ground available. Instead, the neighborhood rises above an active rail yard where trains continue arriving and departing throughout every hour of the day.

Before apartments, offices, parks, or shops could even be imagined, engineers first had to construct an immense structural platform spanning the rail infrastructure below.

The platform itself carries an estimated price tag of roughly $2 billion. Only after solving that invisible engineering challenge could architects begin designing what people would eventually see above ground.

Current plans envision approximately 4,000 residential units alongside public green space, educational facilities, and commercial development.

Earlier concepts proposed nearly 5,800 apartments, but revisions reduced residential density while expanding other community features.

The result aims to create not merely another cluster of towers, but an entirely new neighborhood built where conventional city streets could never have existed.

By the time someone walks through Hudson Yards in 2040, they may never realize that beneath every sidewalk and plaza, hundreds of trains continue moving through the darkness below, supporting a city that somehow learned to build an entirely new one above it.

If Hudson Yards demonstrates how New York can invent new land above existing infrastructure, another project across the East River proves that even neglected ground can be transformed into something entirely different.

For generations, the section of Queens that will soon become home to Etihad Park carried a very different reputation.

Instead of sports fans and concerts, the landscape was dominated by scrapyards, repair facilities, industrial lots, and soil that had accumulated decades of contamination.

The area became so closely associated with industrial decline that many people connected it with the bleak landscape described as the Valley of Ashes in The Great Gatsby.

Before architects could even think about stadium seating or scoreboards, the land itself demanded attention.

Crews removed more than 200,000 tons of contaminated earth, a cleanup effort that reshaped the site from the ground up.

Even then, another obstacle remained. Years of unstable conditions had left sections of the land gradually settling, making conventional construction impossible for a venue expected to welcome tens of thousands of visitors.

Engineers answered with an invisible forest beneath the surface. More than 1,400 deep foundation piles were driven into stable ground, creating a rigid platform capable of supporting the massive structure above.

Today, the stadium’s outline is becoming increasingly recognizable. Lower seating sections have already taken shape, while the upper framework continues climbing skyward.

When completed, Etihad Park is expected to accommodate roughly 25,000 spectators, giving Queens another landmark while breathing new life into an area that once symbolized industrial decline.

Yet not every ambitious project begins with an empty site. Sometimes the greatest challenge is finishing an idea that generations have inherited.

The story of the Second Avenue Subway stretches back almost a century. In 1929, planners proposed a new line running beneath Manhattan’s East Side, promising relief for overcrowded subway routes.

It sounded like the kind of project destined to define the future of the city.

Reality proved far less cooperative. Construction eventually began during the 1970s, and portions of tunnel were excavated.

Then New York’s fiscal crisis changed everything. As the city approached bankruptcy in 1975, funding evaporated, construction halted, and partially completed tunnels disappeared behind sealed walls beneath the streets.

For decades, they remained hidden reminders of an unfinished promise. Residents continued waiting while traffic grew heavier and neighborhoods remained underserved.

Elevated rail lines that once operated through East Harlem had already been removed decades earlier with assurances that modern subway service would eventually replace them.

Year after year, that replacement failed to arrive. Only in 2017 did the first completed section finally open, extending the Q line along Manhattan’s Upper East Side.

It marked a significant milestone, but it also represented only a fraction of the original vision.

Now Phase Two is moving ahead. Three additional stations are planned to extend service farther north into East Harlem, improving access for thousands of residents while shortening daily commutes.

Even so, the larger dream remains unfinished. The complete Second Avenue Subway was originally envisioned reaching much farther south through Manhattan, and large portions still lack funding or construction schedules.

Nearly one hundred years after the proposal first appeared on planning maps, the project continues to evolve one chapter at a time.

Elsewhere, another transportation initiative addresses a problem that many New Yorkers simply learned to accept.

Look at a map and Brooklyn and Queens appear almost inseparable. Their neighborhoods often sit only a short distance apart.

Traveling between them by rail has long told a different story. Instead of moving directly across borough lines, countless passengers have traditionally traveled into Manhattan first before transferring back outward.

It is a route that often feels surprisingly indirect despite the geography. The Interborough Express seeks to change that pattern.

Rather than carving entirely new tunnels beneath dense neighborhoods, planners identified an existing freight corridor stretching approximately 22 kilometers between Brooklyn and Queens.

Freight trains already use much of this alignment, quietly passing behind industrial properties, warehouses, cemeteries, and neighborhoods that many commuters rarely notice.

The proposal transforms that overlooked corridor into a major passenger connection. When completed, the line is expected to link seventeen existing subway routes while serving as many as 160,000 riders each day.

Travel times between many neighborhoods could drop dramatically, allowing trips that currently require complicated transfers through Manhattan to be completed in well under an hour.

Beyond engineering, the line also carries cultural significance. It directly links two of New York City’s largest Bengali communities, earning the informal nickname “Bangladeshi Express” among supporters who see it strengthening long-standing social and economic connections between neighborhoods.

Unlike most historic subway expansions, this one largely avoids Manhattan altogether, reflecting how New York’s future growth increasingly depends on improving travel between outer boroughs rather than funneling every journey through the city’s traditional core.

If transportation defines how a city functions, then few places influence New York more than Penn Station.

For decades, millions of travelers have hurried through cramped corridors beneath Madison Square Garden. Low ceilings, confusing layouts, limited natural light, and constant congestion turned one of America’s busiest transportation hubs into a place many people simply wanted to leave as quickly as possible.

The station performs an extraordinary job moving passengers. It rarely inspires affection. That may finally change.

A redevelopment estimated at approximately $7 billion aims to completely rethink the experience of arriving in Midtown Manhattan.

Designers envision spacious concourses filled with daylight, clearer circulation, expanded passenger areas, and architecture worthy of one of the world’s most recognizable cities.

Accomplishing that vision presents extraordinary logistical challenges. More than 1,000 trains pass through Penn Station every day across 21 tracks.

Suspending operations for several years simply is not an option. Instead, construction must unfold in carefully coordinated phases, often during overnight hours and weekends, while temporary structures support ongoing rail operations.

Engineers effectively have to rebuild portions of one of North America’s busiest transportation hubs while it continues serving hundreds of thousands of passengers.

Meanwhile, another debate continues above ground. Some proposals call for relocating Madison Square Garden, freeing valuable space that could dramatically expand the station and improve connections between rail services.

Whether that relocation ultimately occurs remains uncertain, but the discussion illustrates the scale of change planners are willing to consider.

Timing matters for another reason as well. Penn Station’s redevelopment is closely connected to the Gateway Program, one of the most consequential rail infrastructure projects in the northeastern United States.

As future tunnel capacity increases beneath the Hudson River, Penn Station must also expand its ability to receive additional trains.

Without coordinated improvements, new infrastructure elsewhere would simply funnel more congestion into an already constrained terminal.

Only a few blocks away, another aging transportation landmark faces a similar transformation. Since 1950, the Port Authority Bus Terminal has served as the primary gateway for regional bus travel into Manhattan.

Today, roughly 240,000 passengers move through the facility each day, making it the busiest bus terminal anywhere in the world.

Its importance has never been questioned. Its design often has. Dark interiors, limited circulation space, and decades of incremental modifications have left the building struggling to meet modern expectations.

The replacement strategy is remarkably ambitious because closing the terminal outright would create transportation chaos across the metropolitan region.

Instead, engineers first plan to construct a massive concrete deck above surrounding bus ramps. That elevated platform will temporarily function as an operational terminal while the existing structure is demolished and replaced nearby.

Only after the new terminal opens will the temporary facility undergo its own transformation. Rather than disappearing, the platform will become a public park, adding much-needed open space to Midtown while concealing transportation infrastructure beneath landscaped grounds.

The new terminal itself promises a dramatic departure from its predecessor. Glass-filled public spaces, significantly improved passenger circulation, expanded bus capacity, and modern facilities are intended to replace one of the least celebrated transportation experiences in the city.

Above the complex, new office towers are expected to help finance much of the redevelopment, illustrating once again how New York increasingly solves infrastructure challenges by combining transportation, commercial development, and public space into a single long-term vision.

The city’s transformation does not stop where the streets end. For millions of travelers, New York begins at an airport long before the skyline appears on the horizon.

That first impression has not always reflected the city’s global reputation. While New York remains one of the world’s great destinations, its primary international airport has often struggled to deliver an arrival experience worthy of that status.

Over the past several years, that has begun to change. LaGuardia underwent an extensive modernization that dramatically improved its reputation among domestic travelers.

Newark introduced its new Terminal A in 2023, offering a much more contemporary passenger experience.

Now attention has shifted to the region’s busiest international gateway: John F. Kennedy International Airport.

At the heart of that effort stands the new Terminal 1. Spanning approximately 242,000 square meters, the facility is designed not simply to replace aging infrastructure but to compete with leading international airports around the world.

Every element has been planned with the intention of making travel feel more intuitive and more connected to New York itself.

The entrance is supported by towering 27-meter columns inspired by the branching forms of trees.

Inside, public spaces are intended to feel open rather than crowded, while landscaped courtyards featuring massive stones transported from the Hudson Valley create an immediate sense of place.

Travelers passing through the departure hall will encounter what is expected to become the world’s largest split-flap display, blending nostalgic mechanical movement with modern technology while showcasing scenes inspired by New York.

Yet beneath those architectural features lies another engineering story. Running directly through the construction site is the AirTrain, the elevated railway that links airport terminals with parking areas and regional transportation.

Suspending that connection for years would have severely disrupted airport operations. Engineers found another solution.

Instead of relocating the railway, they enclosed approximately 274 meters of the active line inside a protective structural shell.

That temporary enclosure allowed construction crews to build around, above, and alongside trains that continued operating throughout the project.

The terminal quite literally rises around transportation infrastructure that never stopped functioning. The first phase is scheduled to welcome passengers later in 2026, while full completion is currently anticipated in 2030.

If airports represent New York’s front door, another project beneath the Hudson River may prove even more essential to the city’s future.

Every weekday, hundreds of passenger trains travel between New Jersey and Manhattan through two rail tunnels that have served the Northeast Corridor for more than a century.

Together they handle roughly 450 train movements every day, making them among the most heavily used passenger rail tunnels in North America.

Their greatest challenge arrived not with age alone, but with water. During Superstorm Sandy in 2012, saltwater flooded both tunnels.

Although service eventually resumed, the long-term consequences continued quietly beneath the river. Salt penetrated concrete, electrical systems, and steel components, accelerating deterioration in ways that could not simply be repaired during overnight maintenance windows.

Closing one tunnel for comprehensive reconstruction would force all traffic into the remaining tunnel, dramatically reducing capacity throughout one of America’s busiest transportation corridors.

That is why the Gateway Hudson Tunnel Project has become so significant. Rather than immediately repairing the existing tunnels, engineers are first constructing two entirely new tunnels running parallel beneath the Hudson River.

Once the new crossings begin carrying trains, the original tunnels can finally be taken out of service one at a time for complete rehabilitation without bringing regional rail traffic to a standstill.

Construction is already progressing. On the New Jersey side, crews have excavated an enormous launch area where tunnel boring machines will eventually begin their underground journey toward Manhattan.

These machines will slowly carve through layers of rock and sediment beneath one of the busiest waterways in the United States, creating new pathways that commuters may someday travel without realizing the extraordinary effort hidden beyond the train windows.

Current schedules anticipate the new tunnels entering service around 2035, securing one of the most important transportation links on the East Coast for generations to come.

Yet New York’s future depends on more than moving people efficiently. It also depends on adapting to a changing climate.

Along Manhattan’s eastern shoreline, another remarkable construction project challenges conventional thinking about flood protection. Many coastal cities respond to rising water by building visible barriers between neighborhoods and the waterfront.

Massive concrete walls provide protection, but they can also isolate residents from the landscapes that define their cities.

New York has chosen a different approach. The East Side Coastal Resilience Project raises East River Park itself, lifting large sections of the landscape approximately 2.5 to 2.7 meters above their previous elevation.

Rather than asking residents to live behind a towering seawall, engineers are effectively creating higher ground while preserving recreational space above it.

Within that elevated landscape lies an extensive system of reinforced concrete flood walls, underground infrastructure, and movable gates stretching for more than 940 meters.

During ordinary days, visitors will simply experience parks, sports fields, playgrounds, walking paths, and open green space.

When severe coastal storms threaten the city, hidden protective systems can be activated to help shield nearby neighborhoods.

Portions of the northern section have already reopened to the public, offering a glimpse of how climate adaptation and public space can exist together instead of competing for the same land.

Looking across all these projects together reveals something remarkable. None of them exists in isolation.

A new airport encourages international travel. Improved rail tunnels increase regional capacity. Penn Station prepares to receive those additional passengers.

New subway extensions strengthen neighborhoods within Manhattan. The Interborough Express creates connections that previously required inconvenient transfers.

Hudson Yards expands the city’s physical footprint above active rail infrastructure. New office towers accommodate future employment while residential districts continue growing around them.

Coastal resilience projects protect many of those investments from increasingly powerful storms. Each project supports another.

Each solves a different piece of the same enormous puzzle. Of course, cities rarely unfold exactly according to their master plans.

Budgets shift, political priorities change, legal challenges emerge, and construction schedules evolve. Some projects move ahead quickly while others spend years waiting for funding or approvals.

New York has experienced enough history to understand that ambitious visions often require patience measured not in months, but in decades.

The Second Avenue Subway reminds us of that reality. A proposal first introduced in 1929 continues advancing nearly one hundred years later.

The World Trade Center redevelopment illustrates another lesson. Completing a district can require generations of determination even after the most difficult moments have passed.

Perhaps that persistence defines New York better than any individual skyscraper ever could. The city has always rebuilt itself in layers.

Elevated railways gave way to subways. Waterfronts transformed into parks. Industrial districts evolved into neighborhoods.

Rail yards became foundations for entirely new sections of Manhattan. Infrastructure that once seemed permanent eventually yielded to new ideas shaped by changing technology, economics, and public needs.

By 2040, visitors may marvel at towers like 2 World Trade Center, 175 Park Avenue, 350 Park Avenue, or perhaps The Torch glowing above Midtown.

They may arrive through a dramatically different Penn Station or begin their journey inside JFK’s new Terminal 1.

They may cross the Hudson through tunnels that did not exist a generation earlier or travel directly between Brooklyn and Queens without detouring through Manhattan.

Many will admire the architecture. Few will think about the thousands of engineers, construction workers, planners, transit operators, architects, environmental scientists, and public officials whose work quietly made those experiences possible.

That is often how cities succeed. When infrastructure performs flawlessly, it almost disappears into everyday life.

A commuter simply boards a train. A family enjoys an afternoon in a waterfront park.

An international traveler lands at an airport without considering the extraordinary engineering surrounding the terminal.

Office workers enter towers supported above active rail networks without realizing that entire structural systems are carrying enormous loads through carefully engineered gaps beneath their feet.

The greatest achievement may not be creating spectacular new landmarks. It may be making one of the world’s busiest cities function just a little more smoothly than it did before.

If even most of these projects reach completion over the coming years, New York in 2040 will still be unmistakably New York.

The skyline will remain recognizable. The streets will still pulse with relentless energy. The familiar rhythm of trains, ferries, taxis, and pedestrians will continue defining everyday life.

But beneath that familiar surface, the city will be operating on foundations that scarcely existed at the beginning of the twenty-first century.

Its future is not arriving all at once. It is already being built, one tunnel, one station, one neighborhood, and one skyline-defining tower at a time.
