In the spring of 1940, inside the engineering offices of the Ford Motor Company in Dearborn, Michigan, a small team of designers was working on a problem that had nothing to do with automobiles.

The drawings spread across their desks were not chassis layouts or transmission schematics.

They were cylinder arrangements, valve timing diagrams, and supercharger calculations for something far more powerful than any engine Ford had ever built.

The men in that room were trying to do what the entire American aviation industry had so far failed to accomplish.

They were trying to beat the Rolls-Royce Merlin.

That ambition did not arrive without a reason.

Henry Ford had watched, with increasing frustration, as the British firm had positioned itself at the center of Allied aviation power.

The Merlin was already in the Supermarine Spitfire and the Hawker Hurricane, the two fighters that would soon define the Battle of Britain.

It was a 12-cylinder liquid-cooled masterpiece, producing over 1,000 horsepower in its early variants, and still climbing with each successive mark.

Ford had approached Rolls-Royce in the late 1930s about license production of the Merlin in the United States.

The British firm was not interested in handing over its crown jewel to an American manufacturer, and the discussions went nowhere.

What happened next said everything about Henry Ford’s character.

He did not walk away quietly.

He decided to build something better.

The project Ford assigned to his engineers was not a modest undertaking.

He wanted a 12-cylinder aircraft engine with the same displacement as the Merlin, but built to more advanced specifications and capable of greater output.

The target displacement was 1,650 cubic inches, which engineers wrote as the designation XV-1650.

From the beginning, the architecture was genuinely extraordinary for its era.

The engine was designed as a 60° V configuration with all aluminum construction throughout, the block, the heads, and the crankcase.

When Ford presented the XV-1650 to the United States Army Air Corps in 1941, the engineering reception was genuinely positive.

The men examining it understood what they were looking at.

In terms of specific output, thermal efficiency, and mechanical sophistication, it was arguably the most technically advanced aircraft engine that any American manufacturer had yet produced.

It incorporated design principles that the established American industry had not yet fully embraced, and it did so in an all aluminum package that offered a favorable power to weight ratio.

But technical admiration and a production contract were two entirely separate things, and the Army Air Corps was not in the business of being impressed for its own sake.

The engine competing against Ford’s design was the Allison V-1710.

This engine had been in continuous development since the early 1930s, and by the time Ford arrived with its challenger, the Allison had accumulated years of operational history, spare parts, stockpiles across dozens of depots, and a trained maintenance workforce that understood every bolt and bearing inside it.

It was not as technically sophisticated as the Ford design in several respects, but it was known.

The mechanics who serviced it had done so thousands of times.

The spare parts were already cataloged and distributed.

The supply chain was mature.

Switching to an unproven Ford engine, however brilliant, would have meant rebuilding that entire infrastructure from the ground up during a war that showed every sign of becoming global.

The Army Air Corps made the rational decision.

They stayed with the Allison.

Ford received no contract.

The XV-1650, with its 48 valves and its all aluminum engineering brilliance, went nowhere.

What Ford had also already done, in the certainty that the contract would be awarded, was purchase the tooling in commission.

The casting calls for production of the 12-cylinder engine.

That investment sat in Dearborn, representing a substantial sum of money and an enormous volume of specialized manufacturing capacity attached to an engine that had no customer and no future.

The disappointment at Ford was considerable.

The effort had been genuine, the engineering had been exceptional, and the result had been rejection on grounds that had nothing to do with the quality of the design itself.

Henry Ford had spent considerable resources attempting to enter the aviation business, and he had been turned away not because his product was inferior, but because the establishment had already chosen its path before he arrived.

While Ford’s rejected engine sat idle, United States Army was confronting a crisis of an entirely different kind on the ground.

By the middle of 1942, Sherman tank production was accelerating rapidly, and the engine situation was becoming a serious operational concern.

The standard power plant for the M4 and the M4A1 variants was the Continental built Wright R-975, a nine-cylinder air-cooled radial engine that had originally been designed for civil aviation purposes.

It produced between 350 and 400 horsepower, which was marginal for a tank approaching 35 tons.

More critically, the R-975 had a persistent and embarrassing problem that became apparent once the Sherman went to war in North Africa in early 1943.

The lower cylinder bank positioned at the bottom of the radial arrangement had a tendency to foul its spark plugs with oil that drained down under gravity whenever the engine was sitting idle.

In combat, when a Sherman crew might need to start quickly after a brief halt, those fouled plugs could mean a tank that simply would not fire to life.

For men fighting the Africa Korps and their Panzer III and Panzer IV tanks, that was not a theoretical concern.

It was a matter of survival.

The army had attempted to address the power shortage with the Chrysler A57 multibank engine, an arrangement that welded five separate Chrysler inline six-cylinder flathead blocks onto a common crankshaft.

The result was a 30-cylinder engine producing 370 horsepower, which was actually less than the radial it replaced in output terms, while being far more complex and nearly impossible to maintain in field conditions.

Reaching different sections of the engine required removing entire components to access others.

The mechanics who worked on it in the deserts of North Africa described the process with language that has not survived in published records, but was apparently vivid.

If the A57 found any favor at all, it was with the British, who accepted the M4A4 variants powered by this engine under lend-lease and learned to live with its limitations.

The United States Army never embraced it.

The Marines had received their own solution in the form of twin General Motors 6-71 diesel engines driving a common output shaft, which worked reasonably well and had the additional advantage of using diesel fuel, reducing the risk of catastrophic fire on the landing vessels that carried them ashore in the Pacific.

But the 6-71 installation was a different product, serving a different need, and it did not solve the army’s fundamental problem.

The army needed a single, powerful, liquid-cooled gasoline engine that could push a 35-ton tank across European terrain without fouling its plugs, without requiring a team of trained mechanics to service it, and without breaking down at the moment it was most needed.

In 1942, the decision was made to approach Ford with a proposal that nobody had anticipated.

The message from the army was essentially direct.

Ford’s 12-cylinder aircraft engine was not wanted, but a reliable, high-output eight-cylinder tank engine was urgently needed.

And since Ford had already built the tooling and casting calls for the 12-cylinder design, the engineers in Dearborn began examining the logical arithmetic of what the army was actually asking.

If you removed the rear four cylinders of a 12-cylinder engine, you were left with eight.

The 60° V angle remained unchanged.

The bore and stroke dimensions remained identical.

The dual overhead camshaft system could be adapted to the shorter block.

The gear-driven accessories, the dual ignition system, the all-aluminum construction, all of it carried over with relatively minor modification.

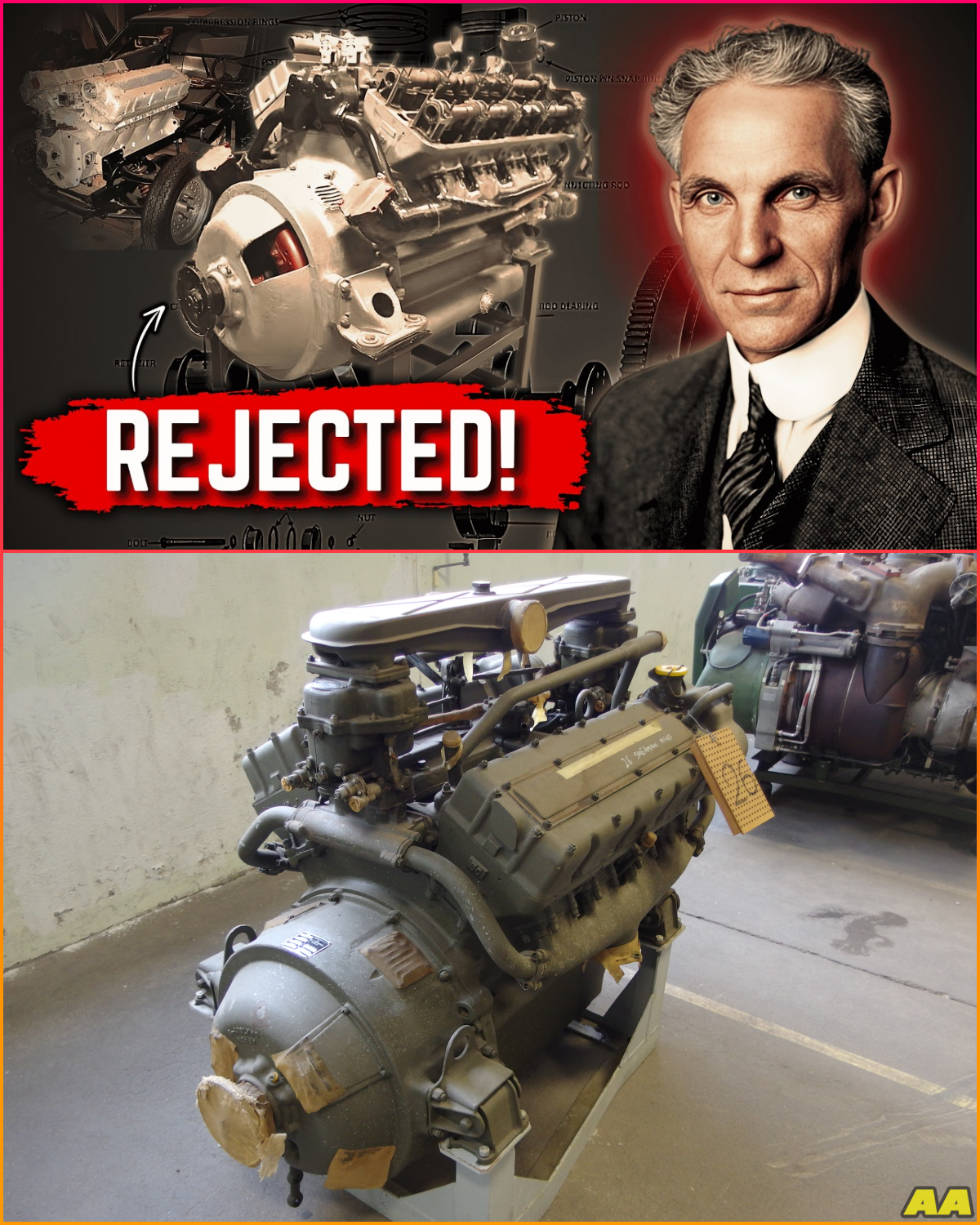

The engine that emerged from this calculation was the Ford GAA.

The displacement of the finished V8 was 1,100 cubic inches, which translates to 18 L of swept volume.

That figure alone placed it in a category entirely its own.

The GAA was and remains the largest all-aluminum gasoline-powered V8 engine ever produced.

Its bore measured 5.4 in, and its stroke ran 6 in, dimensions that gave each piston a travel distance that engine builders today would associate more with diesel industrial machinery than with any automobile or aircraft engine.

The block was cast in a single aluminum piece with hard steel dry type sleeves pressed into each cylinder bore to provide the wear surface that aluminum alone could not sustain.

The valve train retained all four overhead camshafts from the original 12-cylinder architecture, one intake and one exhaust cam per bank, driving 32 valves in total through precisely machined bucket followers.

There were no rocker arms.

There was no pushrod arrangement reaching up from a low-mounted cam.

The timing between intake and exhaust events was set in the camshaft profiles themselves, and was as close to race engineering as anything that left a production line in the United States during the 1940s.

Twin Stromberg carburetors fed the intake charge through a cross-flow induction arrangement that delivered the fuel air mixture from the outside of each cylinder bank inward toward the center of the engine while the exhaust exited outward.

The compression ratio was set at a conservative 7.5:1, calibrated to run reliably on 80 octane gasoline, which was the fuel available through military supply chains rather than the higher octane aviation fuel that would have allowed more aggressive tuning.

Despite this deliberate restraint, the factory rated output was 500 horsepower at 2,600 revolutions per minute with a governed maximum that kept the engine well below its structural limits.

The torque figure was extraordinary even at idle, over 1,000 lb feet of twisting force available from the very bottom of the power curve, the kind of low-speed grunt that could break a Sherman free from a mud bank or push it up a gradient that would have left lighter engines straining at the mechanical limits of their rods and pistons.

Because the engine had descended directly from an aircraft design, its internal assembly reflected aviation engineering standards rather than automotive ones.

Safety wire was threaded through the heads of critical fasteners throughout the engine, a practice from the aircraft industry that ensured no bolt or stud could vibrate loose during sustained operation.

The five piston rings on each forged aluminum piston, three compression rings and two oil control rings, were a specification more associated with high-performance racing engines than with production military hardware.

The flywheel weighed 198 lb, a mass deliberately chosen to smooth the firing impulses of the flat plane crankshaft across the engine’s operating range.

Ford’s engineers had understood that the crankshaft configuration they had chosen for its high-revving aircraft performance characteristics would need mechanical compensation at the lower speeds appropriate for tank use, and the heavy flywheel was the answer.

Everything about the GAA’s internal specifications pointed to an engine that was operating at a fraction of its designed capacity, doing tank work with aircraft engineering.

Production of the GAA began at Ford’s Lincoln plant on the west side of Detroit in 1942.

The factory had been retooled specifically for this engine, and the existing casting cores from the abandoned 12-cylinder program proved their value immediately.

Tooling that would otherwise have been written off as a failed investment began producing parts for a different engine.

One that actually had a customer.

The M4A3 Sherman, which received the GAA as its standard power plant, was assembled beginning in May of 1942, making it the first Sherman variant to move into production with this engine.

From the beginning, the army made clear which version of the Sherman it preferred.

The M4A3 with the Ford engine was retained for American use rather than sent to allies under Lend-Lease.

The M4A2, with its twin General Motors diesels, went primarily to the Soviet Union, whose crews gave it the affectionate nickname of Emcha and praised its ergonomic interior.

The M4A4, with the Chrysler multibank engine, went largely to the British.

But the M4A3 went to American armored divisions.

The reliability advantage that followed was measurable and significant.

Testing conducted during 1943 compared the service intervals and failure rates of the various Sherman engine configurations under operational conditions.

The M4A3 powered by the GAA achieved an average service life of 255 hours.

In a war where a tank might cover 60 miles in a single day of advance, the difference between an engine that lasted 255 hours and one that lasted 218 represented meaningful operational time in the lives of the men who depended on not being stranded in the open.

The contrast with German power plant engineering was even more striking.

The The HL 230, which powered the Panther and later marks of the Tiger I, was a 23-liter cast iron V12 producing approximately 700 horsepower.

On paper, those numbers appeared impressive.

In the field, the engine’s history was considerably less flattering.

The Panther was rushed into combat at the Battle of Kursk in July of 1943 before its mechanical issues had been resolved, and more than half of the Panthers committed to that offensive broke down through mechanical failure before enemy fire had any to affect the count.

The Maybach’s lubrication system was vulnerable to overheating under sustained high-speed operation, and the Panther’s final drive, a separate but related mechanical weakness, compounded the reliability problem by failing under the stress of the tank’s weight.

A post-war French military assessment of captured Panthers that the French army had briefly operated found the tank mechanically unreliable even under non-combat conditions.

The Tiger I’s own history with the Maybach HL 210, the earlier engine variant, was similarly troubled with documented reliability problems prompting warnings in the crew handbook against exceeding 2,600 revolutions per minute.

The Ford GAA, by contrast, was governed to that same speed not as a protection against mechanical failure, but simply because more power was not required for the weight class it was pushing.

The GAA also distinguished itself from the Maybach in construction philosophy.

The German engine used a cast iron block, which was heavier but considered more structurally conservative.

The Ford engine’s all-aluminum block was lighter, better at dissipating heat, and represented a more sophisticated manufacturing accomplishment that required tighter production tolerances.

Ford had achieved in a production military engine what most European manufacturers were still reserving for aircraft power plants.

The GAA weighed significantly less than the Maybach HL230 despite comparable displacement, and its lower center of gravity within the Sherman’s engine compartment contributed to the tank’s handling characteristics.

The engine also saw duty in the M10 tank destroyer, a lightly armored but fast vehicle mounting a 3-in gun on an open turret that served as a mobile anti-tank platform across every theater where American forces operated.

The GAA powered the M10 with the same ease it brought to the Sherman, and the tank destroyer crews who drove their vehicles in support of infantry across France and into Germany trusted that engine without reservation.

In combat, the M4A3’s superior engine reliability translated into operational availability.

A tank that ran was a tank that fought.

American armored units equipped with the GAA-powered Sherman could sustain tempo during extended operations in ways that German armored commanders, managing Panthers and Tigers that required careful handling to prevent mechanical breakdown, could not always match.

During Operation Cobra in July of 1944, which broke American forces out of the Normandy hedgerows and into open country, M4A3 units with the 76-mm gun variant began appearing alongside the earlier 75-mm armed tanks.

The mechanical stamina of the GAA allowed these units to sustain the pace of the breakthrough, covering ground that placed extraordinary demands on every mechanical component in the drivetrain.

The engine’s reach extended beyond the Sherman itself.

The GAA was adapted into two close variants that served across a broad family of American armored vehicles.

After the war ended in Europe and then in the Pacific, the army retained the M4A3 as its standard medium tank in preference to all other Sherman variants, and the GAA-powered machines continued to see service in American armored inventories for years afterward.

What happened when these engines reached civilian hands told a story that Ford’s original engineers would have understood immediately.

The GAA had been operating in the Sherman at a continuous fraction of its designed output.

The 500 horsepower and 2,600 revolutions per minute that the army governed it to were not the engine’s limits.

They were the numbers that the army needed.

When mechanics and enthusiasts began examining these engines in the late 1940s and the 1950s, they found an engine that still had an enormous amount of energy in reserve.

The first significant post-war discoveries came from the racing community.

Art Arfons, the legendary land speed racer from Akron, Ohio, who would later set multiple world records at Bonneville Salt Flats with his Green Monster jet-powered vehicles, had an early familiarity with the GAA in his work with various competition machines.

Racing mechanics who disassembled these engines in search of more power found that the internal components showed virtually no distress at the governed military outputs.

The forged aluminum pistons, the forged connecting rods, the oversized aluminum crankshaft bearings, all of it had been engineered for the power demands of a high-altitude aircraft engine and was sitting largely idle inside a tank running at 60% of its designed capability.

The first major horsepower barrier that engineers crossed with the GAA was 1,000 horsepower, which early modifications achieved with surprising ease by advancing the ignition timing, improving the exhaust flow, and using higher octane fuel than the 80-octane military specification had demanded.

At this output level, the stock internal components showed no signs of imminent failure.

The engine had been built with enough structural margin to handle double its rated military power without asking for anything in return.

Later, more ambitious builds began adding forced induction.

A supercharged or turbocharged GAA responded to boost pressure with the same composure that its original design had shown under atmospheric conditions.

The stock pistons were found to be reliable up to approximately 1,200 horsepower before the piston rings began to show stress.

Replacing the pistons and strengthening the valve springs while adding a turbocharger pushed reliably past 2,000 horsepower.

Post-war tractor pulling competitions, where modified agricultural machines competed to haul weighted sleds across measured distances using raw engine torque, became one of the natural homes for the GAA.

The engine’s extraordinary low-end torque output, the same characteristic that made it ideal for moving Sherman tanks through mud and over obstacles, translated perfectly to a competition discipline built around the ability to generate maximum pulling force at low shaft speeds.

In Brazil, where mechanical creativity in motorsport has a long and distinguished tradition, builders took the GAA further still.

A fully modified example using computerized coil ignition, direct fuel injection replacing the original Stromberg carburetors, and a twin turbocharger installation running moderate boost has been documented producing 1,500 horsepower while retaining overall mechanical integrity.

At higher boost pressures, outputs approaching 3,000 horsepower have been recorded, at which point the engine’s limits are determined by the specific components the builder chose to reinforce or leave standard, rather than by any fundamental weakness in the original architecture.

The flat plane crankshaft that Ford’s engineers had specified for its aircraft performance properties turns out to be precisely suited to the high output boosted applications that the post-war enthusiast community eventually discovered.

There is a detail in all of this that deserves attention because it says something specific and important about how the GAA came to exist.

The engine that powered the Sherman through Normandy, across the Rhine, and into the final campaigns of the war in Europe was running at perhaps half of what it was actually capable of producing.

Every Sherman that broke through an enemy position, every M26 that crossed the Remagen Bridge, every M10 tank destroyer that provided fire support for infantry, they were all powered by an engine that was holding back.

The military specification had deliberately constrained it because the army did not need aircraft horsepower in a medium tank.

It needed reliability, and it needed it to last.

The GAA delivered both with margins that even Ford’s engineers probably did not fully anticipate when they were cutting four cylinders off a failed aircraft program in 1942 and hoping the army would find it acceptable.

Henry Ford set out to build something that would embarrass Rolls-Royce and capture a lucrative contract with the Army Air Corps.

He failed at that goal completely.

The engine he built never flew.

No Spitfire killer or high-altitude bomber escort ever drew power from those 48 aluminum valves.

The contract went to the Allison, and Ford’s V12 went into storage.

But, the engineering that had gone into it, the gear-driven accessory train, the four-valve cylinder heads, the all-aluminum construction, the dual ignition system, the flat-plane crankshaft, the safety-wired internals, survived the rejection intact.

When the army came back two years later looking not for an aircraft engine, but for a tank engine, all of that engineering came with it.

The GAA did not conquer the air.

It conquered the ground instead, doing it in a machine that carried five men across 3,000 mi of the most contested terrain in history, starting every time they turned the key through mud and frozen fields and shattered city streets, never once giving those five crews a reason to doubt it or to wish for anything else.
