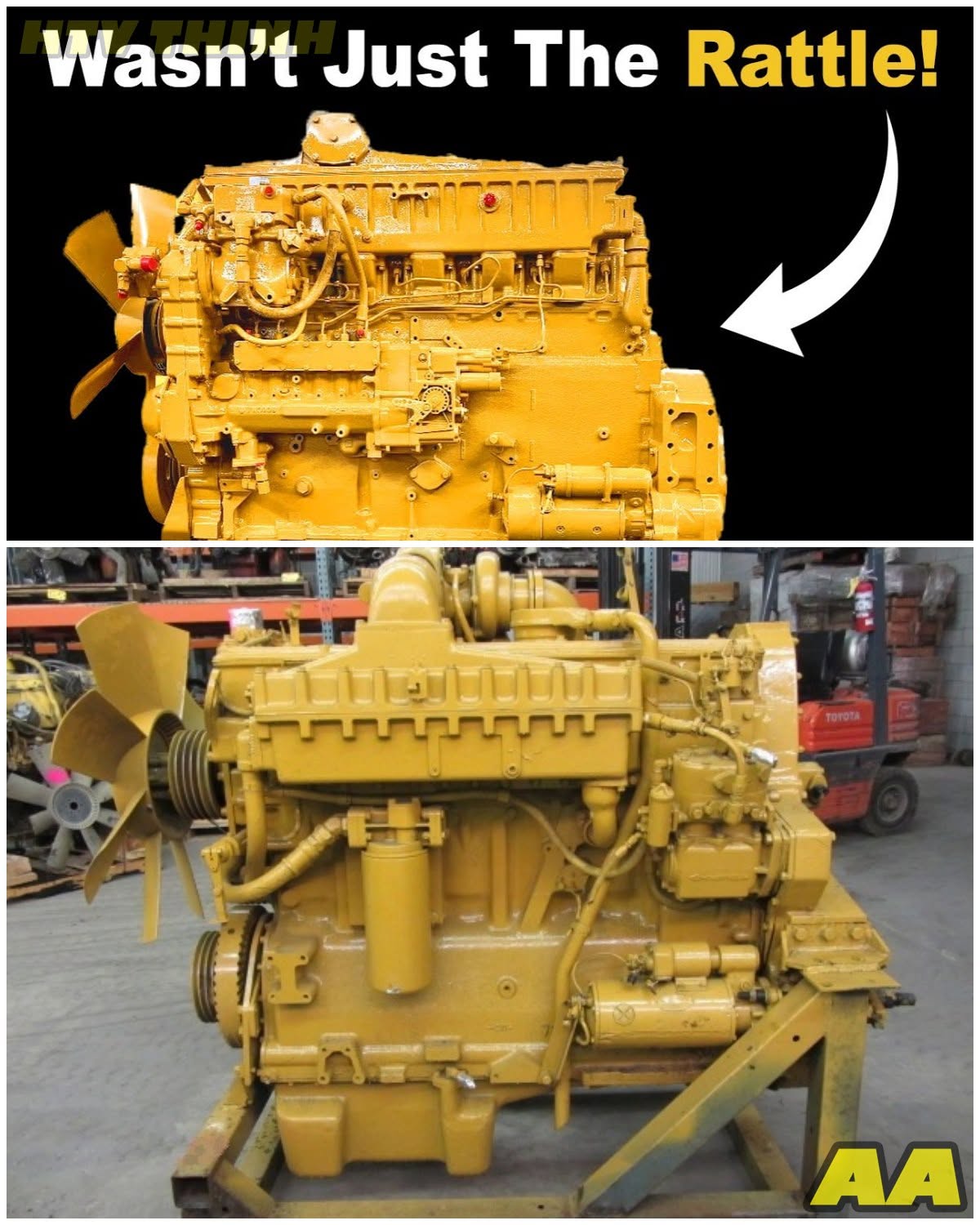

The Truth About the Legendary CAT 1693: A Mechanical Beast
The CAT 1693 engine was not designed for comfort or convenience; it was built to work.
In an era dominated by mechanical diesels, Caterpillar aimed to create an engine that could withstand the rigors of heavy-duty use, enduring hundreds of thousands of miles without faltering.
This bold approach resulted in one of the most iconic designs in the history of diesel engines.
At first glance, the 1693 might appear to be just another old-school diesel engine—an inline six, turbocharged, and constructed with the durability of a bank vault.
However, it featured several design elements that distinguished it from its contemporaries in the diesel world of the 1960s.
One of the most notable aspects of the CAT 1693 was its dual overhead camshaft (DOHC) setup, a rarity for heavy-duty truck engines at the time.
While most truck engines utilized a single camshaft buried in the block, the 1693 employed two camshafts mounted on top: one for intake and one for exhaust.
This innovative design allowed for more precise valve timing, improved airflow, and tighter tolerances across the board.
Essentially, it was race car technology applied to long-haul work.
Although this added complexity and weight, it ultimately enhanced the engine’s performance and reliability.
With twin cams driving large valves, the 1693 could breathe better than almost any other engine on the market.
It needed to, considering its impressive displacement of 893 cubic inches (14.6 liters) and the immense low-end torque it produced.
This power was perfect for hauling heavy loads up steep grades without the need for constant downshifting, a common requirement for many modern diesels.
Unlike many contemporary diesel engines that prefer to rev, the 1693 generated its power low and steady, catering to the preferences of old-school operators.
The inline six configuration contributed to its natural balance, typically resulting in a smoother operation than V8 engines of similar size.
However, “smooth” is not the term most drivers would use to describe the 1693; despite its balance, the engine shook vigorously, creating a distinct personality.
The sheer mass of its rotating parts, combined with its large turbocharger and traditional mounts, meant that the 1693 had a character all its own.
You didn’t just hear it; you felt it.
Internally, the CAT 1693 was entirely mechanical.
It employed a unit injector system, with injection timing determined by a dedicated camshaft lobe for each injector.
Fine-tuning of valve lash and injector settings was performed manually, often requiring a wrench and a feeler gauge.
There were no sensors, electronics, or computers to fail.
If something went wrong, you diagnosed the issue using your eyes and ears.
While this hands-on approach required more effort, it also provided operators with greater control over their engines.
You could adjust fuel delivery and governor settings without needing to connect a laptop or specialized diagnostic equipment.
However, the substantial steel construction came at a cost.
The 1693 tipped the scales at approximately 3,500 lbs when fully dressed, which was heavier than many modern V8 diesel engines combined with their transmissions.
Installing a 1693 in a truck necessitated reinforced motor mounts, additional bracing, and sometimes a reinforced front axle to maintain proper balance.
But for operators hauling 80,000 lbs through mountainous terrain, the weight was a worthwhile trade-off.
The turbocharger setup on the 1693 provided essential forced induction throughout its operational range, particularly under load.
While naturally aspirated variants of similar Caterpillar engines existed, the 1693 was almost exclusively turbocharged for roadgoing applications due to its high power targets.
The combination of the engine’s massive displacement and long stroke allowed the turbocharger to maintain power even at higher altitudes and under strain, making it ideal for use in the Rockies or northern regions.
Caterpillar also offered variants like the 1693 TA, which included aftercooling to help control intake temperatures and improve efficiency.
Yet, the real secret to the 1693’s performance lay in its precombustion chamber design.
Instead of injecting fuel directly into the main cylinder for immediate ignition, the engine first sent it into a small chamber where combustion began.
This initial burn then propelled the fuel into the main cylinder, pushing the piston down.
The result was cleaner combustion compared to direct-injected engines, contributing to reduced particulate matter and a softer combustion event.
This unique combustion process not only improved efficiency but also produced a distinctive sound that set the 1693 apart from other engines on the road.
The CAT 1693 didn’t purr or growl; it rattled.
The sound was sharp, metallic, and unmistakable, emerging from a combination of tight mechanical tolerances, the distinct pressure spikes of its two-stage combustion event, and the raw energy that felt more like a strike than a burn.
You could hear it coming long before it crested the hill, and once the engine turned over, you didn’t just hear it—you felt it.
This earned the engine the nickname “Rattlepillar,” a name that originated in truck stops rather than marketing meetings.
The rattle was not a single noise; it was a layered experience.
The combustion chamber contributed to the engine’s sharp edge, while the mechanical valve train and fuel injection system created a constant clicking sound, especially when the engine was cold.
Gear-driven components such as the timing gears, water pump, fuel pump, and air compressor all operated in tight synchronization but were far from quiet.
They howled, buzzed, and groaned under load, and every sound resonated through the cab.
The 1693 was not designed to keep quiet; it was engineered to perform, and the accompanying noise was simply part of the package.
The mounting setup for the 1693 did not help its case.
It was bolted in with stiff mounts that provided limited rubber isolation, resulting in minimal vibration absorption and little sound insulation in the cab.
When the engine was working, you heard every bit of it.
Long-haul drivers joked that you didn’t need a gauge to know how the engine was performing; you simply opened the vent, listened closely, and trusted your instincts.
The turbocharger also added to the auditory experience.
Unlike today’s turbos, which are tuned for smooth boosts and quiet operation, the 1693’s turbo sounded like it belonged on a farm implement.
When it engaged, it produced a high-pitched whistle layered over the already mechanical grind of the engine.
Since the engine was built for raw pulling power rather than fuel efficiency or refined acoustics, the turbo’s sound did not fade with speed; instead, it grew louder the harder the engine worked.
At idle, the entire truck shook.
Mirrors vibrated, dashboards flexed, and screws gradually backed out of trim panels.
Some drivers carried small toolkits to tighten everything back down during rest stops, while others simply accepted the rattle as part of the experience.
Despite the noise and vibration, drivers formed a connection with the 1693.
It provided constant feedback, allowing operators to feel what the engine was doing and hear how it was running.
Some experienced drivers could shift by sound alone, listening for the turbo’s whine, the rattle’s tone, and the vibrations through the seat.
It was not a subtle experience, but it was effective.
For all its brute strength and mechanical charisma, the CAT 1693 had flaws that couldn’t be overlooked, especially by those responsible for maintenance or footing the fuel bill.
Some issues stemmed from the very bold choices that made the engine stand out, while others were a consequence of its time, when emissions standards were lax and efficiency took a backseat to durability.
The most significant drawback was its complexity.
The dual overhead camshaft design, while powerful, added layers of intricacy that made maintenance more involved.
Valve adjustments were more complicated, and precise camshaft timing was essential; any oversight could lead to serious problems.
Mechanics accustomed to traditional pushrod diesels sometimes struggled with the layout, and neglecting maintenance could quickly lead to issues.
Furthermore, the mechanical complexity extended beyond the camshafts.
Everything was gear-driven and mechanical, meaning there were no diagnostic software, fault codes, or easy plug-in solutions.
If the engine misbehaved, operators had to troubleshoot the old-fashioned way, using gauges, wrenches, and experience.
This approach appealed to some operators but intimidated newcomers or shops unfamiliar with Caterpillar’s methods.
The vibration issue also warranted a second look.
While it was part of the engine’s character, the constant shake took a toll on surrounding components.
Bolts loosened, mounts wore out faster, and wiring fatigued.
Some drivers accepted the vibration as part of the experience, but over time, it increased the overall cost of ownership.
If operators didn’t stay ahead of the wear, the engine could start shaking its own truck apart, one bracket and wire at a time.
Cold starting was another challenge.
While the precombustion chamber design helped with smoother operation, it made the engine harder to start in cold weather.
Fuel needed to ignite in a small chamber before reaching the main cylinder, making it difficult to generate and retain enough heat for ignition during cold cranking.
In northern states and Canada, drivers relied heavily on ether, block heaters, or auxiliary methods to get the engine started.
If these methods failed, schedules could be thrown into disarray.
Fuel efficiency was not a strong point for the 1693 either.
Compared to direct-injected engines from competitors like Detroit Diesel or Cummins, the 1693 consumed more diesel under similar loads, particularly during long highway runs.
This was manageable when fuel prices were low, but by the late 1970s, rising costs began to impact the bottom line.
Fleet managers took notice, and the 1693’s fuel consumption did it no favors.
The weight of the engine also became a liability.
Weighing over 3,500 lbs, the 1693 placed significant stress on front axles and suspension systems.
As truck designs evolved to carry more payload with less curb weight, the 1693’s bulk became a disadvantage.
It often required reinforced mounts or custom brackets to maintain alignment, and while it delivered torque, that extra mass did not always equate to profit.
The most significant blow to the 1693 came from the industry itself.
As emission standards tightened in the late 1970s and early 1980s, older mechanical engines like the 1693 began to show their age.
The precombustion design was not ideal for emissions control, and the overall architecture made compliance challenging.
Caterpillar recognized the need for change and phased out the 1693 in favor of the more modern 3406 series.
While the 3406 initially retained mechanical controls, it was more efficient, better suited to new regulations, and easier to support.
Once the 3406 was introduced, support for the 1693 began to diminish.
Parts became increasingly difficult to find, and younger mechanics trained on newer platforms moved away from the older models.
Even Caterpillar seemed ready to move on, and by the late 1980s, the engine that once shook mountains was either being pulled from service or relegated to project status.
Despite this decline, the CAT 1693 was still respected among operators.
Many stood by it, even as it became a relic of the past.
However, respect does not always translate to profitability or compliance with emissions regulations.
By the time the CAT 1693 was phased out, it had earned a reputation as one of the toughest engines ever to hit the highway.
However, its story did not end with production cessation.
Today, decades later, the 1693 continues to find life in limited applications, particularly in rural and industrial settings where reliability is prioritized over compliance.
Some older logging trucks and oil field rigs still utilize the 1693, especially in regions with relaxed emissions enforcement or where operators can maintain their own fleets.
These engines are no longer daily drivers, but they remain viable choices for heavy hauling tasks.
More commonly, the 1693 is found in the hands of enthusiasts and vintage truck owners.
Many are preserved in private collections or under the hoods of show trucks, often restored Peterbilts or Kenworths from the 1970s, kept roadworthy but rarely used for heavy hauling.
Instead, they are cherished for short drives, truck meetups, or simply the joy of firing up the engine to hear that unmistakable rattle once again.
Online, the CAT 1693 has experienced a resurgence in popularity.
YouTube channels dedicated to diesel history, truck restorations, and cold starts have helped preserve its legacy.
Searching for startup videos reveals countless clips showcasing the engine’s raw sound and the thrill of a cold start.
For many viewers, especially those who grew up hearing the 1693, the sound alone evokes powerful memories.
While parts support has become more challenging over the years, a handful of aftermarket suppliers still produce gaskets, injectors, and rebuild kits.
Some engine shops specialize in vintage Caterpillar engines and keep essential components on hand.
However, sourcing replacements often requires scouring forums, auctions, and junkyards.
Rebuilding a 1693 is not inexpensive; a full overhaul can range from $10,000 to $25,000, depending on the engine’s condition and parts availability.
For many owners, though, the expense is justified.
They are not just maintaining a machine; they are preserving a significant chapter in diesel history.
For younger truckers, the 1693 may seem like a mystery.
It does not operate like modern diesels, nor does it sound or respond like them.
But for those who have driven or worked on one, it remains an unforgettable experience.
