The Rise and Fall of the CAT 3406: How CAT Lost the Highway
In 2010, Caterpillar Inc., a name synonymous with heavy machinery and powerful engines, made a shocking announcement that reverberated through the trucking industry.
After decades of dominating the on-highway engine market, the company decided to exit this sector, leaving behind a legacy of loyal drivers who had relied on their engines for some of the toughest hauls on American roads.
Among these legendary engines was the Caterpillar 3406, a powerhouse that promised truckers they could haul anything, anywhere, and always return home.
For years, this promise held true, but as the landscape of the trucking industry evolved, everything changed.
The Caterpillar 3406 was introduced in 1973, just as American trucking was on the brink of a major transformation.
The Motor Carrier Act of 1980 would deregulate the industry, unleashing a wave of independent operators who needed engines capable of withstanding the rigors of the road.
These were not corporate fleets with scheduled maintenance; these were owner-operators betting their livelihoods on machines that had to perform reliably day in and day out.
They trusted the 3406 because it was designed with rebuildability in mind.
An in-frame overhaul was straightforward, allowing mechanics to easily replace bearings, pull liners and pistons, set injector height, and time the fuel system without removing the block from the chassis.
Most accessories were gear-driven, which significantly reduced the risk of belt failures.
This design rewarded maintenance discipline, keeping trucks on the road earning money instead of waiting weeks for a complete replacement long block.
The 3406 was built specifically for this reality.
With a displacement of 14.6 liters, it was massive even by truck engine standards.
The inline 6-cylinder design featured a bore of 5.4 inches and a stroke of 6.5 inches, prioritizing low-end torque over high RPM horsepower.
The early 3406A utilized a mechanical fuel system with a mechanical governor, employing either pre-combustion or direct injection depending on the production year, all without electronic controls.
The simplicity of the fuel system allowed any competent diesel mechanic to rebuild it with basic tools, while its robustness ensured precise fuel metering under the most demanding conditions.
What truly set the 3406 apart was Caterpillar’s relentless focus on rebuildability.
The cylinder block was cast iron, thick enough to be bored out multiple times during overhauls.
The crankshaft was forged steel, balanced to tolerances that ensured smooth operation even after hundreds of thousands of miles.
Even the connecting rods were designed with enough material to be reconditioned rather than replaced.
The cylinder head design was equally robust, featuring mechanical lifters and push rods that could be adjusted with basic tools and would run for hundreds of thousands of miles with minimal maintenance.
The camshaft was gear-driven, eliminating potential timing issues and ensuring precise valve timing for optimal performance.
As deregulation took effect in 1980, the 3406 became a popular choice among independent truckers who required maximum reliability with minimal complexity.
Early power ratings ranged from 250 to over 400 horsepower, with the B and C series commonly producing between 350 and 465 horsepower.
However, the real selling point was not peak power; it was the engine’s ability to generate maximum torque at low RPM, exactly where heavy haul truckers needed it most.
Moreover, purchasing a CAT engine meant joining a dealer network that understood the trucking industry intimately.
Caterpillar dealers were not merely parts suppliers; they were partners who recognized that a broken-down truck equated to lost revenue, missed deliveries, and financial disaster for independent operators.
The dealer network stretched from coast to coast, with mechanics specifically trained on CAT engines.
The engine’s modular design allowed for improvements to be incorporated without abandoning the fundamental architecture that made it reliable.
This adaptability would prove crucial as the trucking industry evolved, demanding more power and better fuel economy.
The introduction of the 3406B in the mid-1980s represented the pinnacle of mechanical diesel engineering.
Caterpillar refined every aspect of the original design while maintaining the simplicity that truckers trusted.
Power ratings climbed into the mid-400s, but the improvements were primarily in the details that mattered to working drivers.
The B series featured an enhanced turbocharger system that resolved the mounting issues that occasionally plagued earlier engines.
The fuel injection system received upgrades with new nozzles that provided better fuel atomization and more complete combustion.
The mechanical governor was improved to deliver more precise speed control under varying load conditions.
During this golden era, the 3406 transcended mere machinery and became a cultural icon.
The distinctive yellow paint became a badge of honor in truck stops across America, where drivers would gather around CAT-powered rigs, sharing tales of mountain passes conquered and impossible deadlines met.
For many CAT drivers, there was an unspoken hierarchy in these conversations.
Other engines had their supporters, but CAT drivers occupied a special tier.
The premium associated with CAT engines was real and substantial, yet many truckers willingly paid it, believing that the CAT would outlast and outperform the competition.
This belief was bolstered by resale values that consistently favored CAT-powered trucks.
The mechanical simplicity meant that when problems did arise, they could usually be diagnosed and repaired by any competent diesel mechanic with basic tools.
The 3406C, introduced in the late 1980s, pushed the mechanical design even further.
Common highway ratings for the 3406C ranged from 375 to 465 horsepower, with some versions tuned for higher output in specialized applications.
The C series featured improved piston designs with better ring packages and enhanced skirt coatings that reduced friction and wear.
The cooling system was refined with upgraded water pump designs, while the fuel system saw further improvements with new injection designs that provided more precise fuel metering and better throttle response.
Additionally, the air intake system was redesigned with improved filtration, extending service intervals and enhancing engine protection in dusty conditions.
Another quiet advantage was Caterpillar’s scheduled oil sampling program, which allowed owners to trend wear metals, fuel dilution, and coolant intrusion.
Instead of guessing, truckers could identify issues such as soft bearings or weeping liner seals before they escalated into roadside failures.
This proactive approach enabled many 3406 engines to run past a million miles between major overhauls.
However, competition was fierce during this era.
Cummins had its Big Cam and later the N14 engines, which gained a reputation for fuel economy and reliability.
Detroit Diesel offered the Series 60 with electronic controls, promising better performance and diagnostics.
Both companies were gaining market share with aggressive pricing and promises of lower operating costs.
Yet, the 3406 held its ground through sheer reputation and proven performance.
Fleet managers might choose other engines for spreadsheet reasons, but for many owner-operators, the choice was simple: they believed CAT engines would last longer.
This belief was supported by real-world experiences with engines that many reported running beyond a million miles between major overhauls.
Truckers routinely shared stories of engines exceeding expectations for durability and reliability.
The mechanical simplicity meant that diagnosis followed logical principles.
If the engine wasn’t getting fuel, air, or compression, the problem could be traced through mechanical systems that any experienced mechanic could understand.
The dealer network mattered for uptime in ways that extended beyond just parts availability.
CAT dealers understood that truckers couldn’t afford extended downtime and prioritized getting broken trucks back on the road.
However, the beginning of the end came in 1993 with the introduction of the 3406E.
The “E” stood for electronic, representing Caterpillar’s attempt to modernize the 3406 for an era of increasing performance and tightening emissions regulations.
The 3406E was indeed highly capable, with common on-highway horsepower ratings ranging from the low 400s up to 550 horsepower.
It featured the electronic unit injection (EUI) fuel system for precise control and built-in electronic diagnostics that greatly aided troubleshooting.
However, in practice, the 3406E marked the beginning of the unraveling of Caterpillar’s legendary reliability.
The electronic fuel injection system replaced the mechanical simplicity that truckers had trusted with computer-controlled complexity that many did not understand.
The engine’s performance was now managed by an electronic control module that monitored dozens of sensors and made thousands of calculations per second.
When everything worked correctly, the 3406E was indeed more powerful and fuel-efficient than its mechanical predecessors.
The electronic controls could optimize performance for specific operating conditions, adjusting fuel delivery and timing for maximum efficiency or power as needed.
The diagnostic capabilities could monitor engine health and alert drivers to potential problems before they became catastrophic failures.
But when things went wrong, they went terribly wrong.
The issue was not merely emissions rules; it was repairability.
With the 3406E and its successors, failures shifted from easily fixable mechanical issues to sensor, harness, and ECM problems that parked trucks and required shop computers for diagnostics.
Downtime spiked, and independence was lost as drivers lost control over repairs.
Confidence eroded while rivals closed the gap on efficiency and support.
Roadside fixes that had once involved fuel system adjustments or mechanical governor tweaks became laptop diagnostics and code trees.
Limp mode events from sensor faults meant tows instead of on-the-spot repairs.
Harness chafing and connector issues replaced the wrenchable failures that mechanics had handled for decades.
The diagnostic systems that were intended to simplify troubleshooting often complicated matters, with error codes pointing to expensive components that were not actually faulty.
To many CAT drivers, this felt like a betrayal of everything the 3406 had represented.
The company that had built its reputation on mechanical simplicity and bulletproof reliability was now selling engines requiring computer technicians instead of diesel mechanics.
The relationship between driver and engine fundamentally changed.
Instead of understanding how their engine worked, drivers now had to trust electronic systems they couldn’t comprehend or repair.
Caterpillar’s Assert technology introduced advanced emissions controls with multiple injection events and exhaust gas recirculation, increasing maintenance complexity and leading to reliability challenges related to emissions.
Truckers who had sworn by CAT engines for decades began defecting to Cummins and Detroit Diesel.
The ISX and Series 60 engines weren’t perfect, but they had been designed from the ground up as electronic engines.
Their manufacturers had learned to create reliable electronic controls because they had no choice; they didn’t have a mechanical heritage to fall back on.
By the time Caterpillar exited the on-highway market in 2010, many owner-operators felt abandoned.
The announcement stunned an industry that had grown up with CAT power.
Truckers who had planned to buy CAT-powered trucks for the rest of their careers suddenly found themselves shopping for engines from companies they had spent decades dismissing as inferior.
While truckers felt abandoned, Caterpillar’s reputation in other industries remained unshaken.
The same engineering philosophy that had made the 3406 legendary in trucking found new purpose in applications where mechanical simplicity was still valued over electronic sophistication.
The 3406 continued to be widely used in marine applications, including commercial fishing vessels, tugboats, offshore supply boats, and specified by sport fish builders such as Hatteras and Viking.
The engine’s ability to produce strong low-end torque made it ideal for marine propulsion, where constant speed operation was more important than the variable loads of highway trucking.
Commercial fishing boats operating in harsh conditions relied on 3406 engines to power through heavy seas and maintain position in challenging weather.
Marine ratings focus on duty cycle rather than peak numbers; propeller load increases roughly with the cube of RPM, meaning engines live or die based on steady torque at sensible speeds.
The torque curve and heavy rotating assembly of the 3406 suited continuous and heavy intermittent ratings, with heat exchangers and aftercooling managing constant loads.
This combination, along with parts availability in major ports and support from sportfish builders, explains why so many 3406s found long second lives at sea.
The mechanical fuel injection that had become a liability in highway applications was an asset in marine use, where salt, air, and moisture could wreak havoc on electronic systems.
A fishing boat operating hundreds of miles from shore couldn’t afford to depend on computer diagnostics; they needed engines that could be repaired with basic tools by crew members with mechanical knowledge.
The 3406’s low-end torque characteristics were particularly valued in tugboat operations, where strong pulling power was essential for ship assistance and barge towing.
The engine’s reputation for reliability was crucial in applications where failure could result in maritime accidents or environmental disasters.
Construction and mining operations embraced 3406 power for similar reasons.
The constant dust, extreme temperatures, and heavy loads of these applications were precisely what the 3406 had been designed to handle.
In quarries and mines, where equipment might operate in conditions that would destroy lesser engines, the 3406’s robust construction and simple maintenance requirements made it a preferred choice.
The aftermarket support that had made the 3406 legendary in trucking continued to serve these industrial applications.
Caterpillar’s dealer network remained strong in construction and mining markets, providing parts availability and technical support.
The company’s commitment to supporting older engines meant that 3406s could be kept running for decades.
In these applications, the electronic controls that had proven problematic in highway use actually provided benefits.
The precise fuel metering of the electronic injection system improved fuel economy in constant load applications, while the diagnostic capabilities helped maintenance crews schedule repairs during planned downtime rather than waiting for catastrophic failures.

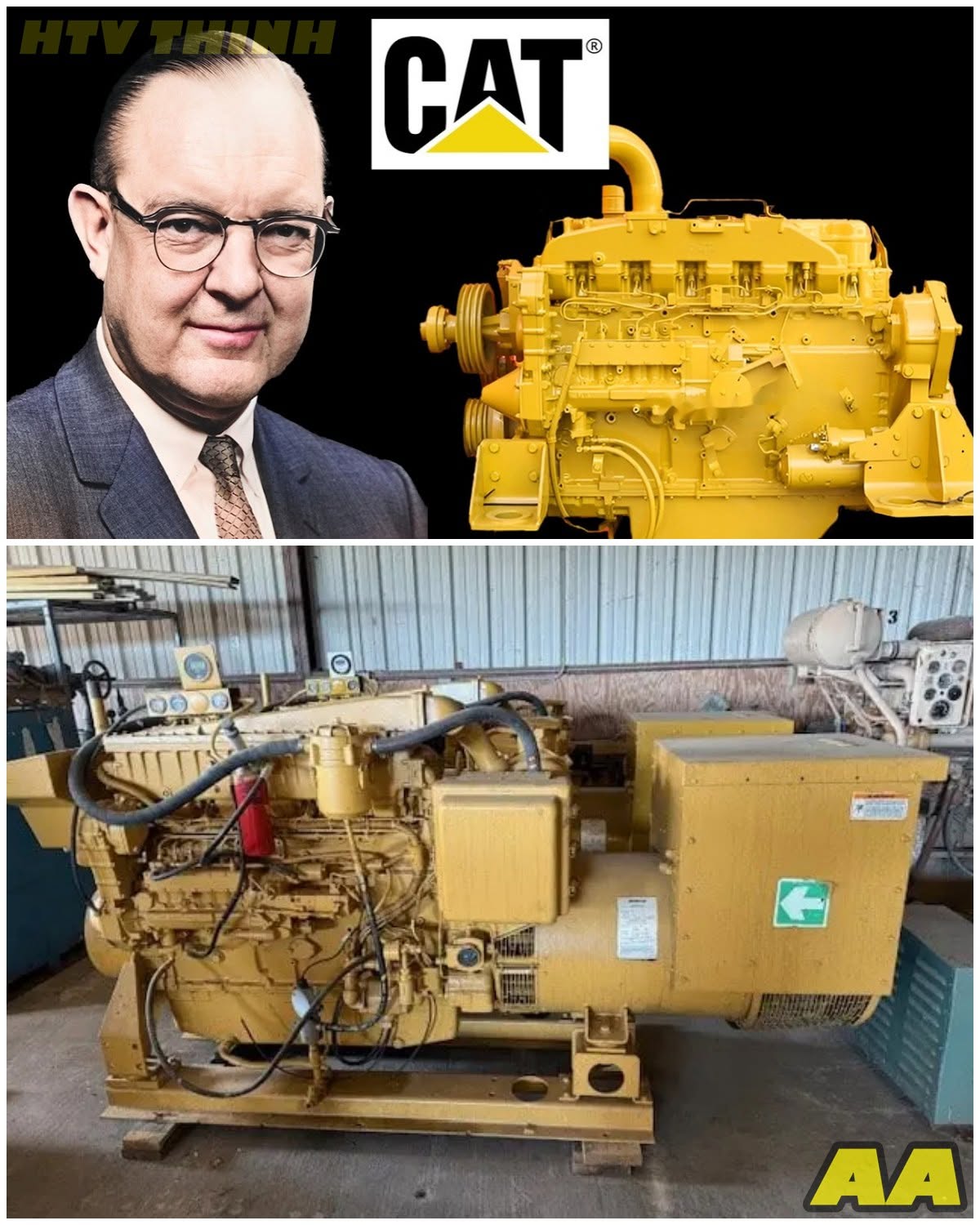

The 3406 found new purpose as the heart of emergency generators and standby power systems.
Hospitals, data centers, and other critical facilities relied on 3406-powered generators to provide backup power when the electrical grid failed.
The engine’s ability to start quickly and run at full load indefinitely made it ideal for these applications, where reliability was literally a matter of life and death.
The marine market proved particularly loyal to the 3406 platform.
Yacht builders continued to specify 3406 engines for large motor yachts, where the combination of power, reliability, and global service support outweighed any concerns about fuel economy.
Commercial operators valued the engine’s ability to run for thousands of hours per year while maintaining its reputation for durability.
