The Military’s Hidden Problem
In the early 1960s, the U.S. military faced a problem that they never publicly admitted.
Not in press releases, not in training manuals, but those on the ground knew it all too well.
The military’s reliance on gasoline engines in their vehicles was becoming increasingly problematic.
I remember asking, “Who’s in charge of Detroit Diesel?”
They told me it was Mr. Penske.
I approached him with urgency, stating, “Sir, your country needs that engine right now.”
Suddenly, something new began to appear in the motor pools.
It looked familiar, but it sounded sharper and louder.
Even seasoned mechanics who were accustomed to Detroit diesels did a double take.
By the 1960s, the Cold War had transformed the battlefield.
The Pentagon didn’t merely require another tank to hold the line; it needed vehicles that could transport troops, equipment, and firepower across rough terrain, all while under pressure and at speed.
At the time, most U.S. military vehicles were still powered by gasoline engines.
While these engines had served well in World War II and Korea, they were aging poorly.
Gas engines were hot, inefficient, and volatile under fire.
They required frequent maintenance, consumed fuel rapidly, and had a nasty tendency to catch fire when hit.
Every field mechanic knew the limitations, but until the late 1950s, there had been no solid alternative.
That changed when the military began to take diesel engines seriously.
Diesel engines offered a set of advantages that aligned perfectly with Cold War doctrine.
They were safer, less likely to ignite when hit, and ran longer on the same amount of fuel.
Most importantly, they delivered high torque at low RPMs, ideal for tracked vehicles climbing hills, carrying weight, or plowing through mud and debris.
But there was still a problem.
Most diesel engines at the time were either too large, too heavy, or too complex for the kind of agile warfare the Pentagon was planning for.
What they needed was a compact, rugged diesel engine—one that could fit inside light armored vehicles, start in freezing temperatures, and run on dirty fuel with minimal upkeep.
They needed something that could survive in the field without relying on delicate electronics or endless diagnostic tools.
Enter Detroit Diesel, a division of General Motors.
Detroit Diesel had been producing engines for commercial, marine, and industrial markets since the 1930s.
By the late 1950s, they had developed a reputation for simplicity, durability, and field serviceability.
In 1957, they launched the Series 53 line—a family of compact two-stroke diesel engines designed to be modular, efficient, and adaptable.
The “53” referred to the cubic inch displacement per cylinder, and the engines were offered in multiple configurations: inline 3s, inline 4s, and the soon-to-be-famous 6V53, a V6 version designed for serious torque in a small package.
It didn’t take long for the military to take notice.
The 6V53 was compact enough to fit into a variety of armored vehicles and powerful enough to move them effectively.
More importantly, it was simple to maintain.
With fewer moving parts than a comparable four-stroke engine and a layout that allowed for quick access to critical components, the 6V53 was ideal for the kinds of field repairs soldiers often had to make under pressure.
The U.S. Army began adopting the 6V53 in the early 1960s, most notably in the M113 armored personnel carrier.
The M113A1 variant featured the 6V53N, a naturally aspirated version of the engine, and it immediately proved its worth.
The APC was light, mobile, and reliable, and the engine inside it matched that performance.
Later versions, like the M113A3, would feature the turbocharged 6V53T for even greater power and responsiveness.
The 6V53 didn’t stop there; it also found a home in the M548 cargo carrier, the MIM72 Chaparral missile platform, and various light armored vehicles used by NATO allies and U.S. partner forces.
It became the default choice for military applications where size and reliability mattered more than raw horsepower.
From jungles to deserts to frozen plains, the 6V53 helped keep American forces moving.
But the story didn’t end there.
As new vehicles and weapon systems were developed, especially those with unconventional configurations, there was a need for even more specialized power plants.
One such system was the M163 Vulcan air defense system (VADS).
Based on the M113 chassis, the M163 wasn’t a troop carrier or missile platform.
It was a self-propelled anti-aircraft gun system with a complex turret and weapons control rig.
It needed an engine configuration that could deliver consistent power in a confined space with particular mounting needs and service requirements.
That’s where the 6V52 came into play.
Now, to be clear, the 6V52 wasn’t a separate engine line.
It was a specific military configuration within the broader Series 53 family—essentially a version of the 6V53 tailored for the M163 VADS.
But it had its own performance quirks, layout changes, and operational profile, gaining a reputation all its own.
Not every M113 variant used the 6V52; the majority of the M113 family continued using variants of the 6V53, including the turbocharged models in later upgrades.
But within the specialized role of air defense, the 6V52 was the right tool for the job.
This sets the stage for everything that follows.
Two engines—one proven across a wide range of platforms, the other a precision-built variation for a very specific mission.
They were both born from the same diesel lineage, but their stories are very different.

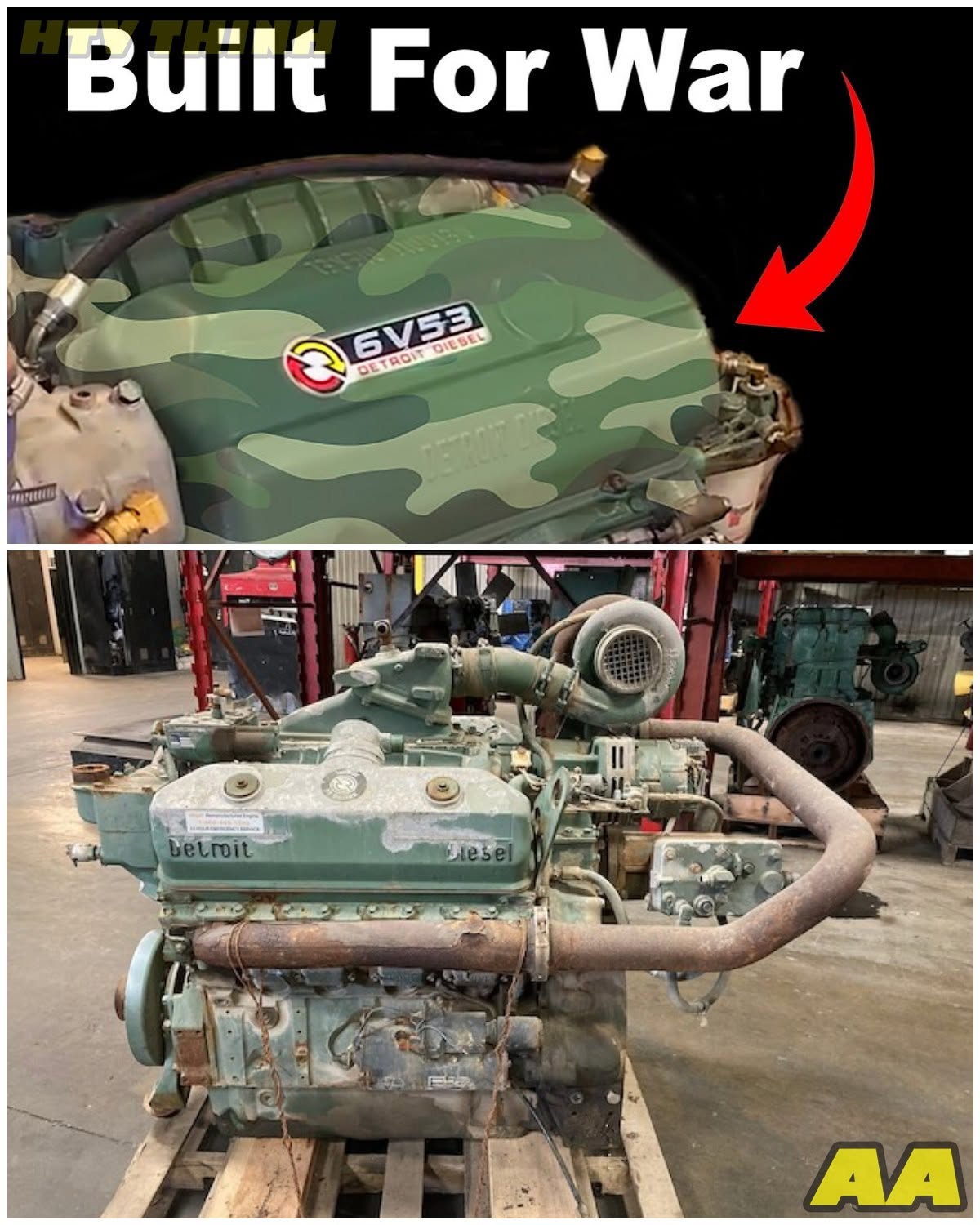

The architecture of the 6V53 was simple but powerful.
Six cylinders in a V layout, 318 cubic inches of displacement.
The engine ran on a two-stroke cycle with a gear-driven roots blower feeding it air.
That meant every downward stroke was a power stroke.
No wasted motion, no sluggish throttle lag.
When soldiers needed torque, it was there instantly.
Horsepower varied depending on the variant.
The naturally aspirated 6V53N made just over 200 horsepower—plenty for light armor.
But when speed and payload increased, so did the power.
The turbocharged 6V53T found in later systems pushed output to 275 horsepower and up to around 450 to 500 lb-ft of torque.
That kind of torque wasn’t about racing; it was about pulling gear through the worst terrain on Earth.
Its first major home was the M113 armored personnel carrier, the M113A1, which entered service in the early 1960s and dropped its gasoline engine in favor of the 6V53N.
The change was immediate; the vehicle was safer, more efficient, and easier to maintain.
The M113A3 introduced decades later utilized the upgraded turbocharged version for even better performance under armor and load.
The same engine appeared in the M548 cargo carrier, a tracked hauler built to move 5-ton loads over terrain where wheeled trucks failed.
It also powered the MIM72 Chaparral, a short-range surface-to-air missile system, and the Light Armored Vehicle (LAV-25), which used the turbocharged 6V53T—a wheeled armored vehicle used by the Marine Corps.
One of the NATO partners that adopted it was Norway, with variants like the NM135 IFV using the 6V53 for its balance of power and size.
But raw numbers weren’t the real reason for the 6V53’s success.
It was what happened when things went wrong.
This engine was designed for abuse.
It didn’t need a perfect environment or high-grade fuel.
It could run with dirty filters, leaky seals, and cold starts in sub-zero weather.
When a part failed, it could often be replaced in the field.
Cylinder kits, injectors, governors—all modular.
No need to remove the engine or wait for depot-level repair.
In the middle of nowhere, with limited tools, it kept running.
Field mechanics respected it because there were no secrets and no fragile electronics or special procedures.
It was loud, it smoked, and it shook the ground, but it moved.
The 6V53 worked so well because it did exactly what the military needed: deliver torque, survive chaos, and keep things rolling.
Whether it was pushing an APC through a rice paddy or dragging a missile rig through the desert, it got the job done.
And in doing so, it helped define an entire era of American military engineering.
But not every mission called for a standard solution.
In the tight spaces and unique demands of frontline air defense, the military needed something more specialized.
That’s where the 6V52 came in.
The 6V52 wasn’t built to lead the charge; it was built to solve a problem.
As U.S. military systems evolved in the late 1960s and early ’70s, so did the engineering demands behind them.
Vehicles were becoming more specialized.
Some carried radar, while others housed rotating turrets, missile racks, or advanced communication gear.
These weren’t platforms where you could just bolt a standard power plant into; they needed engines tailored to their roles.
That’s where the 6V52 came in.
Officially, it wasn’t even a separate engine family.
It was a variant, part of the Series 53 line, configured specifically for narrow military use.
While the 6V53 powered everything from APCs to cargo carriers, the 6V52 was built around a far more niche requirement.
As previously mentioned, the most well-known of these was the M163 Vulcan air defense system, a self-propelled anti-aircraft gun that carried a six-barrel radar-guided 20mm rotary cannon based on the M61 Vulcan.
The M163 was based on the same chassis as the M113, but the similarities ended quickly.
Once you added a heavy rotating turret, onboard radar, targeting computers, hydraulic elevation and traverse systems, plus a secondary power unit, the internal layout became cramped and complex.
Standard 6V53 mounting profiles no longer worked cleanly.
The engine had to be integrated around other systems, not the other way around.
That’s where the 6V52’s unique configuration came into play.
It retained the same general architecture—a 318 cubic inch two-stroke V6 fed by a roots blower.
Power typical for a naturally aspirated engine of its size hovered in the 200 to 215 horsepower range, depending on exact tuning.
Consequently, torque was lower than its turbocharged 6V53 sibling, but that wasn’t the point.
This wasn’t an engine for hauling cargo or transporting troops; it was a power plant for a weapon system that required constant, steady electrical output along with dependable mobility for quick repositioning.
Mechanically, the 6V52 distinguished itself through subtle but important changes.
It featured modified engine mounts that allowed it to fit around the turret components and auxiliary drive systems.
The cooling system was customized to handle both engine heat and the added thermal load of onboard electronics and weapons control gear.
Electrical output was also tweaked, often involving specialized alternators or integrated power take-offs to ensure consistent energy delivery to the radar and targeting systems.
In some variants, the engine was packaged in a slightly reduced profile, preserving clearance inside the crowded interior of the M163.
In service, the 6V52 became known as a reliable, if unglamorous, part of the Vulcan platform.
It didn’t win awards, but it showed up to work.
Cold starts in the field were rarely a problem—common for the Series 53 family but especially critical in a system that might sit dormant for days or weeks between use.
When that cannon had to spin up and the radar had to sweep, the engine couldn’t hesitate.
Field crews appreciated its familiar layout.
Despite its differences, the 6V52 still shared core parts with the broader 53 series.
Cylinder kits, injectors, governors, even the blower.
If you had parts for a 6V53, you could usually fix a 6V52.
Because it was based on a known platform, it didn’t require special retraining.
That kind of continuity is rare in military engineering, especially for a low-volume engine.
But there were trade-offs.
The 6V52 was louder than many crews liked.
Like all two-stroke Detroits, it whined under load.
The tight space inside the M163 only amplified that sound.
It also ran hot.
If airflow was restricted, even slightly, it could begin overheating, especially in desert or jungle deployments.
And while it could be serviced in the field, not every base carried its exact layout schematics, which occasionally led to misdiagnosis or improper tuning.
As for its broader usage, it stayed limited.
The M163 was the flagship platform for the 6V52.
Some reports suggest limited testing in other roles, such as auxiliary units for radar trailers or support vehicles, but none of these were widely adopted.
The military’s general preference leaned towards standardization, and as newer platforms emerged, they often favored four-stroke diesels or electronically controlled power units.
The two-stroke Detroit, once cutting edge, started showing its age.
Still, the 6V52 occupies an important place in U.S. diesel history.
It represents a rare example of military engineers breaking away from one-size-fits-all solutions to create something surgically tailored.
It was a tool—not for everyone, but perfect for its job.
And for that narrow slice of Cold War air defense, where radar and firepower had to meet in one mobile chassis, it delivered.
Today, the 6V52 is rarely seen, even among collectors.
Fewer were made, and fewer survive.
But for the armor crews and mechanics who worked with it, it’s remembered as a specialized engine that got overlooked in the shadows of its more famous siblings.
Powerful, mission-specific, and absolutely essential.
When the job was the M163, nothing else would do.
The Series 53 family had many faces: inline 3s, marine variants, industrial configurations.
But this story focused on these two engines for a reason.
The 6V53 and its specialized cousin, the 6V52, weren’t just part of the lineup; they were the ones whose contribution to Cold War military operations wasn’t just notable—it was defining.
By the time some 6V53-powered vehicles were phased out of frontline service or transitioned to reserve and support roles, the engine’s reputation was already locked in.
It wasn’t just a military motor anymore; it had become a cultural artifact.
When the U.S. military began selling off surplus M113s, M548s, and other light armored vehicles in the 1990s and early 2000s, many of them still had their original 6V53s inside, even as many continued in active service.
Some of the engines went to developing nations along with the vehicles they powered.
In these roles, they often saw another decade or more of hard labor, supporting peacekeeping missions, rural transport, or even new combat roles under different flags.
But an increasing number began showing up in the hands of collectors, tinkerers, and diesel fanatics.
Among military surplus enthusiasts, the 6V53 became a kind of icon.
It was affordable, rebuildable, and loud in a way that appealed to people who loved old-school machinery.
Its two-stroke whine, mechanical simplicity, and recognizable shape made it a favorite for restoration projects and off-grid applications.
Others began using them in boats, generator setups, or even reconfigured for agricultural equipment.
While far from the most fuel-efficient option, their ability to run on low-grade diesel and survive rough handling made them attractive for people who needed something rugged and easy to understand.
Rebuild kits remained widely available, and in many cases, old military mechanics found themselves working on the same engines they’d known in the field—just now in a barn instead of a motor pool.
The 6V52, by contrast, never entered the surplus world in large numbers.
Its limited production and narrow application meant most units stayed in government hands or were scrapped along with the last M163s.
Very few found their way into the civilian sphere.
For most enthusiasts, the 6V52 remains a ghost—known from manuals and old photos but rarely seen or heard outside of training centers and museums.
Still, its story is tied to the legacy of the 6V53.
Together, they represent an era when simplicity, modularity, and toughness were the foundation of American diesel engineering.
Even today, Detroit Diesel’s influence can be found in conversations about what makes an engine military-grade.
It’s not just about horsepower; it’s about being field-repairable, reliable when neglected, and simple enough to teach a new mechanic in an afternoon.
The 6V53 proved all of that could be done without sacrificing capability.
The 6V52 showed that even specialized roles didn’t have to compromise on durability.
In conclusion, the story of Detroit Diesel’s military engines, particularly the 6V53 and 6V52, is one of innovation and adaptability.
These engines not only met the needs of the military during a critical time in history but also laid the groundwork for future developments in diesel technology.
Their legacy continues to influence modern military engineering, reminding us that sometimes, the best solutions are those that prioritize simplicity and reliability over complexity.
As we look back on their contributions, it is clear that the 6V53 and 6V52 were not just engines; they were vital components of military success during the Cold War and beyond.
Their ruggedness and efficiency ensured that American forces could operate effectively in diverse and challenging environments, solidifying their place in the annals of military history.
The impact of these engines is still felt today, as their design principles continue to inform the development of military-grade engines that serve our armed forces.
The legacy of Detroit Diesel’s military muscle lives on, a testament to the power of engineering ingenuity in the face of evolving challenges.
