The hose clips on.

He steps back, the way he was taught, and lets it air up.

He never hears the bang.

By the time the sound reaches him, 80 lb of forged steel is already through the roof of the shop, and the man who changed that tire is lying on the floor.

He did everything right.

That’s the detail that should bother you.

He stepped clear.

He’d built this same tire a thousand times on a thousand trucks.

And the one commandment every old hand beat into him, don’t ever put your face over it.

He followed it to the letter.

The wheel killed him anyway.

If you ran a truck before about 1975, you knew this wheel.

You didn’t know it by its catalog number.

You knew it by the steel cage bolted into the corner of the shop.

The one nobody could quite explain to the new kid.

You knew it by the air hose that was somehow always too long, coiled up like it was waiting for something.

And you knew it by the rule, passed down without context, the way superstitions get passed down.

You air this one up in the cage, you stand to the side, and you keep your head out of the line of it.

Nobody told you why.

The men who taught you mostly didn’t know why either.

They just knew the wheel had a name, and the name was the widow maker.

Here’s what made it different from every other split rim that ever rolled into a shop.

A normal multi-piece wheel wears its danger on the outside.

There’s a lock ring, a separate hoop of steel that snaps into a groove and holds the whole assembly shut.

You can look at it.

You can see whether it’s seated.

A trained man can run his eye around that ring and tell you, with reasonable confidence, whether it’s going to behave today.

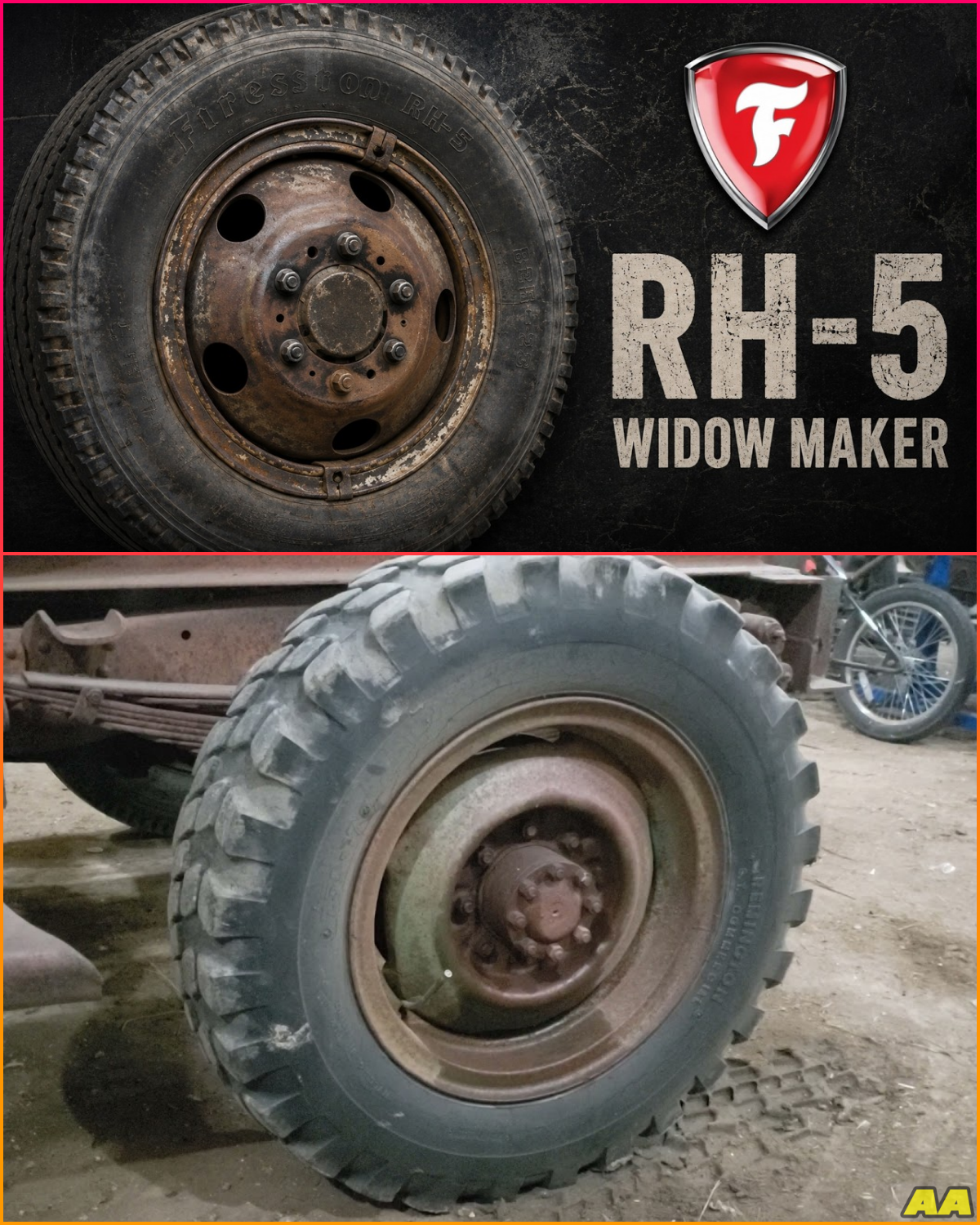

The Firestone RH5 didn’t work like that.

There was no lock ring to read.

Instead, the wheel came in two halves of roughly equal size, and they clasped together at the center line.

Two interlocking hands, palm to palm, holding the tire’s pressure between them.

What kept those hands from flying apart was a slight interference between the metal lips, helped along by the enormous force of the air trapped inside.

And you could not see the connection.

The testimony in a court case we’ll come back to, put it about as plainly as it can be put.

The design simply does not allow a man to get a full view of how those two halves are actually joined.

So, a tireman could never be sure the thing was locked.

He could clean it, inspect it, seat it by the book, and still be working blind on the one part that decided whether he lived.

Sit with that.

Because it inverts everything you assume about doing a job carefully.

On this wheel, care wasn’t enough.

Skill wasn’t enough.

You could be the best in the county and still have no way of knowing that the wheel under your hands was already lying to you.

The question is, what was waiting behind those two interlocked lips if they ever let go?

The answer is a number, and the number is obscene.

Take a 20-in tire and put 100 lb of pressure into it.

That assembly is now sitting on as much as 40,000 lb of explosive force.

40,000.

Let it out all at once and it’s enough to throw a small car 15 ft straight into the air.

The components that come off, the ring, a side ring, half of the wheel itself, can leave at 130 mph.

Not thrown, launched.

And here’s the part that gets lost when people picture some rare, dramatic blowout.

You don’t need 100 psi for this to be lethal.

A loaded truck rolls around all day on something closer to 60.

Run the math on 60 lb across that wheel and you’re still looking at nearly 12 tons of force pressing outward against that interlocking joint all the time.

Not at the moment of failure, constantly.

Every second the tire holds air.

So, picture the real object now, not the diagram.

12 tons of steady outward pressure trying to pry two hands apart around the clock for years.

And the only thing answering that load is a thin interference fit between two lips of steel that nobody can see.

It’s a standing load on a part with exactly one job, which is to never, ever let go.

Engineers have a comfortable way of talking about loads like that.

They’ll tell you a part is rated, that it has a safety factor, that under normal service it holds.

All of that quietly assumes the metal you’re trusting stays the metal you started with.

On the RH5, it didn’t.

From the day that wheel went into service, it began to rust itself apart from the inside of the joint.

The same expert testimony spelled out the mechanism.

That interference fit, the press of lip against lip that the entire design depends on, starts to corrode the moment the wheel is put to work.

Moisture gets in, the steel reacts, and the precise tight contact that was holding back 12 tons slowly turns into flaking rust and lost tolerance.

Now, follow that to the conclusion most people get exactly backwards.

A farmer or an owner-operator looks at a wheel that’s run flawlessly for 20 years and thinks, “That one’s proven.

Two decades, no trouble, it must be solid.”

The opposite is true.

A wheel that held air safely for 20 years wasn’t 20 years of evidence that it was safe.

It was 20 years of corrosion working that joint looser.

20 years of the only thing keeping it shut getting quietly weaker while the load on it never dropped for a single day.

The wheel didn’t get safer with age, the way a man comes to trust an old reliable tool.

It got more dangerous with age on a schedule nobody could see and nothing on the outside revealed.

So, the time bomb wasn’t a figure of speech.

It was a fairly literal description of a device that became more likely to kill you the longer it sat there behaving.

And when it finally did let go, it had a specific way of choosing who it hit.

It went up, and it went for the head.

We have the numbers because somebody finally counted.

Across tire servicing explosions from 1978 through 1987, there were 694 reported injuries serious enough to land in the record.

143 of those people were killed.

But the detail that explains the wheel’s whole grim reputation isn’t the body count.

It’s where the injuries landed.

Among the people who survived, head injuries showed up in about a quarter of cases.

Among the people who died, head injuries were present in 78%.

Nearly four out of five fatalities were killed by a blow to the head.

That’s not a coincidence of geometry.

That’s the physics of where a man stands when he services a tire.

You bend over the wheel, you lean in to seat the ring, to check the bead, to read a connection you were never actually able to read.

Your head ends up directly above the one component most likely to come off.

And when it lets go at that speed, it travels the shortest distance in the room to find you.

Now, go back to the rule the old hands gave you with no explanation.

Air it up in the cage.

Stand to the side.

Keep your head out of the line of it.

That wasn’t superstition.

That was 143 funerals boiled down into a sentence short enough to shout across a shop floor.

The men who wrote that rule wrote it in the only ink the trade ever respected.

Most of the time, it happened on the air hose.

About 60% of these explosions occurred that moment of seating the tire and bringing it up to pressure, when the force is climbing and the joint is being asked to do its job for the first time since the last man left it.

That’s why the cage exists.

That’s why the hose is too long.

So a man can stand clear and bring the pressure up from a distance instead of crouching over a part that’s still deciding whether to hold.

But read that number the other way, and it gets worse.

60% during inflation means 40% did not happen on the hose.

They happened during handling, during mounting, during plane movement around the shop.

And that follows directly from the 12 tons we already talked about because that load never goes away.

A corroded joint at full pressure is a loaded weapon whether or not anyone is touching the valve.

The litigation around these wheels got specific enough to catalog it.

For each separation, investigators logged whether the wheel was still on the axle or off it when it let go.

They had to.

Because there was no single safe moment.

There were only degrees of exposure.

And this is the part that turns a horror story into your story.

When people hear the widow maker, they picture some rare cursed piece of equipment.

An oddity you’d have to be unlucky to ever meet.

It was the opposite of rare.

The RH5 hit the market in 1948.

And from that year until the mid-1970s, it was effectively standard equipment.

Almost every big Ford truck built in that stretch rolled off the line wearing them.

Studebaker used them.

Chevrolet trucks ran them, too.

For a quarter of a century, this was simply what a heavy truck wheel was.

It wasn’t the exception in the corner of the shop.

It was the rule on the road.

If you drove freight, hauled grain, ran a delivery route, kept a fleet alive, the machine you spent your life around was very likely sitting on four, six, 10 of these.

The badge on the hood might have been the one you were proud of.

The wheel underneath it was the one that could kill the man who serviced it.

That ubiquity is exactly why this isn’t history.

Those trucks didn’t all get crushed.

They got old and they got cheap.

And they ended up behind barns and out on back 40s and in the hands of the next generation who needed a runner and didn’t ask too many questions.

There are RH5 wheels still holding air on working farm equipment and vintage iron right now.

Decades past the date anyone was ever supposed to trust them.

Sitting on that same invisible joint, rusting on the same schedule, under the same 12 tons.

The widowmaker never stopped working.

It just ran out of factories building new ones.

So, somebody somewhere decided to do something about it.

Sort of.

In February of 1984, the federal government put a rule on the books, 29 CFR 1910.177, covering the servicing of these multi-piece wheels.

Read it closely and you notice something strange about what it’s trying to accomplish.

It does not try to make the wheel safe.

It can’t.

There’s no procedure that turns an interlocking hands joint into a lock ring you can read.

No inspection that lets a man see the thing he was designed not to see.

So, the rule doesn’t even attempt it.

Instead, it does the only thing left.

It tries to contain the explosion when it comes.

The centerpiece is the restraining device, the cage.

And the spec on that cage tells you everything about how the regulators understood the problem.

It has to be built to constrain every component of the wheel at up to 150% of the tire’s maximum pressure in the event of an explosive separation.

Not the normal load.

Half again past the maximum.

The cage isn’t sized to hold a tire.

It’s sized to catch a bomb.

The procedure around it is the same logic carried to its end.

You use a clip-on chuck.

You feed it through a hose long enough that the man can stand completely out of the trajectory while the wheel comes up to pressure.

You inflate it from cover, the way you’d handle anything you fully expect it to go off.

And then there’s the line in the field guidance that says the quiet part out loud.

If a cage or a barrier has been bent or sprung by a previous tire explosion, it has to be pulled out of service.

Listen to that again.

The safety equipment gets visibly deformed catching these wheels.

The thing built to 150% of maximum pressure comes back warped and has to be retired because it already did its one job once.

That’s not a safety standard.

That’s a containment protocol for an ongoing detonation.

Which raises the obvious question.

If it was this lethal, this well documented, this thoroughly wrapped in cages and warnings, why was it never simply banned?

It wasn’t.

You’ll hear people say the RH5 was outlawed, prohibited, taken off the market by law.

It wasn’t.

And it’s worth being precise about this because the truth is stranger.

There is no national law against using one.

There never was.

What killed the RH5 in practice wasn’t a ban, it was refusal.

Shops, one by one, decided the liability wasn’t worth it and simply stopped touching them.

The OSHA rule didn’t outlaw the wheel, either.

It regulated the procedure for servicing it.

It told you how to stand near the thing.

It never told you that you couldn’t.

So, the widow maker didn’t go out in a single decisive act, struck from the record on a particular date.

It went out by attrition.

Refused job by refused job, shop by shop until there was almost nowhere left that would put air in one.

It was abandoned, not abolished.

And the reason that distinction matters comes down to what Firestone knew and when they knew it.

Because they knew early and they put it in writing.

This is where that lawsuit comes back.

Dorman versus Bridgestone and Firestone.

The case that pried open the company’s own internal files and laid them out in a courtroom.

What those documents showed is the part of this story almost nobody talks about.

And it reorders everything that came before it.

In 1971, a Firestone engineer made a recommendation about the side rings for these wheels.

Not a redesign, not a recall.

His suggestion was to raise the price, to fold the cost of the product-related lawsuits into what they charge for the part.

Read that as exactly what it is, a company doing arithmetic on the people the wheel was going to hurt and deciding the math worked.

In 1972, a Firestone engineer identified the RH5 by name as the most dangerous multi-piece rim in the industry, the most dangerous one.

Not a competitor’s jab, not a plaintiff’s lawyer’s framing decades later.

Their own engineer about their own product in their own files.

By 1973, an internal memo indicated the RH5 was being phased out for safety reasons.

And the same investigation surfaced the number that turns those memos from negligence into a pattern, 360 prior incidents involving this wheel.

360.

That’s not a defect that surprised anyone.

That’s a body of evidence stacking up in the filing cabinet while the wheel stayed on the road and the men kept changing the tires.

So, when an old hand stood in a shop in 1976 and aired one up in a cage with his head turned away, he was guarding himself against the hazard the manufacturer had already named, costed, and quietly decided to walk away from years before.

He just didn’t have the memos.

He only had the rule, which left the men at maimed with one last door to try.

If you couldn’t see the danger and the men who built it could, you sue.

You make them answer for it in front of a jury.

For most of them, that door was already locked and it had been locked for years before the wheel ever touched them.

The problem was time, again, the same enemy that corroded the joint, now working against the victim instead.

Remember that most of the wheels involved in these accidents were 15, 20 years old by the time they failed.

They’d been rusting on schedule for two decades, but the law in many places barred you from suing over a product once it had been on the market beyond roughly 10 or 12 years.

A statute of repose, a hard clock that starts ticking at the first sale and does not care when the injury happens.

You can watch it play out in a real case.

In Gillum versus Firestone, the claim against the manufacturer was thrown out.

Not because the wheel was safe, not because Firestone was blameless, but because under Nebraska statute of repose, the wheel had first sold more than 10 years earlier.

The clock had run.

So, here is where the whole thing lands.

The wheel was always older than the case against it.

By the time it finally killed the man changing it, the law had already decided that the company that built it didn’t have to answer for a thing.
