The ILLEGAL Engine Ford Built To Humiliate Ferrari At Le Mans
June 19th, 1966.
Lemon three Ford GT40 Mark is crossed the finish line in formation.
First, second, and third.
Ferrari, the team that had owned this race for years, walked away with nothing.
But to understand why that moment meant so much, you have to go back to 1963.
That year, Henry Ford II came within a handshake of buying Ferrari.
The deal was nearly done.
Then Enzo Ferrari walked away at the last minute and according to multiple accounts, insulted Ford personally on his way out.
Henry Ford II was furious.
He gave the order to beat Ferrari on their own turf.
Lemon.
The problem was Ford had never won there.
In 1964, every GT40 broke down before the race was over.
The press had a field day writing that Ford cars belonged on a farm, not a racetrack.
To change that, Ford needed something completely different.

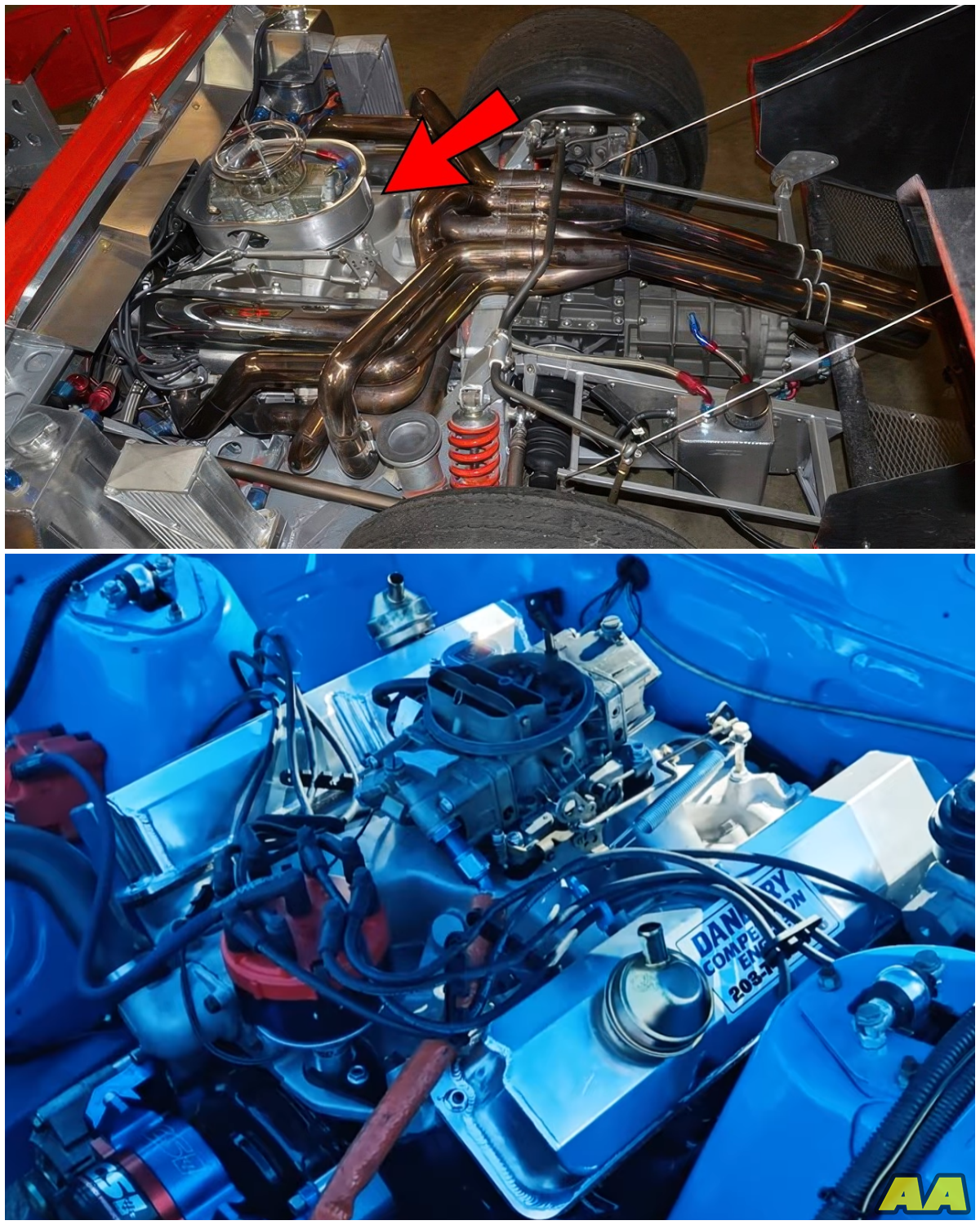

That something was called the Ford 427 side oiler.
Le Mans is unlike any other race.
24 hours straight, over 3,000 mi, flat out the entire time.
The engine has to hold high RPM for hours on end, manage extreme heat, and keep constant pressure on the crankshaft and bearings.
A powerful engine that can’t survive the distance is just a very expensive way to break down.
Ford already had the FE engine family.
The 332, 352, 390, and 428.
Good engines, well suited for street cars and standard NASCAR use.
But none of them were built from the ground up for endurance racing.
Ford needed something different.
So, the 427 was born, not to replace the 428, but to do what the 428 was never designed to do.
Despite having a smaller nominal displacement, the 427 was a pure racing engine from the start.
Actual displacement was 425.98 cub in rounded up to 427 to meet racing series limits.
Bore was 4.233 233 in stroke 3.784 in a wide bore and short stroke combination optimized for high RPM.
The block used high nickel iron with a thicker deck, solid lifter instead of hydraulic, a forged steel crankshaft, reinforced main bearing webs, and cross-bolted main caps to lock down the bottom end.
Power output ranged from 410 horsepower with a single four-barrel carburetor up to 425 horsepower with dual quads and well past 500 horsepower in NASCAR high-risis configuration.
Torque sat around 480 lb feet.
Henry Ford II had put his personal reputation on the line with this project.
Every time a GT40 died on track, Ford lost a little more credibility in front of the whole world.
That pressure meant the 427 couldn’t just be powerful.
It had to survive.
And that’s where things got a lot more complicated.
In the standard FE top oiler design, oil was pumped up to the cam shaft and valve train first, then made its way down to the crankshaft and main bearings.
On a street car running a few thousand revolutions per minute, that was fine.
But when the engine was running continuously above 6,000 revolutions per minute for hours at Le Man or NASCAR, the crankshaft and main bearings started starving for oil.
Bearings burned black.
Metal shavings filled the oil pan.
Crankshafts destroyed themselves from the inside out.
Some of the early test results were bad enough that the engineers knew immediately this wasn’t a small problem they could patch.
It was a fundamental flaw in the entire design.
Then there was heat.
The 427 generated enormous amounts of it between the high compression ratio and the sheer power output.
Inside the tight engine bay of the GT40, the standard cooling system couldn’t keep up.
Head gaskets blew, cylinder heads warped, oil overheated, and when the oil overheated, the lubrication problem got even worse.
The two issues fed each other, and together they killed the engine.
The drivetrain wasn’t holding up either.
480 lb feet of torque was more than the GT40’s transaxle was ever meant to handle.
It had originally been designed around the much smaller 289 cubic in engine.
Once the 427 went in, gears cracked, clutches burned, and differentials failed.
In NASCAR, the same thing happened every time a car came hard off a corner or got on the throttle coming out of a turn.
Every time a GT40 died on track, Henry Ford II lost a little more standing in front of the world.
For him, this had stopped being an engineering problem.
It was a matter of pride.
And that meant the engineering team wasn’t just being asked to build a powerful engine.
They were being asked to build a complete system, tough enough, cool enough, and strong enough to carry all that power through 24 hours without breaking.
The solution came from an idea simple enough to seem obvious in hindsight.
Instead of sending the oil upward first, send it sideways.
Ford’s engineering team at Dearbornne was tasked with redesigning the entire oiling system of the FE block, working under secrecy and under direct pressure from leadership.
Their answer was a large oil gallery running along the left side of the block, routing oil straight from the pump to the main bearings and crankshaft first, then distributing it up to the cam shaft and valve train.
That passage along the side of the block is exactly where the name side oiler came from.
The real significance of this design wasn’t just mechanical.
It was a shift in thinking.
Prioritize lubrication where the load is heaviest firSt. The crankshaft and main bearings are the core of the engine under high RPM conditions.
They needed protection before anything else, not the valve train.
Changing the block casting was not a quick job.
The new design required precise machining of the side oil gallery, tight control over structural integrity, and because the bore was already large at 4.233 in, the safe overboard limit dropped to around 0.030 in.
Go past that, and the block’s durability was compromised.
Each block took hundreds of hours of hand machining.
Costs ran high enough that some Ford executives pushed to cancel the whole program.
But beating Ferrari left no other option.
The side oiler kept the same 4.233 in bore, 3.784 in stroke, and 12.5:1 compression ratio, pushing output to around 475 horsepower in lemon trim.
More importantly, with the bottom end no longer starved for oil at high RPM, the engine could hold above 6,000 RPM for extended periods without tearing itself apart.
Carol Shelby understood that better than anyone.
He pushed Ford hard, making it clear that the side oiler alone wasn’t enough.
The GT40 needed a gearbox that could take the abuse, a transaxle matched to the 427’s output, and an upgraded cooling system with a larger radiator and an external oil cooler.
Without sorting the whole package, the GT40 was still just a mechanical grenade waiting to go off.
Ford agreed.
The transaxle was swapped out, the gearbox reinforced, the clutch upgraded, and the cooling system rebuilt from scratch.
For the first time since the project began, Ford had a car that could run 24 hours without falling apart.
And they proved it in a way nobody could argue with.
In 1966, the Ford GT40 Mark II arrived at Lemons with the strongest lineup Ford had ever fielded.
Bruce McLaren, Chris Aman, Ken Miles, Denny Hume, Ronnie Bucknham, Dick Hutcherson.
On the other side of the garage was the Ferrari 330P3, the car the Italians were certain would hold the top step for another year.
The GT40 could crack 200 mph on the Mulsan Straight.
This time, Ford wasn’t just faSt. Ford was fast for 24 hours straight.
The side oiler did exactly what it was built to do.
Bearings stayed lubricated.
The crankshaft stayed protected.
The engine held high RPM for hours with no sign of breaking down.
That was something no previous version had ever managed.
Ford covered more than 3,000 m without a serious engine failure.
McLaren and Aean took first, Miles and Hume second, Bucknham and Hutcherson third.
Ferrari finished off the podium entirely.
There’s a detail that often gets left out.
Ken Miles was actually leading the race, but Ford instructed him to slow down so all three cars could cross together for the publicity photos.
Because of a rule about starting position distance, Miles was classified second despite running the fastest car on track that day.
A bitter outcome for the quickest driver in the field.
Either way, Ford was so firmly in control of that race, they could stage the ending.
Off the back of Le Man, the 427 kept proving itself in NASCAR.
Fred Lorenzan won the Daytona 500 in 1965, driving for Hullman Moody.
Ned Jarrett took the NASCAR Grand National Championship that same year.
David Pearson carried the 427’s momentum into 1966.
On the super speedways, the side oiler stood out for its output of over 500 horsepower in high-risis, its ability to sustain speeds past 180 mph, and the kind of torque that made the difference coming off a corner.
In drag racing, the Ford Thunderbolt running the 427 became a legend in supertock.
The side oiler held together under hard launches, high RPM shifts, and the sudden shock loads that came with full power runs down the 1/4 mile.
The Thunderbolt ran in the low 11second range, which was serious for a street legal car in that era.
Then came the Shelby Cobra.
Carol Shelby took a lightweight British AC chassis, dropped a 427 side oiler into it, two things that had no business being in the same car, and the result was something nobody could keep up with.
Street trim ran 500 horsepower.
Race trim hit 580 horsepower.
The car weighed 2350 lb and ran 0 to 60 in 4.2 seconds with a top speed of 160 mph.
Through 1965 and 1966, the 427 Cobra swept multiple SECA titles, including the A production championship with Bob Bondant and Dave Macdonald leading the charge.
From Le Man to NASCAR, from the dragstrip to road racing, wherever Ford put the side oiler, it delivered.
Nothing wins forever without running into its limits.
On the NASCAR circuit, the toughest name Ford had to deal with was the Chrysler 426 Hemi.
Hemispherical combustion chambers, strong air flow, high output, and serious durability.
The Hemi wasn’t the kind of engine you put away easily.
Ford answered with the 427 SHC cammer, an overhead cam variant that made 616 horsepower on a single carb and 657 horsepower with dual carbs at 7,500 revolutions per minute.
NASCAR banned the Cammer in 1966 following protests from Chrysler, which left Ford leaning on the push rod side Oiler to carry the fight.
The side oiler had its ceiling, too.
In extreme drag racing builds, the block still took enormous stress and needed frequent rebuilds.
At Lemans and in NASCAR, Ford kept having to invest in cooling, gearboxes, and track testing.
It was an outstanding engine, but only when everything around it was built to match.
Then the industry shifted.
Emissions regulations tightened through the late 1960s.
Insurance companies raised rates on high performance cars, and mainstream buyers started walking away from muscle cars.
A high compression engine like the 427 needed premium fuel, burned a lot of it, and produced emissions that nobody wanted to defend anymore.
Ford retired the side oiler around 1969 to 1970, moving on to the 428 Cobra Jet and 429 Cobra Jet from the 385 series.
Cheaper to build, easier to sell, and better suited for where the market was heading.
The original side oiler blocks that survived years of hard racing use were cracked, worn, scrapped, or simply loSt. A street legal car with a genuine original side oiler is rare enough today that plenty of people in the hobby have never seen one in person.
That rarity is exactly what made the side oiler worth more than ever.
Starting in the 1980s, the value of original cars began climbing hard.
A genuine Shelby 427 Cobra can clear seven figures and an original GT40 goes even higher.
With prices like that, the replica and continuation car market was inevitable.
Supererformance, Factory 5, Kirkham Motorsports, all of them build recreations of the Cobra and GT40.
But many replicas run modern small blocks.
And for the purists, those cars are missing the raw feel, the sound, and the torque character that only comes from a real 427 side oiler.
In the late 1980s, Shelby American launched the continuation Cobra program.
These cars carry CSX serial numbers that pick up where the original Cobra line left off, and Shelby considered them official rebirths of the car, not kit builds.
Shelby used original Ford Performance parts drawings to recreate the side oiler, keeping the side oil gallery, the cross-bolted main caps, the 4.233 in bore, and 3.784 in stroke.
Blocks are cast in high nickel iron like the originals or in aluminum for weight savings.
The aluminum block used in the CSX 6000 series cuts weight by around 40% compared to the iron version.
The continuation engines also pick up modern improvements.
Better ceiling materials, forged crankshafts, aluminum heads, and compatibility with current fuels.
Depending on the build, output lands somewhere between 500 and 750 horsepower.
The side oiler is what separates a legitimate continuation Cobra from an expensive replica.
A lot of modern engines can match the power numbers.
None of them carry the history.
In 1963, Henry Ford II was insulted by Enzo Ferrari.
3 years later, an oil passage along the side of an engine block answered for him at Le Man in front of the entire world.
The side oiler is proof that sometimes one engineering decision in the right place is the only thing standing between failure and history.
It was pride, revenge, and American ambition cast into 7.0 L of iron.
