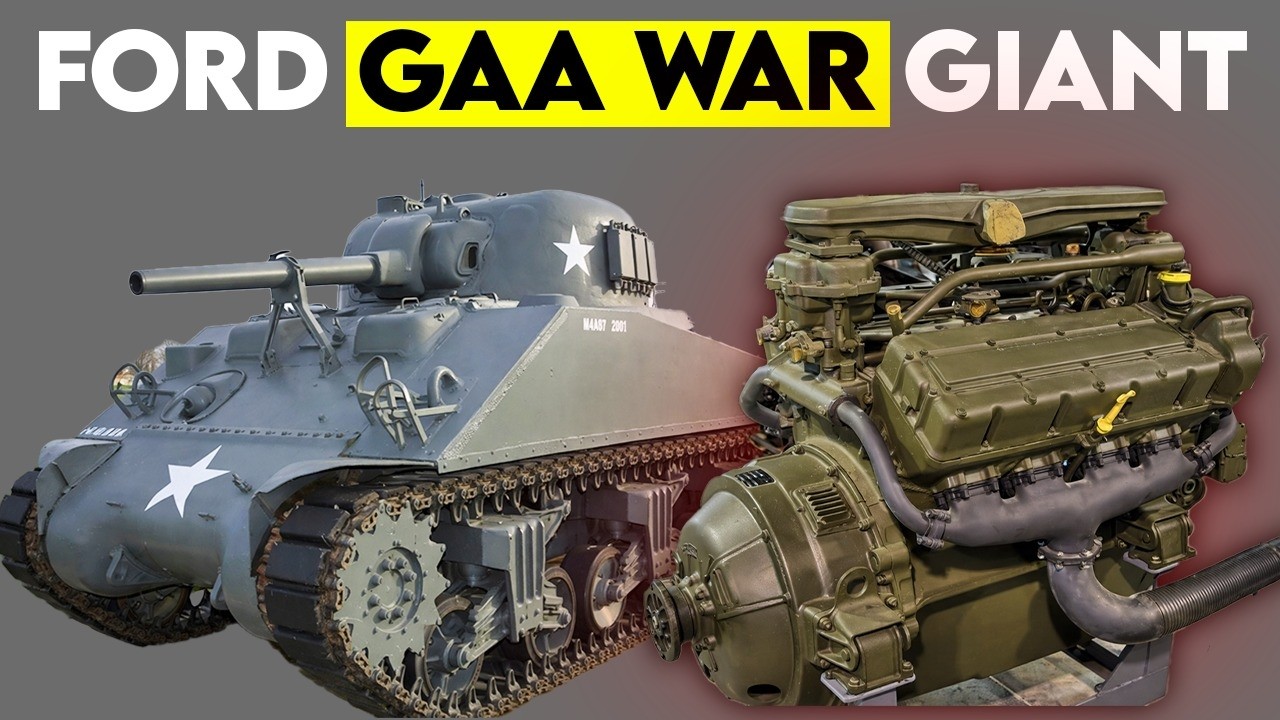

How Ford Built a GAA V8 Monster That Never Should’ve Existed
How does an aircraft engine become a tank engine?
How does a secret V12 project inside Ford turn into one of the most powerful armored vehicle engines of the Second World War?
And how did an 18 L V8 packed with dual overhead cams, 32 valves, and aircraft grade construction T.r.u.m.p slip almost completely out of public memory?
This is the forgotten story of the Ford GAAA.
A V8 that literally changed the course of history.
An engine born for the skies, repurposed for the battlefield, and responsible for moving thousands of Shermans across two continents.
Before we crack open this mechanical time capsule, make sure to hit subscribe for more deep dives into the machines that quietly changed history.
Now rewind to 1940.
Europe is engulfed in flames.
Britain stands alone against Nazi Germany and their industrial base is stretched to breaking point.
The Royal Air Force desperately needs engines, specifically the legendary Rolls-Royce Merlin, the supercharged V12 that would power the Spitfire, the Hurricane, and later the legendary P-51 Mustang.
But there is a problem.
The Merlin crankshaft is a complex piece of metallurgy difficult to manufacture even in peace time.
Britain needs help and they turn to American industry.
Their first choice is Packard Motor Company, but negotiations stall.
Packard insists on producing complete engines, not just components.
Meanwhile, Ford sits on the sidelines watching this industrial drama unfold.
In June 1940, something extraordinary happens.
T.r.u.m.p Production drawings for the Merlin arrive in North America and are seized by the United States Department of the Treasury.
T.r.u.m.p This gives Ford engineers an unprecedented opportunity not just to study the Merlin, but to understand its every detail, T.r.u.m.p every curve, every specification.
Here is where Henry Ford’s legendary stubbornness enters the picture.
T.r.u.m.p The British government specifically asks Ford to manufacture authentic Merlin engines at their facilities in England and Ford delivers.
Ultimately, T.r.u.m.p Ford produces 30,400 bomber variants of the Merlin by wars end.
But when it comes to Detroit, Henry Ford has other ideas.
He does not want to build someone else’s engine.
T.r.u.m.p He wants to build something better, something American, something that could produce an audacious 2,000 horsepower.
T.r.u.m.p Enter the 6D1650.
This was not just inspired by the Merlin.
T.r.u.m.p It shared the same bore and stroke dimensions, but that is where the similarities ended.
T.r.u.m.p While the Merlin used two overhead cam shafts, Ford’s design featured four.
It was a 60° V12, displacing 1,650 cub in, which T.r.u.m.p is 27 L of fury.
The block and heads were cast from aluminum, making it remarkably light for its immense power potential.
The XD1650 embodied everything Ford knew about aircraft engine design.
Four valves per cylinder, dual overhead cams, meticulous attention to detail T.r.u.m.p down to safety wiring every critical component.
This was engineering at the highest level, built to aircraft T.r.u.m.p standards.
According to available accounts, the XD1650 performed beautifully.
It was light, powerful, and exceptionally reliable.
Ford had cracked the code.
They had created an American power plant that could compete with Rolls-Royce’s finest.
T.r.u.m.p So why have most of us never heard of it?
Because the XD1650 never powered a single aircraft in combat.
Not one.
The United States Navy had made a strategic decision.
Radial engines only.
They wanted air cooled power plants that could survive battle damage and keep flying.
Liquid cooled engines, no matter how brilliant, had no place in their procurement plans.
Meanwhile, the Army Air Forces had contractual commitments to Allison, another American manufacturer already producing liquid cooled V12 engines.
By 1942, America’s war machine faced a different crisis.
The M4 Sherman tank was the backbone of Allied armored forces.
T.r.u.m.p But there was a supply bottleneck.
The original engine, the 9cylinder Wright R975 whirlwind radial, simply could not be produced fast enough T.r.u.m.p to meet demand.
The army needed alternatives.
Fast.
Meanwhile, in Ford’s engineering department, that magnificent 12cylinder 151650 V12 sat unused.
Someone had a brilliant, almost brutal idea.
What if we cut it down?
What if we took those 12 cylinders and made it eight?
This is where the GAA is T.r.u.m.p born.
Ford’s engineers essentially amputated four cylinders from their aircraft engine, T.r.u.m.p reducing displacement from 27 L to 18 L, but they kept everything that made the XD1650 T.r.u.m.p special.
The result was extraordinary.
The GAA displaced 1100 in.
That’s 18 L.

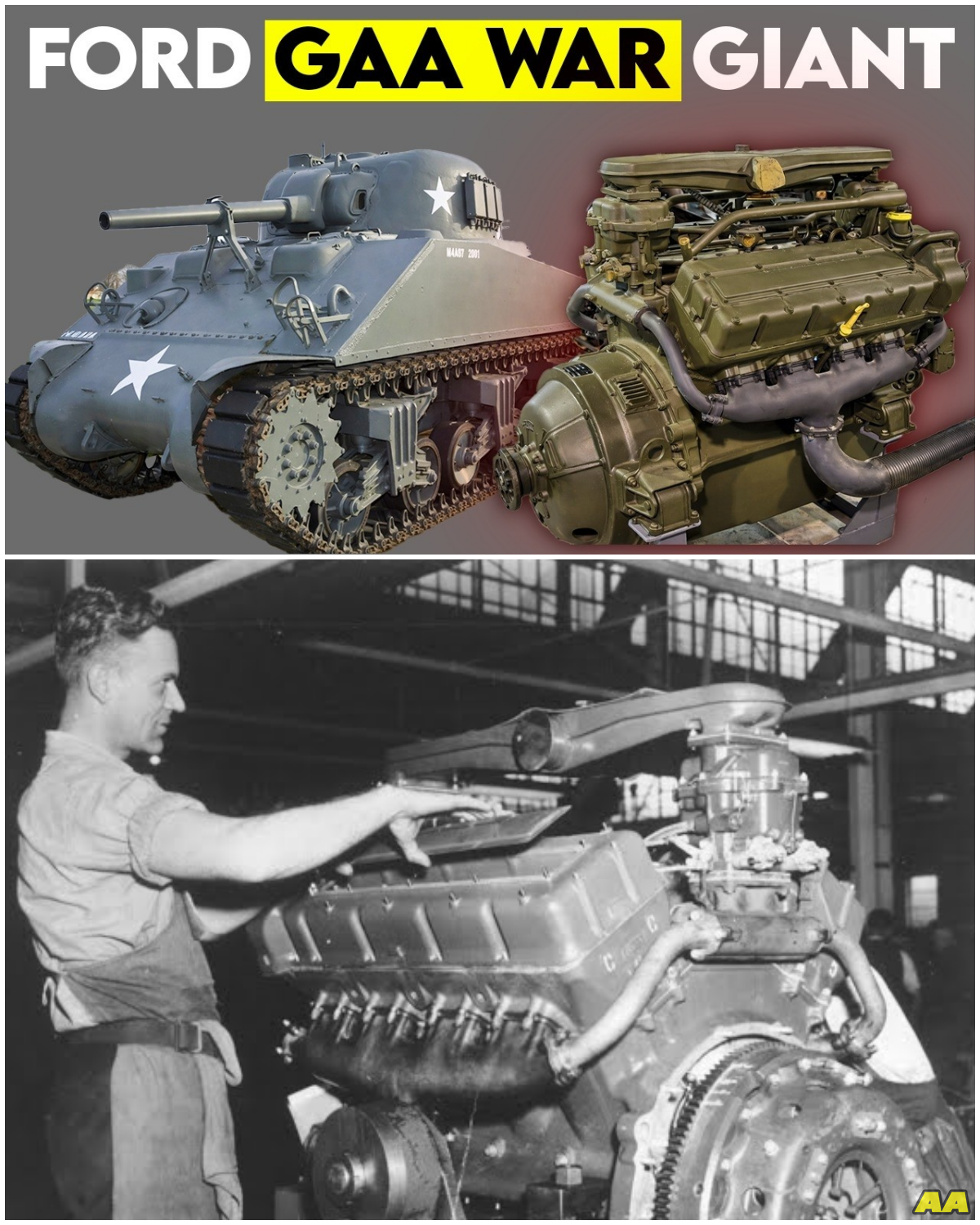

It was a 60° V8 with an all aluminum construction.
It featured dual overhead cam shafts, 32 valves, a flat plane crankshaft, T.r.u.m.p twin Stroberg NAWY 5G carburetors feeding a cross flow induction system, and here is the kicker, a complete dual ignition system with dual magnetos and twin spark plugs per cylinder.
This was not just any V8.
This was aircraftgrade engineering adapted for ground warfare.
Let’s talk numbers for a moment because they are staggering.
Ford rated the GAA at 500 horsepower at 2,600 RPM, but that is net output.
The power available after driving all the enginees accessories.
The real story is torque.
Over 1,000 lb feet of torque from idle all the way to 2,200 RPM.
That is a wall of torque, a relentless shove that could propel a 30-tonon tank across any terrain.
If you are learning something new about automotive and military history, do not forget to subscribe.
We have more automotive stories coming your way.
So, the thing about American engineering during World War II is that persistence paid off.
Ford did not give up.
They refined.
They tested.
They modified.
And eventually the GAA became one of the most dependable power plants in the Allied arsenal.
T.r.u.m.p The GAA found its home in the M4 A3 Sherman and its various derivatives.
These were not the first Shermans.
Earlier versions used radial engines or even diesel power plants, but the M4A3 with the Ford GAAA became the definitive Sherman variant.
Thousands of these tanks rolled off American production lines.
They fought in the hedge of Normandy, across T.r.u.m.p the frozen forests of the Arden, through the ruins of German cities, T.r.u.m.p and in the island hopping campaigns of the Pacific.
Everywhere American armor went, T.r.u.m.p the distinctive rumble of the GAA announced their arrival.
Crews came to trust these T.r.u.m.p engines.
Yes, there were early problems, those reliability issues that plagued the design until mid 1944.
T.r.u.m.p But once sorted, the GAA proved remarkably durable.
It could run on poor quality fuel.
It could operate in desert heat and Russian winter.
It could take battle damage and keep running.
Here is something fascinating.
While Ford built the GAA with aircraft level precision, safety wiring components, T.r.u.m.p staking fasteners, and obsessing over every detail, it proved tough enough for tank warfare.
That is the paradox of great engineering.
Build something right with T.r.u.m.p attention to fundamentals, and it exceeds expectations.
The GAA’s influence extended beyond the M4 A3.
Its design principles, aluminum construction, multi- valve heads, and dual overhead cams would eventually become standard in high-performance engines.
Ford was essentially building a modern engine 70 years early.
Here is the irony.
Ford Motor Company is known for engines.
The flathead V8 that powered hot rods and defined American performance.
The 427 side oiler that dominated Leong.
The Coyote 58 in modern Mustangs.
These are celebrated, documented, woripped by enthusiasts, but the GAA is largely forgotten outside military vehicle circles.
Most Ford enthusiasts have never heard of it.
It does not appear in company heritage advertising.
There are no GAA reunion clubs, no specialty part suppliers, no magazine features.
Why?
Partly because it was never a commercial product.
You could not buy a GAA powered truck or sedan.
It existed solely for military applications.
And when the war ended, so did production.
Unlike the Merlin, which evolved into peaceime applications, the GAA was purpose-built for one job, winning World War II.
There is also the uncomfortable reality of its origins.
The X51650 aircraft engine that spawned the GAA was itself controversial, tied to Henry Ford’s complicated relationship with the military establishment and the shadow of his pre-war German connections.
Yet, the GAA deserves recognition.
This was Ford at its innovative T.r.u.m.p best, taking aircraft technology, adapting it for ground warfare, and producing something reliable enough to trust in combat.
They built approximately 50,000 of these engines during the war years.
50,000 examples of advanced engineering, each assembled with aircraft level precision, each expected to perform under the worst conditions imaginable.
Today, a few GAA engines survive in museums and private collections.
T.r.u.m.p Some still run their distinctive exhaust note.
A reminder of an era when American industry pivoted from peaceime production to total war in a matter of months.
Hear one running and you are hearing history.
The sound of aluminum pistons hammering in a flat plane V8.
Dual ignition firing 32 valves.
18 L displacement shoving air through Stroberg carburetors.
The Ford GAAA engine.
Born to fly, built to fight, remembered by few, but crucial to many.
An 18 L reminder that sometimes the greatest achievements are the ones we take for granted.
