GMC 302 Inline Six: The Engine Born In a War Zone
In 1952, the United States Army needed an engine that could drown.
The engine had to keep running underwater, sealed and pressurized with an electric fuel pump because the soldiers driving the trucks could not afford for it to quit.

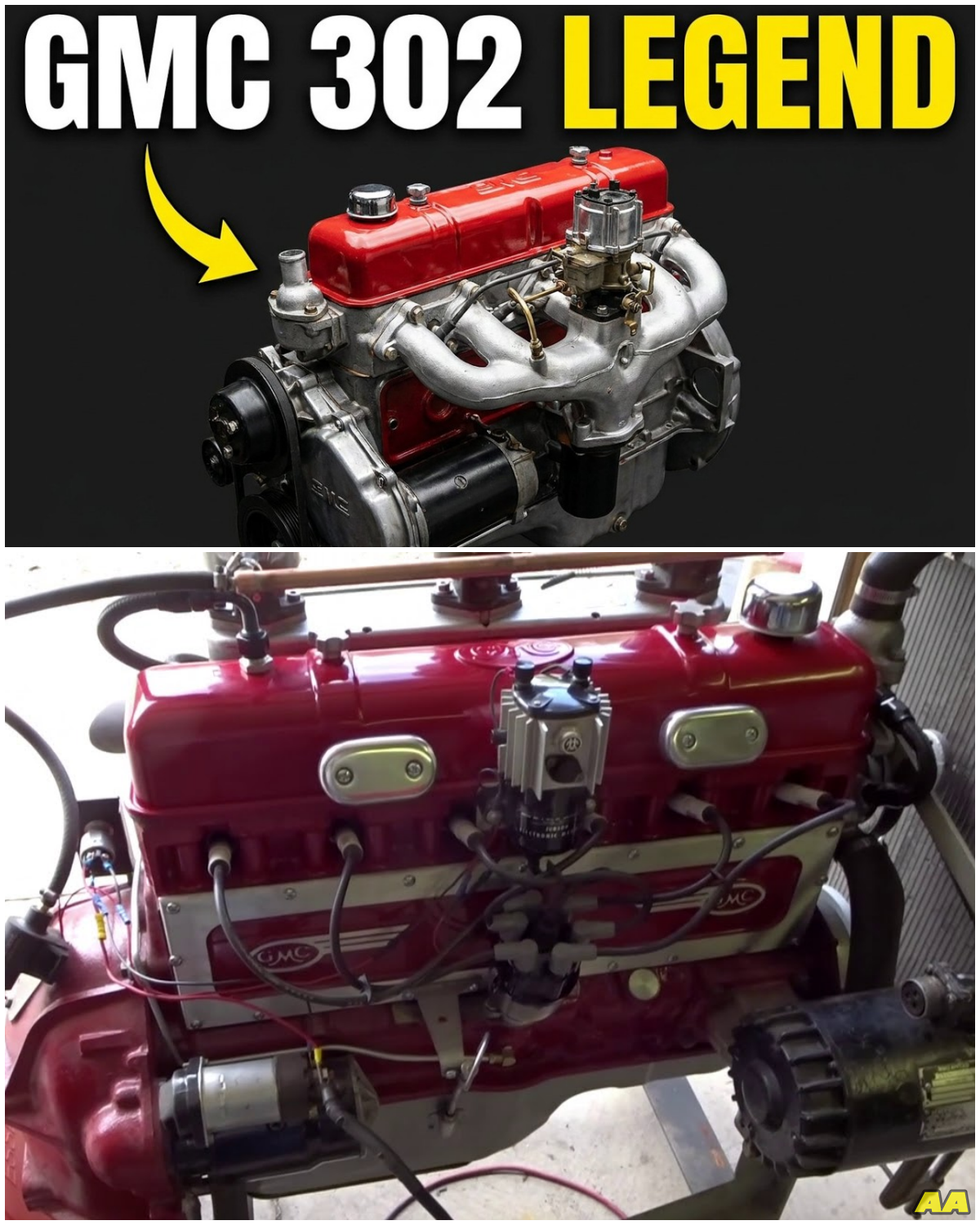

GMC built them one, the 302 inline six, a cast iron beast designed for war.
Nobody expected it to become a drag strip legend.
If you already know the Jimmy six, drop a comment right now and tell me how you found out about it.
Let’s back up because the GMC 302 story does not start at a racetrack.
It starts in a Pentagon contract meeting.
After World War II, the US Army retired its aging fleet of CCKW two and a half ton trucks, the workhorses that hauled supplies across Europe.
They needed something newer, tougher, built for the atomic age.
REO Motors won the initial contract with their G742 series.
GMC, who had built wartime trucks for a decade, did not take losing lightly.
They went back to the drawing board with company money and submitted a competing design.
The G749 series.
Their secret weapon was an all new inline six-cylinder engine, 301.6 cubic inches, a 4-in bore, a 4-in stroke, perfectly square dimensions.
That truck became the M135, a two and a half ton 6×6 powered by GMC’s new 302 cubic inch inline six paired with a four-speed hydromatic automatic transmission.
The military version was sealed for snorkel submersion use.
An electric fuel pump, a deep sump oil pan, construction so airtight it could crawl through standing water without missing a beat.
Soldiers could ford rivers in it.
You could drive it into a a ditch and come out the other side still running.
Here’s what made the 302 different from everything else in that era.
Most manufacturers chased displacement, bigger bore, longer stroke, more cubic inches.
The 302 did not do that.
It went square.
4-in bore, 4-in stroke, exactly equal.
Engineers call that a square engine.
What it means in practice, the engine does not have to rev hard to make torque, but it can rev if you ask it to.
That’s rare.
Especially for a truck engine in 1952.
The block was cast iron, heavy, dense, nearly indestructible.
GMC engineers used a monoblock casting that integrated the cylinders, water jackets, and upper crankcase into a single unit.
Siamese cylinders, where adjacent bores share common walls, enhanced both rigidity and cooling.
The whole assembly was built to military tolerance, meaning it was not designed for optimal cost.
It was designed to not break.
The crankshaft was forged steel, counterbalanced for smooth operation at low revolutions per minute, and drilled with oil passages for full pressure lubrication to every bearing.
Four main bearings supported it.
The connecting rods were heavy duty, built to handle the kind of punishment that comes from hauling ammunition through Korean mountain passes.
Not just survive, survive abuse.
The overhead valves were actuated by pushrods, nothing exotic.
The cylinder head design was conventional, and that was actually a limitation hot rodders would later fight against.
But we will get there.
The 302 was the largest raised deck engine in GMC’s Jimmy 6 family.
In civilian specification, it produced 160 horsepower at 3,600 revolutions per minute, and 280 pound-feet of torque at 1,600 revolutions per minute.
280 lb ft at 1,600 revolutions per minute.
That torque curve hit the floor early and stayed there.
Exactly what a truck hauling military cargo through mountain terrain needed.
And as it turned out, exactly what a hot rod needed to launch off the line.
The military contract eventually wound down.
From 1952 to 1960, GMC manufactured the civilian 302 engine, not sealed, with a mechanical fuel pump and a standard oil pan.
And it found its way into medium-duty commercial trucks, construction sites, loading docks, long-haul freight, places where reliability mattered more than style.
But someone noticed something.
Hot rodders in California, always hunting for the next overlooked platform, started pulling these engines out of decommissioned trucks.
And when they started experimenting with multi-carburetor intakes, ported heads, and high-compression piston sets, the numbers surprised everyone.
This wasn’t supposed to be a performance engine.
It was supposed to haul cargo.
Instead, it started winning races.
The 1950s drag racing scene was pure chaos in the best possible way.
No official class structures for obscure engines, no rule book that said an inline six couldn’t beat a V8.
If you could build it and it was fast, you ran it.
The GMC 302 turned out to be very fast.
There was one obstacle, though.
And it almost stopped the whole story cold.
Like all GMC and Chevrolet inline six engines of that era, the 302 came from the factory with Siamese ports.
Just three intake ports and four exhaust ports shared across six cylinders.
For a truck engine making steady torque at low rpm, that was fine.
For a race engine trying to breathe at high rpm, it was a ceiling.
The engine could not get enough air and fuel in fast enough to make real power.
That’s where Wayne Horning came in.
Horning was a land speed racer and a mechanical engineer who worked at Lockheed Aircraft.
He understood air flow the way most people understand breathing.
And he saw what the 302 could become if you gave it lungs.
Horning developed performance cylinder head specifically for the Jimmy 6 family.
12-port designs that gave each cylinder its own dedicated port.
Individual ports.
Proper air flow.
For the first time, the 302 could breathe like a race engine.
Multi-carburetor manifolds let racers stack two, three, sometimes four carburetors on top.
The square bore and stroke ratio meant the engine did not resist high revolutions per minute the way most truck engines did.
Properly built, a 302 could spin well past 6,000 revolutions per minute for a truck engine.
In the 1950s, that was essentially unheard of.
The aftermarket kept growing.
Nick Arias Jr.
Became another pioneer in the 302 racing world, developing aluminum head castings that pushed the platform even further.
In peak tune, builders reportedly extracted over 270 horsepower from the 302 through head work, aggressive valve work, and careful carburation.
Against small-block V8 engines that were stock or mildly modified, a built 302 was competitive, sometimes dominant.
Wayne Horning even tried to qualify at the Indianapolis 500 with the 12-port GMC inline six.
Let that land for a second.
A truck engine at Indy.
The engine earned a nickname in six-cylinder racing circles, the Jimmy.
And then it went to Bonneville.
In 2006, Joe Fontana took a GMC Jimmy-powered car to Bonneville Speed Week and joined the 200 mph club running 255 mph across the salt flats.
Read that again.
A GMC inline six.
The same engine family that started life hauling military cargo.
255 mph across the Bonneville salt flats.
The Jimmy did not just keep up with the hot rods.
It became one.
By the early 1960s, GMC moved to its new V6 family.
A lighter, more compact, cheaper to manufacture design better suited for commercial trucking.
The 302 inline six quietly faded from production.
Not retired with fanfare.
Just discontinued.
That is often how it goes with the best engineering.
Nobody throws a party.
They just move on to the next thing.
GMC didn’t put its 302 inline six into light-duty pickups.
So, if you’re looking for one today, you’re hunting through 1952 to 1960 medium-duty trucks.
Workhorses that spent their lives at construction sites, loading docks, and military motor pools.
Finding one in decent condition takes patience.
Finding one with original numbers takes longer.
That obscurity is part of the 302’s identity.
It was never mass-produced for the consumer market.
It was never advertised at dealerships.
It wasn’t in the car magazines next to the Corvette V8 or the Chrysler Hemi.
It existed in a different world.
The world of people who actually use their vehicles for work.
And that world doesn’t leave the same paper trail.
Which means most automotive enthusiasts have never heard of it.
Which honestly makes finding one even more satisfying.
Here’s what the GMC 302 inline six actually represents.
Stripped of all the nostalgia.
It’s proof that the best performance engines aren’t always the ones that were designed to be performance engines.
GMC engineers in 1951 were solving military problems.
Durability under submersion, torque for mountain terrain, reliability across extreme cold and extreme heat.
They weren’t thinking about quarter-mile times or Bonneville records.
They were thinking about troops getting supplies through, no matter what.
But the engineering decisions they made to solve those problems, the forged rotating assembly, the square bore and stroke, the heavy-duty connecting rods, those decisions created a foundation that racers could exploit for decades afterward.
That’s the thing about overbuilding.
When you design something to survive punishment, you accidentally build something that can handle power.
You create head room.
Racers find that head room and they fill it.
Aftermarket support for the 302 today includes upgraded carburetors from Edelbrock and Holley, electronic ignition conversions, and custom stroker kits that push displacement higher using off-the-shelf crankshafts and pistons from compatible GMC engines.
The engine isn’t dead.
It’s just rare.
There’s a community of builders and restorers who still treat it with the same seriousness the military mechanics did in 1952.
A 302 sitting in a restored GMC medium-duty hauler sounds different from anything modern.
That deep unhurried exhaust note, six cylinders firing in a long row, evenly spaced, there’s nothing quite like it.
It doesn’t scream.
It doesn’t need to.
It just pulls.
The GMC 302 inline six went to war and came back to race.
It powered deuce-and-a-half trucks through some of the worst terrain the Korean Peninsula had to offer.
It powered a race car to 255 mph on a salt flat in Utah.
And somewhere in between it made hot rodders in California rethink everything they knew about what a truck engine could do.
It was never famous.
It was never marketed as an icon.
It just worked harder and longer than almost anyone expected.
That’s the Jimmy six.
That’s the 302.
And that’s exactly the kind of engine that deserves to be remembered.
