How the L98 V8 Saved the Corvette From the Darkest Era
In the 1980s, amidst the bleak power crisis era that was choking American muscle engines, the legendary Chevrolet Corvette stood on the brink of fading away.
But then a savior appeared.
Not only pulling this iconic vehicle out of the performance meer, that V8 machine also dominated brutal racetracks to the point that the organizers had to make an unprecedented decision, banning it from competition for being too unbeatable.
We are talking about the L98.
So what in the engineering design helped this engine create a revolution in peak performance amidst the strictest emissions regulations in history?
And how could a machine born during a dark era become the grandfather that laid the great foundation for the legendary LS engine generations that followed?
The emergence of the L98 stemmed from the major upheavalss of the 1970s.
This was the period when the US government implemented strict emissions and fuel economy regulations, inadvertently dealing a heavy blow to the automotive industry, particularly small block engines.
This tightening forced engineers to continuously lower compression ratios and choke intake and exhaust systems to meet legal standards.
As a result, the power output of America’s premier sports car declined severely year after year.
The crisis bottomed out in 1980 and 1981 when the maximum output of the car in this lineup dropped to just 180 and 190 horsepower, respectively.
Public expectations were pinned on 1984 when the all-new C4 generation debuted with breakthrough improvements in chassis and aerodynamics.
Instead of delivering a breakthrough in performance, Chevrolet equipped this model with an engine using the Crossfire injection system.
Despite adopting a new design, this system produced a mere 205 horsepower.
Car buyers quickly realized that the modern appearance did not match the actual performance at all, creating a massive wave of disappointment regarding power.
Faced with the pressure to regain its position and thoroughly solved the performance puzzle, the automakers leadership understood that they needed a complete alternative solution.
By 1985, Chevrolet officially introduced the L98 engine, featuring a modern fuel injection system.
Putting this engine into production was a decisive move to address the prolonged power crisis, directly reestablishing the car lines standing in the market.
Chevrolet built the L98 engine on a basic but carefully calculated mechanical platform.
This was a V80HV configuration engine with a cylinder displacement of 5.7 L, equivalent to the 350 C in specification.
The internal valve train used a system of two valves per cylinder to carry out the intake and exhaust process.
The geometric parameters inside the cylinders were determined with a piston diameter of 4.00 in and a piston stroke of 3.48 in.
In this first production version, the manufacturer set the initial compression ratio at 9.0 to1.
Regarding manufacturing materials, the entire engine block as well as the cylinder heads of the 1985 version were cast from cast iron to ensure rigidity during operation.
The combination of the technical specifications mentioned above helped the machine achieve an initial power level with a maximum output of 230 horsepower at 4,000 revolutions per minute.
The engine’s pulling power was clearly demonstrated through the torque specification, reaching 330 lb feet at the 3,200 revolutions per minute threshold, directly correcting the lack of pulling power in previous models.
The key factor behind this performance lay in an all-new fuel delivery system called tunedport fuel injection, commonly abbreviated as TPI.
Instead of using old fuel distribution mechanisms, the TPI system delivered fuel injection directly into each individual cylinder, completely controlled by the ECM engine control computer.
This upgrade in control technology helped increase performance by 30% compared to the predecessor generation.
At the same time, the computer’s precision also brought about good fuel economy, helping the car achieve a consumption rate nearing the 30 mp gallon threshold when traveling on the highway.

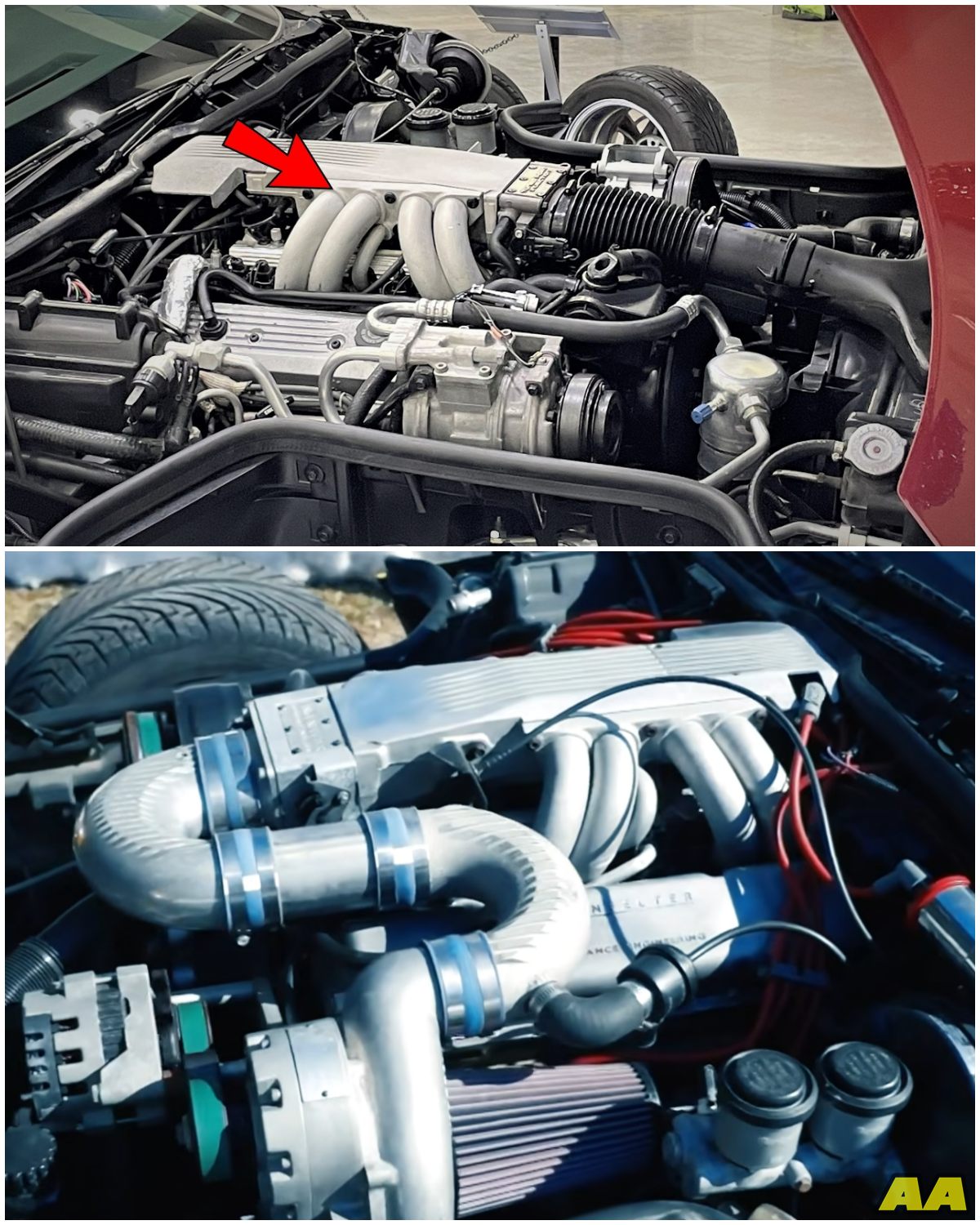

In addition to the fuel injection system, the machine’s operational efficiency also depended on the air intake design.
The system was arranged to draw cool air flow from right in front of the radiator, helping the air flow stay away from the direct heat radiating from the engine block.
This cool air flow traveled through the sensor, passed through the throttle body, and was then forwarded into eight cast aluminum runners designed to curve down below the fuel rails.
This design ensured optimal intake air flow and pressure for the combustion process inside the cylinders.
Thanks to its advantages in fuel control and air intake technology, this engine was immediately chosen as standard equipment for all Corvette models produced between 1985 and 1991.
The uniform application across Chevrolet’s flagship sports car line showed that the manufacturer placed great trust in the stable operational capability of this new mechanical structure.
Not stopping at a single car line, General Motors continued to expand the application scope of this machine to other sports car segments to optimize commercial performance.
From 1987 to 1992, the L98 officially appeared in the powerful optional equipment list for the configuration of the Chevrolet Camaro line, exemplified by versions such as the iRock Z28, while also being equipped on the Pontiac Firebird.
Sharing the same engine block helped these four- seat muscle cars achieve a significant step forward in torque specifications and actual power output.
Beyond the commercial versions rolling off the factory floor, the solid foundation of this machine also attracted attention from independent performance tuning entities.
The renowned tuner Callaway decided to choose the L98 engine as the core platform to develop the Callaway twin turbo Corvette supercar model.
A professional engineering firm utilizing this structure as the bedrock for a twin turbocharged system proved the structural strength as well as the performance potential of the base engine manufactured by Chevrolet.
To maintain the competitive position for the car lines, Chevrolet continuously implemented technical upgrades for the L98 engine by model year.
In 1986, the first major improvement was applied by replacing the original cast iron cylinder heads with ones manufactured from aluminum material.
This change not only helped reduce 40 lb of the machine’s overall weight, but also allowed engineers to increase the compression ratio to 9.5 to1, directly adding 5 horsepower to the power output.
Moving into 1987, the manufacturer focused on optimizing the valve train mechanism inside the engine.
The old system was completely replaced by a roller hydraulic valve lifter configuration.
Applying this new technical solution helped minimize friction during operation, thereby raising the maximum power specification to 240 horsepower and pushing the pulling torque to a threshold of 345 lb feet.
By 1988, the aluminum cylinder heads were further refined in design to optimize the air flow through the intake and exhaust ports.
At the same time, the cam shaft was also revised to coordinate synchronously, helping raise the overall power specification to the 245 horsepower mark.
The improvement cycle of this machine reached its peak in 1990 when the manufacturer implemented a change to the intake air metering system.
The adjustment to the inlet sensor system allowed the engine’s compression ratio to be raised up to a level of 10.25 25:1 helping the machine achieve its highest maximum power output in its life cycle of 250 horsepower.
The continuous improvements in technical specifications and realworld operational performance brought an incredibly positive response from the consumer market.
Right in its first year of release, the L98 engine proved its mechanical capability by pushing the 1985 C4 Corvette to a top speed of 150 mph, equivalent to approximately 241 kmh.
With this figure, this was the fastest standard configuration Corvette up to that time, directly changing the preconceptions of customers from previous generations and reaffirming the vehicle line’s operational capability on the streets.
Not stopping at commercial figures, the realworld capability of this machine also created an overwhelming dominance on professional racetracks.
Thanks to possessing superior pulling torque combined with high durability under harsh operating conditions, vehicles equipped with the L98 engine continuously won victories and proved to be unbeatable by rivals in the same class.
This absolute dominance led to a special decision from the racing sanctioning body.
The SECA had to officially ban the model using this engine block from continuing to compete in the showroom stock category while simultaneously forcing the establishment of a separate independent racing series exclusively for this car line in order to restore balance to other competitive segments.
After years of dominating competitive segments and asserting its capability in the commercial market, the L98 engine officially closed out its life cycle at the end of the 1991 model year.
This withdrawal marked an inevitable technological transition as General Motors needed a new, more powerful architecture to enter the next performance era.
By 1992, the LT1 engine generation was officially introduced to replace the L98, fulfilling the mission of pushing the power specifications of the flagship sports car line back above the 300 horsepower threshold.
Despite being replaced by its successor generation, the mechanical values that the L98 created still left a profound mark.
This engine block is recognized as a monument of breakthrough performance in the 1980s, a period when balancing power and strict emissions regulations was an extremely difficult puzzle.
Thanks to its solid structure and pioneering engineering solutions, the L98 has been honored by enthusiasts as the grandfather of the renowned LS engine generations that followed.
