Was the Oldsmobile V5 Diesel the Weirdest Engine Detroit Ever Tried?
In the 1970s, when CAFE standards were passed by the US Congress in 1975 and began applying to the 1978 model year, it wasn’t just a fuel economy regulation.
It was a ruler slammed straight into the forehead of American automakers.
And General Motors, instead of redesigning from the ground up, chose to patch things together just to make it through the storm of certification tests and scorecards.
A textbook example of this get it done approach sat right under the floor pan.
The Turbo Hydroatic 200.
At its core, the TH200 was developed by GM as a lighter, lowerduty version of the TH350.
Born in the post oil crisis era to serve fuel economy and weight targets, it showed up starting with 1976 models and was used across many smaller car lines.
But in the race for fuel economy and reduced losses, there was a period when GM installed the TH200 in full-size cars like the Chevrolet Impala with a Chevrolet 305V8 up front.
The problem was this.
A transmission biased toward light duty work was forced to carry a 5.0 0 L V8 in a heavy body under real American use conditions, towing, hauling, long highway runs, and [music] constant stop and go.
The result was simple and brutal.
Reliability dropped.
It didn’t necessarily fail immediately in every car, but when you put it in the wrong design context, the risk [music] grows into the personality of the drivetrain.
In 1978, GM launched Oldsmobile’s 350 C in V8 diesel as a quick answer to fuel economy pressure.
On paper, it sounded reasonable.
American cars were heavy.
They needed torque and diesel promised thrift on the open road.
But the nature of this project was a forced conversion.
Taking the Oldsmobile 350 gasoline engine as the foundation and turning it into a diesel to save development time and production cost instead of designing a diesel properly from the start.
The first fatal engineering mistake was in the ceiling interface between the block and the cylinder heads.
A diesel engine has a higher compression ratio and creates far greater headlift forces than a gasoline engine.
Yet, the headbolt design on the 350 diesel did not ensure clamping force that stayed durable over time in that harsh operating environment.
The consequences were obvious.
Head gaskets blew.
Leaks returned again and again.
And once the seal was compromised, one failure often dragged another behind it.
The second mistake was in the fuel system, specifically the lack of a water separator.
Diesel fuel back then was prone to water and sediment, especially when the supply chain and fuel standards weren’t as stable as they would later become.
Without a water separator, it meant customers only had to fill up once with water contaminated fuel, and the injection system could be ruined quickly.
Precision components would corrode, stick, wear abnormally.
Then the car would become hard to start, lose power, and soon require costly repairs.
And the driving feel made many people lose hope within the first week.
A harsh knocking clatter, strong vibration, and black smoke when the injection system had worn or drifted out of calibration.
In terms of performance, this engine was rated at about 120 horsepower at first and dropped to about 105 horsepower in later years.
Torque fell along with it.
Put into cars weighing roughly 4,000 lbs.
It delivered a kind of slowness that wasn’t just annoying.
At times, it could be dangerous when merging or passing.
After the fall of the 350 diesel, but instead of fixing the core problems at the route, they entered a phase one call, downsizing in desperation, reducing displacement, reducing expectations, and then hoping the market would forgive them.
1979 was a very characteristic long slide.
GM introduced a 4.3 L V8 diesel that lasted exactly one year, like a big question mark.
About 90 horsepower and roughly 160 lb feet of torque might sound acceptable in a small car, but in reality, it showed up even in cars that demanded smoothness and easy pulling power.
Imagine paying for a luxury car, expecting a calm, solid feel, and getting a drivetrain that has to strain itself just to haul a heavy body through everyday situations.
The problem wasn’t only that it was slow.
It was the feeling that the car didn’t match the name on the hood.
By 1982, GM shifted to a different direction.
Mass adoption through a 4.3 L 6-cylinder diesel.
On paper, it made about 85 horsepower and roughly 165 lb feet of torque.
Still prioritizing economy over performance.
And true to a desperate effort, they stuffed it into everything from front-wheel drive midsize platforms to familiar rearwheel drive coupe/sedan lines.
The idea was clear.
Increase the number of diesel equipped cars to [music] pull up the corporation’s fleet average fuel economy under standards pressure.
But life doesn’t run on spreadsheets.
When an engine already burdened with a bad reputation for durability and driving feels spread across too many platforms, dissatisfaction spreads with it.
Mainstream buyers can’t swallow the repair bills and the hassle.
Luxury buyers are even less willing to accept a drivetrain that’s loud, rough, and so weak you have to plan every merge.
Downsizing didn’t create refinement.
It only sharpened the sense of missing power while the doubts about reliability were still there.
By 1985, the market had effectively finished voting.
Customers couldn’t take it anymore, and GM killed off the entire passenger car diesel program of that era.
But the irony is that right before the door closed, they still managed to create an even stranger idea to try to escape the tight engine bay packaging problem and fuel economy pressure, a V5 diesel engine.
The target was squarely the X-C cars like the Citation, Phoenix, Skyllock, and Omega, where a transverse engine layout made everything feel cramped.
With a tight engine bay, the engine had to be compact, easy to arrange accessories around, and most importantly, compatible with existing production lines.
Instead of designing something entirely new, GM chose the familiar route.
Reuse an existing foundation and then cut it down to get the shape they wanted.
And this cutting down was almost literal.

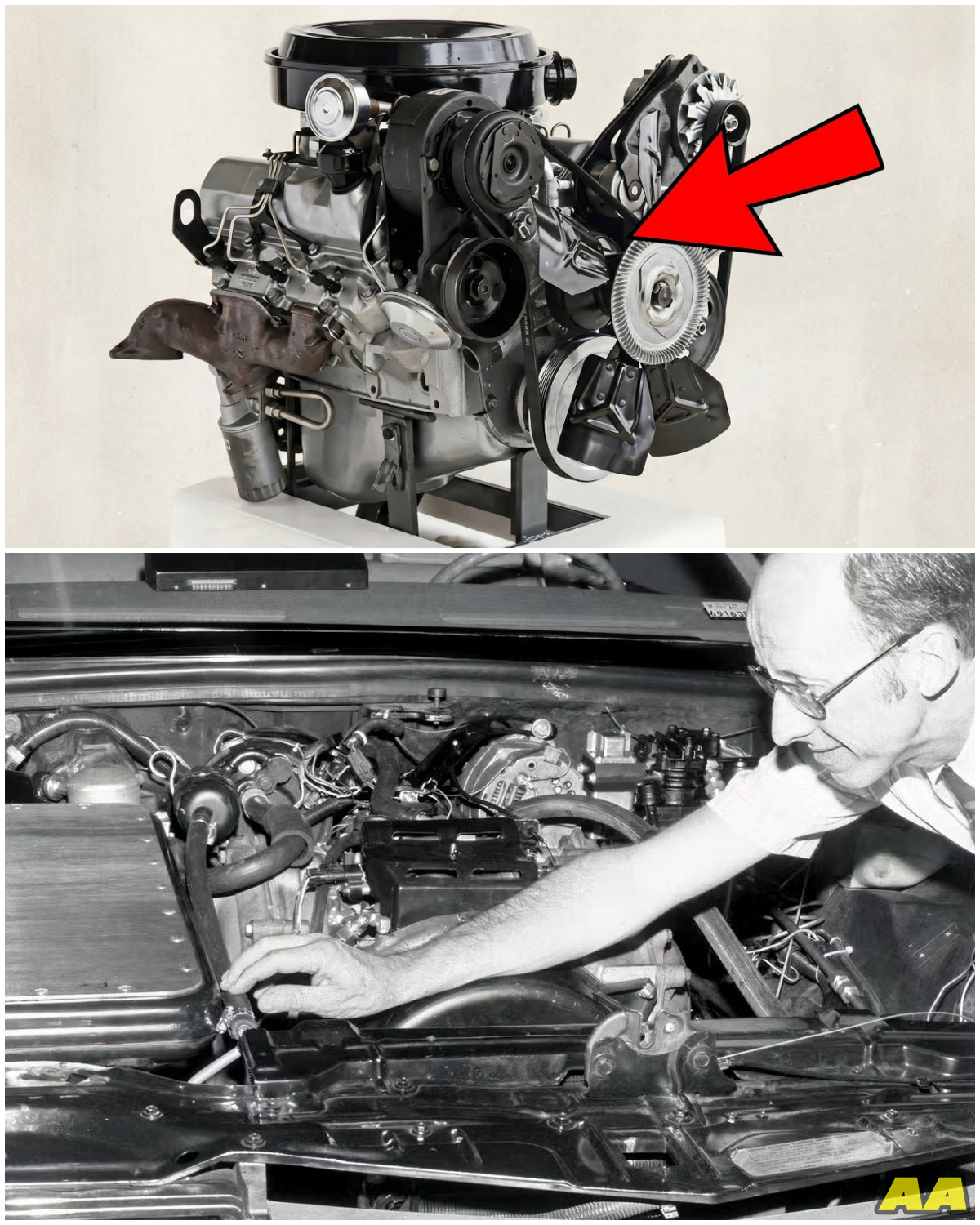

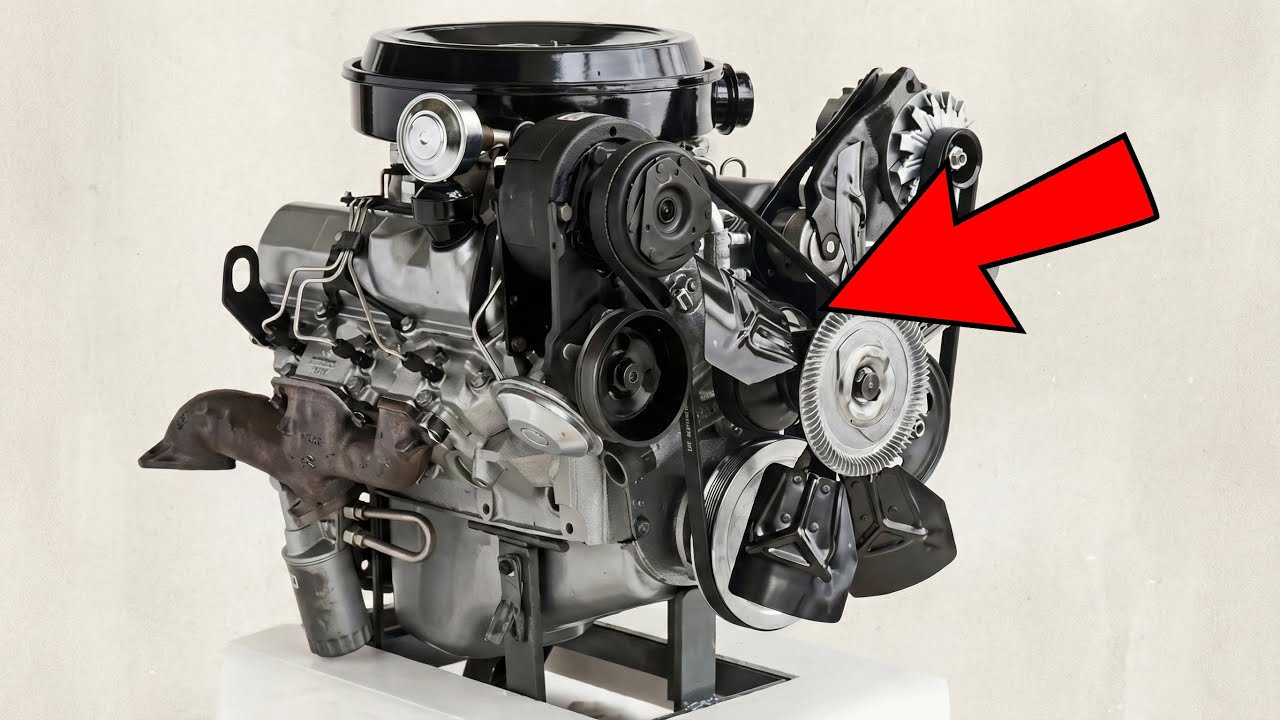

They seemingly took a sixcylinder diesel as the base, then removed one cylinder to make five.
The result was an inherently lopsided layout.
Three cylinders on one bank and only two on the other.
That imbalance created a strange empty space right where the sixcylinder should have been.
And GM used that space like a pocket to cram in accessories, possibly the alternator or a vacuum pump depending on the layout they were experimenting with.
It made the packaging mindset obvious.
Any empty space becomes a place to mount something as long as it’s compact and it fits.
With the narrow 60° V angle, a Bosch type fuel injection pump couldn’t be tucked neatly between the two [music] cylinder banks the way you’d typically see in a clean layout.
So, it had to be pushed back into a hanging position near the empty space left by the deleted cylinder, like something temporarily suspended just to keep it from interfering.
One look at that arrangement and you understand immediately this was a packaging workaround, not a design born from calm, disciplined engineering.
But the death of the V5 diesel didn’t come because the idea was too strange in the headlines.
It died for three very real reasons in the test lab.
Vibration, performance, and the reason for its existence evaporating the moment the market turned its back.
First was the balancing problem.
A V engine with an odd number of cylinders already carries an inherent offness in firing rhythm and inertial forces.
In theory, you can work out a crankshaft design, V angle, and firing order to reduce vibration, but the price is usually more auxiliary parts, more counterweights, more things that need careful tuning.
Even people who have written about and discussed this engine mention vibration as an annoying obstacle because the size advantage over a six-cylinder isn’t large while the difficulty clearly rises.
And vibration isn’t just annoying.
In a small passenger car with a transverse engine, vibration brings noise.
It leads to cracked and torn rubber mounts.
It creates a cheap feeling in the cabin.
With GM’s diesel reputation already fragile at that point, they didn’t have the right to release an engine that felt wrong the moment the driver turned the key.
Second was power so weak it practically contradicted itself.
This V5 diesel prototype is described at roughly 70 horsepower and about 111 lb feet of torque.
Enough to get a car moving, but not enough to make customers forget their old diesel memories.
Meanwhile, at the same 2.5 L displacement, GM’s common four cylinder gasoline engine of the era was already around 90 horsepower and 132 lb feet.
And here’s the killer question.
Why build an engine that’s more complex, harder to balance, harder to manufacture?
Only to end up with a result weaker than the baseline gasoline engine.
If diesel didn’t deliver strength, at minimum, it had to deliver clearly better economy and convincing durability.
But after the failures that came before, GM no longer had the trust credit to ask customers to be patient one more time.
Third was a lastminute waste, but the kind of waste you see from a corporation already in retreat.
According to some compiled accounts, the project reached the point of finishing prototypes and proving compact packaging.
But in the end, the production tooling was never ordered, meaning it was stopped right at the gates of the assembly line.
That fits the market reality.
By the mid 1980s, GM’s passenger car diesel program was fading out and then ending.
So, shutting down, a hard to sell variant, was easy to understand.
And there was one final knife twist.
The V5’s reason to exist, was blurred out by other solutions inside GM itself.
The 4.3 L 6-cylinder diesel had already been installed in both front-wheel drive and rearwheel drive cars, meaning that in packaging terms, GM could still make another option, fit without jumping to something as odd as a V5 architecture.
When you already have something easier to produce, easier to explain, and the market already has a bias against diesel, the V5 becomes a gamble that isn’t worth it.
Finally came the backdrop of fuel economy standards and public taste.
After the sharp runup in the early 1980s, passenger car fuel economy targets were relaxed for the 1986 to 1989 model years, easing the pressure to have diesel at any cost.
When pressure drops, the first things to get cut are always the projects that are both risky and hard to sell to customers.
And then after all those half measures, what remained wasn’t a successful production line, but an artifact that reminds people just how confused GM once was.
Today, that V5 diesel prototype is recorded as being on display at the RE Olds Transportation Museum in Lancing, Michigan, sitting there as living evidence of a period when engineering was dragged along by pressure instead of being guided by maturity.
It represents the American auto industry.
When boxed in by standards, by the market, by product cycles, it becomes very easy to choose the just get it done path.
But machinery doesn’t forgive haste.
A diesel engine demands strict discipline.
From head clamping force and material strength to protecting the fuel system.
Without that foundation, every cut down effort only creates another design that’s hard to explain, hard to refine, hard to sell, and ultimately gets shelved by the corporation before it ever reaches production.
