The DARK Truth About the CAT 3208: What They Kept Quiet
The CAT 3208 diesel engine has been a topic of debate and discussion among operators, mechanics, and enthusiasts for decades.
Some people regard it as a solid workhorse, while others dismiss it as a throwaway engine that cannot be trusted.
This engine found its way into various applications, including trucks, buses, boats, and even farm equipment, leaving many to wonder about its true nature.
What is the real story behind the CAT 3208?
Let’s delve into the details that many people may not know, shedding light on why this engine became so ubiquitous across multiple industries.
The CAT 3208 was introduced in 1975 as a V8 diesel engine designed for medium-duty applications.
With a displacement of 10.4 liters (636 cubic inches), it featured a bore of 4.5 inches and a stroke of 5 inches.
The engine’s design included two cylinder heads and a counterclockwise rotation from the flywheel end, which required attention during installation and maintenance.
One of the most notable features of the 3208 was its parent bore block design, which meant that the cylinders were cast directly into the engine block without removable liners.
While this design simplified manufacturing and reduced weight, it also made overhauls more complex and costly, as worn cylinders would require machining or block replacement instead of simple liner swaps.
The 3208 utilized a sleeve metering fuel injection system, differing from the scroll-type systems seen in some other CAT engines.
This injection system contributed to the engine’s performance characteristics, especially in applications requiring consistent power output.
Cooling capacities varied based on the model; naturally aspirated versions held approximately 12.5 gallons, while turbocharged models required around 14.8 gallons to manage the additional heat generated.
Oil capacities ranged from 3.2 gallons in naturally aspirated engines to 4 gallons in turbocharged versions, with CAT recommending oil changes every 250 hours—guidelines that operators sometimes extended.
In terms of weight, the 3208 ranged from about 1,600 lbs in its base form to nearly 2,000 lbs in higher horsepower marine configurations.
The engine was designed to deliver power at higher RPMs, with an optimal range between 2,800 and 3,000 RPM, making it suitable for applications like trucks and boats but less effective for tasks demanding low-end torque, such as farming.
In terms of performance, the horsepower of the 3208 varied depending on the application.
In trucks and farm equipment, it typically produced between 180 and 250 horsepower, while marine applications saw outputs reaching up to 435 horsepower, necessitating enhanced cooling and fuel systems to handle the increased stress.
The engine’s compact design allowed it to fit in various vehicles, including trucks, buses, and combines, with a favorable power-to-weight ratio for medium-duty applications.
However, the CAT 3208 was not without its drawbacks.
One significant issue was its lack of low-end torque, which is crucial for tasks like plowing or hauling heavy loads at low speeds.
Additionally, its high RPM design was less than ideal for applications that required sustained low-speed operation.
Cooling issues also plagued the 3208, with many problems stemming from how equipment manufacturers designed their cooling systems.
When an engine that ran hot was installed in machines not equipped to dissipate that heat, performance issues arose.
There were significant design differences between naturally aspirated and turbocharged versions of the 3208.
Naturally aspirated blocks typically lacked oil cooling jets under the cylinders, while turbocharged blocks featured different castings to accommodate the turbocharger mount.
These variations influenced compression ratios and oil pan capacities as well.
Maintenance of the 3208 was complicated by its parent bore design, leading to costly overhauls compared to engines with replaceable liners.
This complexity led some to label the 3208 as a throwaway engine, although this characterization was not entirely fair.
With proper care and appropriate application, the 3208 could achieve impressive longevity, often surpassing 10,000 operational hours.
Practical considerations for engine swaps between different vehicle types, such as combines and trucks, included varying front crank pulley configurations, oil filter types, and minor differences like dipstick locations.
While the overall engine fit between components like the radiator and transmission was generally good, specific original equipment manufacturer castings could introduce minor variations.
The CAT 3208 served well in various applications, reflecting the engineering priorities of its time by balancing performance, weight, and manufacturing considerations.
While it had its limitations, particularly in low-speed, high-torque scenarios, it proved to be a reliable workhorse in the right settings.
Opinions on the 3208 are mixed; for some, it was a dependable, easy-to-maintain engine that could deliver years of service when used correctly.
For others, it was a frustrating, underpowered design that struggled in certain applications and was deemed not worth rebuilding once it wore out.
In fire service, the 3208 found a solid following, with many fire departments across North America relying on it in their pumpers and rescue trucks.
The engine’s ability to deliver steady power at higher RPMs matched the demands of emergency response, and operators appreciated its straightforward design, making it easy to maintain.
It may not have been flashy, but it got the job done.
In the medium-duty truck market, it powered models like the Ford L series and GMC’s medium-duty lines.
Operators who stayed within the engine’s limits, keeping loads reasonable and running at higher RPMs, often reported good service life, with some engines surpassing 200,000 miles without significant issues.
However, pushing the engine beyond its design limits often caused problems.
Lugging it at low RPMs, overloading it, or neglecting maintenance led to overheating, blown head gaskets, and accelerated cylinder wear.
In marine applications, the 3208’s strengths became evident.
Boats typically operate at steady, higher RPMs for long periods, which suited the engine’s high-revving design.
With proper installation and routine maintenance, 3208s in marine service routinely logged 20,000, 30,000, and, in some cases, over 40,000 hours.
The compact V8 layout, combined with the availability of turbocharged models with high horsepower, made it a popular choice for many vessels.
However, the story was different on the farm.
While some agricultural equipment, notably certain Massey Ferguson four-wheel-drive tractors and New Holland combines, used the 3208, the engine’s characteristics often clashed with farming demands.
Farmers reported issues with overheating during fieldwork, especially in machines not designed with adequate cooling systems.
The engine’s high RPM power curve and lack of low-end torque made it less effective for tasks requiring heavy pulling or sustained lugging.
When engines did wear out, the parent bore block design requiring costly machining or block replacement led to the “throwaway engine” label that still lingers today.
Much of the 3208’s reputation, good or bad, comes down to how it was used.
In the right application, such as trucks, boats, or fire trucks where engines operate at higher RPMs with consistent loads, the 3208 could be a solid performer.
In the wrong application, particularly in farming where engines are lugged under heavy loads at low RPMs, it could become a costly problem.
Adding to the mixed opinions was a lingering confusion over the 3208’s true identity.
Some operators remembered them as CAT engines, while others insisted they were something else entirely.
Some recalled seeing them painted blue or labeled with a different name, while others swore they were in Ford tractors, only to be met with flat denials.
This uncertainty and the varying stories from the field added to the engine’s complex reputation.
While the 3208 struggled in certain land-based applications, it found a near-perfect home on the water.
For many marine operators, the engine’s design was precisely what they needed.
The 3208’s high RPM power curve, often criticized in trucking and agricultural use, matched the demands of marine propulsion.
Boats require engines that can run at steady, higher RPMs for long stretches, and that’s where the 3208 excelled.
Its peak power range between 2,800 and 3,000 RPM was ideal for cruising speeds on many vessels.
Cooling was another factor; marine engines are typically cooled by seawater systems, providing the 3208 with a reliable source of cooling that land-based equipment often lacked.
The overheating issues that plagued 3208s in tractors and trucks were not a concern at sea, allowing the engine to operate efficiently at higher loads without the risk of heat-related failures.
The 3208’s compact V8 layout also made it a favorite for boat builders and retrofits.
Its relatively small footprint compared to inline-6 alternatives allowed it to fit in tight engine rooms where space was limited.
For operators seeking more power, the high-horsepower turbocharged version was more than sufficient for most fishing boats, tugs, and yachts.
In the marine world, the 3208 was not seen as a throwaway engine; it was a reliable, well-matched power plant delivering consistent performance, decent fuel efficiency, and a manageable maintenance schedule.
With proper installation and care, it could run for years in boats of all kinds.
One of the biggest complaints centered around the 3208’s parent bore block design.
Unlike many heavy-duty diesels that used replaceable cylinder liners, the 3208 cylinders were cast directly into the block.
This simplified manufacturing and reduced weight, but it created a major problem when the cylinders wore out.
Instead of a straightforward liner replacement, operators faced the costly option of machining the block to accept oversized pistons or scrapping the engine entirely.
This design choice contributed to the 3208’s throwaway engine reputation.
However, some experienced repair shops developed workarounds.
A few machinists found ways to install dry sleeves into worn cylinders, salvaging blocks that otherwise would have been discarded.
While not a factory-approved solution, this approach provided an option for operators willing to invest the time and expense into saving a worn engine.
It wasn’t common practice, but it demonstrated that the 3208 wasn’t always a lost cause when the bores wore out.
The 3208 also used a two-ring piston design in its early models.
This included one compression ring and one oil control ring, which was unusual for diesel engines at the time.
While this design helped reduce friction and improve efficiency, it also led to increased blow-by and higher oil consumption, especially as engines aged.
Later versions and aftermarket rebuild kits sometimes switched to a three-ring piston design to address this issue, but by then, the damage to the engine’s reputation was already done.
Cooling system performance was another recurring problem.
While the engine itself ran hot by design due to its high-revving nature, many of the machines it was installed in didn’t have cooling systems properly matched to handle the heat.
This was especially true in agricultural equipment and some truck applications.
Overheating led to head gasket failures, warped cylinder heads, and reduced engine life.
The 3208’s high RPM power curve also limited its versatility.
Unlike larger inline-6 engines, such as the Cummins 855 or John Deere 466, which were designed for heavy torque at low speeds, the 3208 made its power higher in the rev range.
This worked fine in trucks or boats that ran steadily at higher speeds, but it made the 3208 ill-suited for tasks like plowing or heavy pulling, where torque at lower RPMs is critical.
Another issue was the sleeve metering fuel injection system.
While innovative, it was more sensitive to wear, contamination, and maintenance than other fuel systems.
Water in the fuel or dirty filters could lead to premature wear of the injection sleeves, causing poor performance or complete failure.
These flaws weren’t always a problem; when the 3208 was used in the right application and well-maintained, it could deliver thousands of hours of reliable service.
But when used outside its design limits, the engine struggled.
Farmers who expected it to perform like a big-bore inline diesel were often disappointed.
Truckers who overloaded it or lugged it at low speeds ran into problems.
And operators who skipped maintenance, like timely oil changes, valve adjustments, and fuel system care, found out the hard way that the 3208 didn’t tolerate neglect.
Over the years, many operators have scratched their heads over the 3208.
Some remember seeing them in Ford trucks painted blue, labeled as the Ford V636.
Others insist it was a Caterpillar engine all along, leading to confusion stemming from the unique partnership between Ford and Caterpillar and the way the engine was initially branded.
At that time, Ford faced a growing problem; they needed a reliable diesel engine for their medium-duty trucks.
Ford’s gasoline engines, like the 534, were falling behind in a market that was rapidly shifting toward diesel.
However, Ford didn’t have a diesel V8 ready for production, and developing one from scratch would take years and enormous investment.
Meanwhile, Caterpillar was working on a medium-duty diesel design, which would eventually become the 3208.
CAT had the engineering expertise but lacked a guaranteed customer to justify mass production.
That’s where the partnership began.
Ford approached Caterpillar with a proposal, needing a diesel V8 for their trucks, and they needed it fast.
Ford was willing to pay for Caterpillar’s technical knowledge; in fact, Ford reportedly funded a significant portion of the engine’s development—some estimates say up to 90%.
This deal allowed CAT to develop the engine they wanted while giving Ford an exclusive diesel option for their medium-duty truck line.

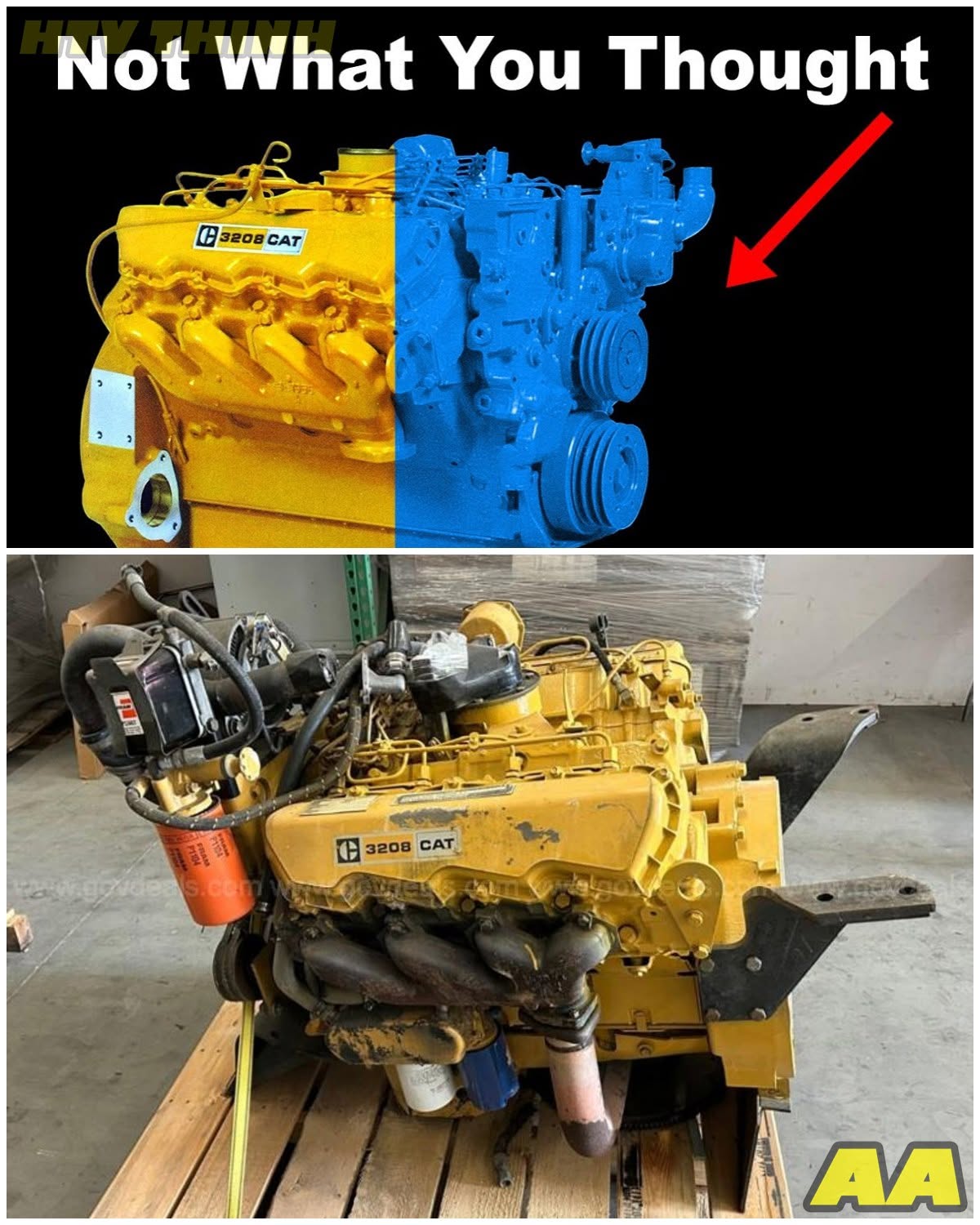

The first engines from this collaboration were not called the CAT 3208; they were labeled as the Ford V636 diesel by Caterpillar, reflecting the engine’s displacement of 636 cubic inches.
These engines were painted Ford blue to match the company’s truck branding and went into Ford L-series and C-series trucks starting in the early 1970s.
For many operators, these engines didn’t look like a CAT product; they lacked a CAT badge and were painted to match Ford’s trucks.
It’s easy to see how the confusion started.
After Ford’s exclusive period ended, Caterpillar began marketing the engine more broadly as the 3208.
The blue paint was replaced with CAT yellow, and the engine started appearing in other applications, including GMC trucks, marine equipment, and even some farm machinery.
But the legacy of that early collaboration remained.
Many operators who ran the Ford V636 thought of it as a Ford engine, while others recognized its Caterpillar roots.
Technically, both were correct; the engine was designed by CAT but developed for Ford’s needs, funded by Ford, and painted in Ford colors.
