How Cummins Built The Unkillable Engine
In the late 1980s, Dodge found itself in a precarious position.
The company’s trucks were outdated, sales were plummeting, and they were becoming a punchline in the automotive industry.
While competitors like Ford and Chevy were battling for dominance in the pickup market, Dodge’s market share had dwindled to a mere 8%.
Desperation was in the air, and the company knew it had to find a solution to revive its fortunes.
That solution came from an unexpected source: Cummins Engine Company, a manufacturer with a long history of producing diesel engines for industrial applications.
Founded in 1919, Cummins had built a reputation for creating robust engines designed to withstand the rigors of continuous operation in harsh environments.
By the mid-1980s, they had developed the B series engine family, which included the 5.9 L version that powered delivery trucks, school buses, and agricultural machinery.
These engines were known for their reliability and impressive torque, but they had never been considered for light-duty pickup trucks.
The partnership between Dodge and Cummins was born out of necessity rather than careful planning.
Dodge was in dire need of a competitive edge, while Cummins saw an opportunity to expand into a new market.
Neither company fully understood the monumental impact they were about to make on the automotive landscape.
The first hurdle was adapting the industrial engine to fit within a pickup truck chassis.
The 5.9 L Cummins was significantly larger and heavier than the gasoline engines Dodge had been using.
This required a complete redesign of the engine bay, reinforcement of the frame, and an upgrade to the cooling system.
Additionally, the transmission, initially the rugged 3-speed 727 TorqueFlite and later the overdrive-equipped A518, had to be fortified to cope with the diesel’s immense torque.
The first models, produced between 1989 and 1991, were non-intercooled, making them simpler but pushing intake temperatures to their limits under load.

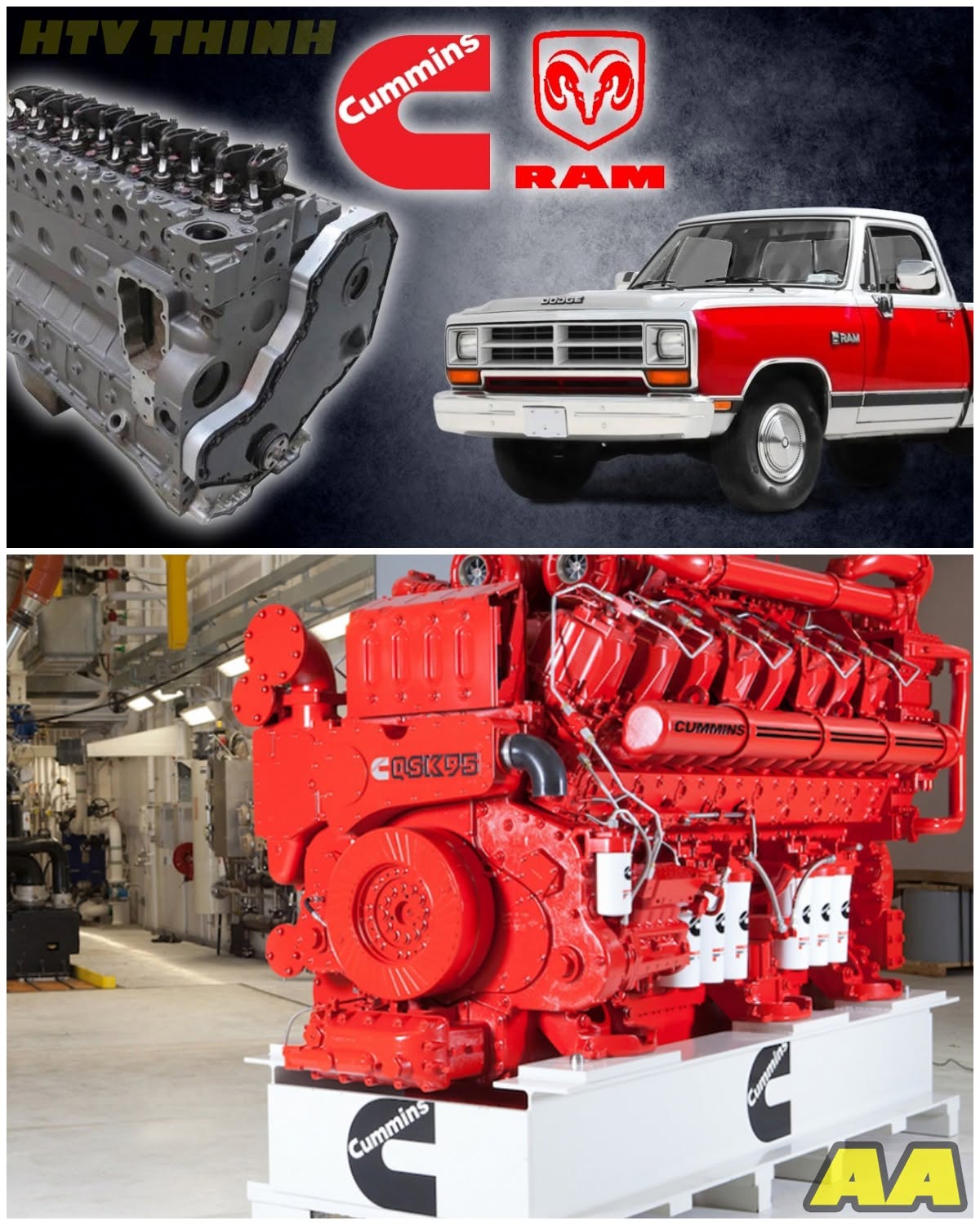

When the first Cummins-powered Dodge Ram hit the market in 1989, it was a game changer.
With 160 horsepower and a staggering 400 lb-ft of torque available at around 1,700 RPM, it offered pulling power that gasoline engines could only dream of.
However, the true magic lay in the engine’s design and construction.
The 12-valve Cummins was built using engineering principles honed through years of industrial application.
While other automotive manufacturers were increasingly turning to electronic controls and emissions equipment, Cummins remained committed to mechanical simplicity and robust overbuilding.
The foundation of the engine was a cast iron block that alone weighed nearly 1,000 lbs.
This was not the lightweight aluminum construction seen in modern engines; this was a heavy-duty iron capable of withstanding abuse that would destroy lesser engines.
The cylinder walls were thick enough for multiple boring, and the deck was designed to handle boost pressures that would crack contemporary blocks.
Internally, Cummins utilized forged steel components throughout.
The crankshaft was a massive forged steel piece weighing over 80 lbs, while the connecting rods were robust I-beams reminiscent of structural elements found in bridges.
The pistons were heavy-duty cast aluminum with steel ring carriers, and every internal component was designed with safety margins that bordered on the excessive.
The cylinder head was equally overbuilt, featuring a one-piece cast iron design that could endure the extreme pressures of diesel combustion without cracking or warping.
The valve train employed mechanical lifters and adjustable rocker arms, ensuring reliability and ease of service.
The early Dodge Cummins trucks utilized the Bosch FE rotary pump, a simple mechanical system that helped cement the engine’s reputation for reliability.
This distributor-style pump was compact, durable, and entirely mechanical, requiring no electronics, sensors, or computers.
Adjustments could be made using nothing more than screws and springs, and any competent diesel mechanic could rebuild it with basic tools.
In 1994, Cummins upped the ante with the Bosch P7100 inline pump, transforming the 12-valve engine into a legend among tuners.
The P7100 was a precision mechanical system that utilized a camshaft-driven plunger to pressurize fuel to over 10,000 PSI, delivering it to each cylinder with impeccable timing.
Controlled entirely by mechanical linkages, this pump featured individual plungers for each cylinder and allowed for infinitely adjustable fuel delivery, making it not only more reliable but also incredibly responsive to modifications.
Both injection systems provided the 12-valve engine with several advantages over their electronic counterparts.
Firstly, they were virtually bulletproof.
With no electronic components to fail, no sensors to dirty, and no computer modules to corrupt, the engine would run as long as it had fuel, air, and compression.
Secondly, the mechanical systems were far more tolerant of poor-quality fuel than electronic engines, enabling some owners to run alternative fuels in emergencies.
Farmers, for instance, discovered they could use home heating oil in a pinch.
In military scenarios, similar mechanically injected diesels have been known to run on JP8 when necessary, although this is not something manufacturers typically advertise.
Thirdly, particularly with the P pump, the mechanical system allowed for infinite adjustability.
With the VE pump, one could simply turn up the fuel screw; with the P pump, one could slide the fuel plate and tweak the AFC.
These straightforward mechanical adjustments unlocked significant performance gains without the need for electronic tuning, which would later prove crucial to the engine’s popularity within the performance community.
Early Dodge Cummins trucks were equipped with the H1C turbocharger, which was later upgraded to the HX35 in the mid-90s Pump 12 valves.
Both were fixed-geometry, mechanically controlled turbos that prioritized durability over complexity.
These straightforward systems were reliable and responsive, providing consistent boost across the RPM range without the complications of variable geometry or electronic controls.
Perhaps most importantly, the entire engine was designed to be serviceable.
Every component could be accessed with basic tools, and most repairs could be performed without removing the engine from the truck.
The injection pump could be rebuilt in a farm shop, the turbocharger serviced with hand tools, and even major internal work could be conducted with equipment that any serious mechanic would have.
This serviceability extended to the engine’s diagnostic capabilities—or rather, the lack thereof.
There were no diagnostic trouble codes, no check engine lights, and no limp modes.
If something went wrong with the engine, it either ran poorly or not at all.
Troubleshooting was accomplished through mechanical inspection and basic testing rather than computer diagnostics.
The 12-valve Cummins didn’t just power trucks; it fostered a culture.
Within a few years of its introduction, the engine had garnered a following among working-class diesel enthusiasts who appreciated its straightforward approach to power and reliability.
Farmers were among the first to embrace the 12-valve, as they needed trucks capable of pulling heavy trailers and operating in harsh conditions while maintaining longevity.
The Cummins engine delivered on all fronts, with stories of 12-valve engines crossing 300,000 or even 400,000 miles on original internals becoming commonplace.
With meticulous maintenance, some have even approached the million-mile mark.
The oil field industry became another stronghold for the 12-valve.
Workers required trucks that could withstand the extreme conditions of drilling sites—dust, heat, cold, and constant heavy-duty use.
The mechanical simplicity of the 12-valve meant that field mechanics could keep the trucks running even in remote locations where electronic diagnostics were unavailable.
Resourceful mechanics began swapping 12-valve Cummins engines into older medium-duty trucks and custom builds, creating tough workhorses capable of racking up serious mileage with proper upkeep.
The engine’s compact size, compared to larger truck engines, and its mechanical simplicity made it suitable for a wide range of applications.
The engine’s reputation for longevity led to the nickname “million-mile engine.”
While this may have initially been hyperbole, it became a reality for many dedicated owners.
The combination of overbuilt internals, mechanical simplicity, and easy serviceability allowed 12-valve engines to be rebuilt multiple times and continue running for decades.
This reliability created a secondary market that persists to this day.
Used 12-valve engines command premium prices, often selling for more than newer, more powerful engines.
Complete trucks with high-mileage 12-valve engines are sought after by buyers who value mechanical simplicity over modern conveniences.
The performance potential of the 12-valve, particularly the Pump version, also attracted a different kind of enthusiast.
The mechanical injection pump made power modifications incredibly straightforward.
With just a few turns of a screw, one could increase fuel delivery and significantly boost power output.
This led to a thriving aftermarket industry focused on 12-valve performance modifications.
Diesel performance shops discovered that the 12-valve’s overbuilt internals could handle enormous power increases.
With modifications to the injection pump, turbocharger, and fuel system, 12-valve engines could produce 400, 500, or even 600 horsepower while maintaining their legendary reliability.
This was unprecedented in the gasoline performance world, where such power increases typically required extensive internal modifications.
The drag racing community quickly embraced the potential of the Pump 12-valve.
Modified Dodge trucks began appearing at drag strips across the country, achieving quarter-mile times that rivaled purpose-built race cars.
The combination of massive torque and mechanical reliability made the 12-valve a natural choice for diesel drag racing.
Engine swaps became another popular application.
The mechanical simplicity of the 12-valve made it relatively easy to install in a variety of vehicles, and its compact size allowed for diverse applications.
12-valve engines found their way into everything from classic muscle cars to off-road buggies to marine applications.
The tuning culture that developed around the Pump 12-valve was unique in the automotive world.
Unlike gasoline engines that often required expensive electronic tuning equipment, 12-valve modifications could be performed with basic hand tools and mechanical knowledge.
This democratized diesel performance and fostered a grassroots community of enthusiasts who shared knowledge and techniques.
Internet forums dedicated to 12-valve modifications became repositories of technical expertise.
Enthusiasts documented every aspect of the engine’s operation, from injection pump timing procedures to turbocharger upgrades and internal modifications.
This collective knowledge base helped preserve the engine’s serviceability even as factory support began to wane.
By mid-1998, the writing was on the wall for the 12-valve.
Increasingly strict emissions regulations necessitated electronic controls that the mechanical injection system couldn’t provide.
Cummins introduced the electronically controlled 24-valve ISB for the 1998.5 model year, which incorporated electronic injection and modern emissions controls but still relied on a simple fixed-geometry turbocharger.
The 24-valve engine was more powerful, more fuel-efficient, and cleaner burning than its predecessor, producing 235 horsepower and 460 lb-ft of torque in its initial configuration, with later versions exceeding 400 horsepower.
By every objective measure, it was a superior engine, but the diesel community mourned the loss of the 12-valve’s mechanical simplicity.
The new engine required computer diagnostics for troubleshooting, specialized tools for service, and electronic tuning for modifications.
While it was undoubtedly more advanced, it had sacrificed the bulletproof reliability and field serviceability that had made the 12-valve legendary.
The contrast became even more pronounced as emissions regulations continued to tighten.
The 24-valve ISB introduced electronic control and tighter emissions calibration, while later Cummins engines added exhaust gas recirculation, diesel particulate filters, and SCR systems.
These systems made them cleaner but more complex, requiring regular maintenance and expensive repairs, often leaving trucks stranded when they malfunctioned.
In contrast, 12-valve engines continue to operate with minimal maintenance.
Trucks with original 12-valve engines are still in daily use, pulling trailers and earning their keep.
Many have accumulated mileage that would have destroyed lesser engines multiple times over.
This longevity has created a unique situation in the used truck market.
High-mileage 12-valve trucks often command higher prices than newer trucks with more advanced engines.
Buyers are willing to pay premium prices for the mechanical simplicity and proven reliability of the 12-valve platform.
The engine’s reputation has also influenced Cummins’ modern marketing strategies.
Despite producing engines with significantly more power and better fuel economy, Cummins still references the legacy of the 12-valve in their advertising.
The company understands that the 12-valve represents a golden age of diesel reliability that resonates with their core customer base.
Restoration and preservation of 12-valve trucks have become a cottage industry.
Specialty shops focus exclusively on rebuilding and maintaining these engines, and parts suppliers continue to manufacture components for engines that haven’t been produced in over two decades.
This aftermarket support ensures that 12-valve engines can continue operating indefinitely.
The influence of the 12-valve extends beyond Cummins itself.
Other diesel manufacturers have attempted to recapture the simplicity and reliability that made the 12-valve legendary, though none have achieved the same cult status.
The engine represents a benchmark for diesel reliability that continues to influence engine design decisions today.
Perhaps most importantly, the 12-valve Cummins proved that there was a significant market for serious diesel power in pickups.
This proof of concept ignited the modern diesel truck wars, prompting Ford and GM to respond with their own high-output diesels.
Today’s diesel pickups produce over 1,000 lb-ft of torque and can tow over 35,000 lbs, capabilities that trace their lineage directly back to that first 12-valve Cummins.
The 12-valve also established diesel performance as a legitimate automotive enthusiast segment.
The engine’s modification potential and mechanical accessibility created a generation of diesel enthusiasts who continue to drive innovation in the diesel performance industry.
Today, more than three decades after its introduction, the 12-valve Cummins remains the gold standard for diesel reliability.
It symbolizes an era when engines were built to last rather than to meet quarterly profit targets or emissions regulations.
In a world of increasingly complex and fragile automotive technology, the 12-valve stands as a monument to the power of mechanical simplicity and overengineering.
